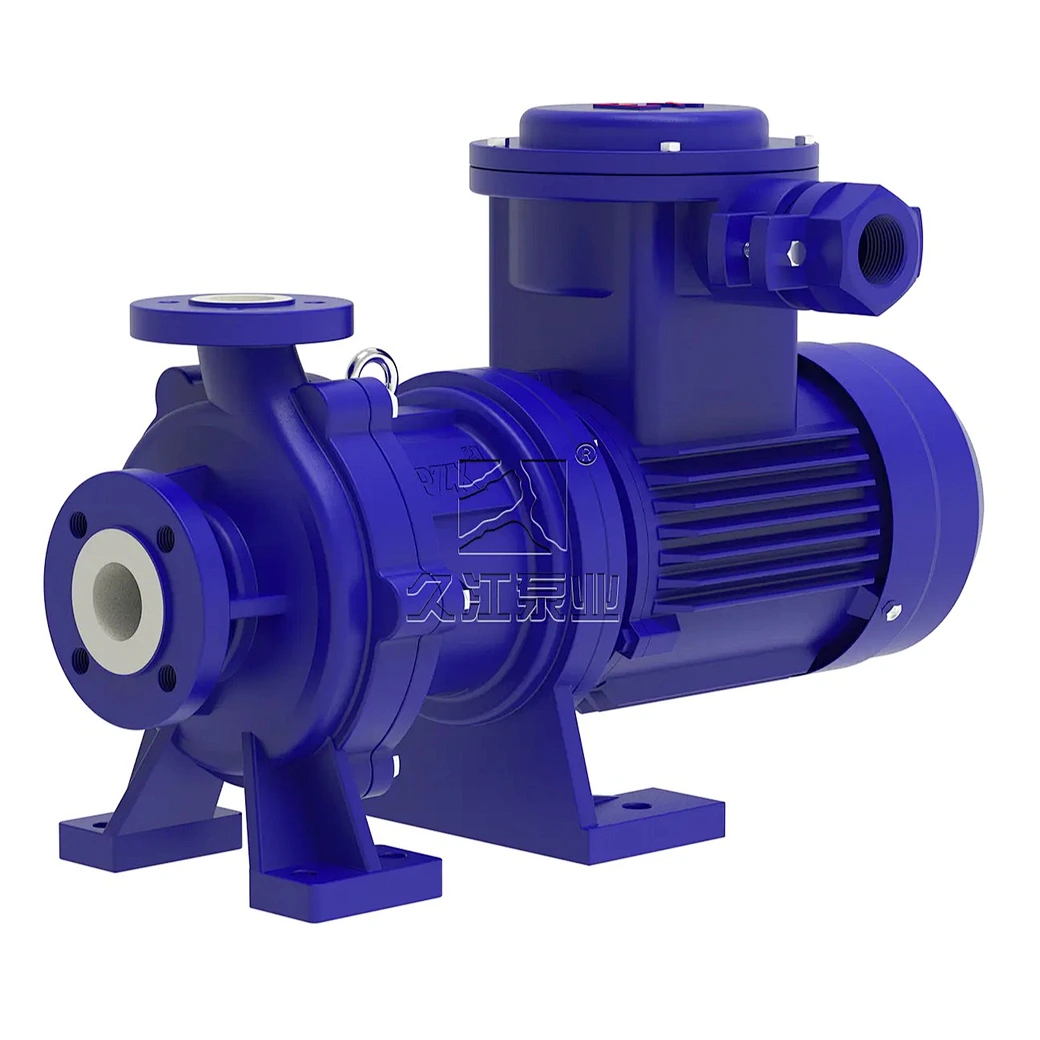

CQB-F compact fluoroplastic magnetic pump front view

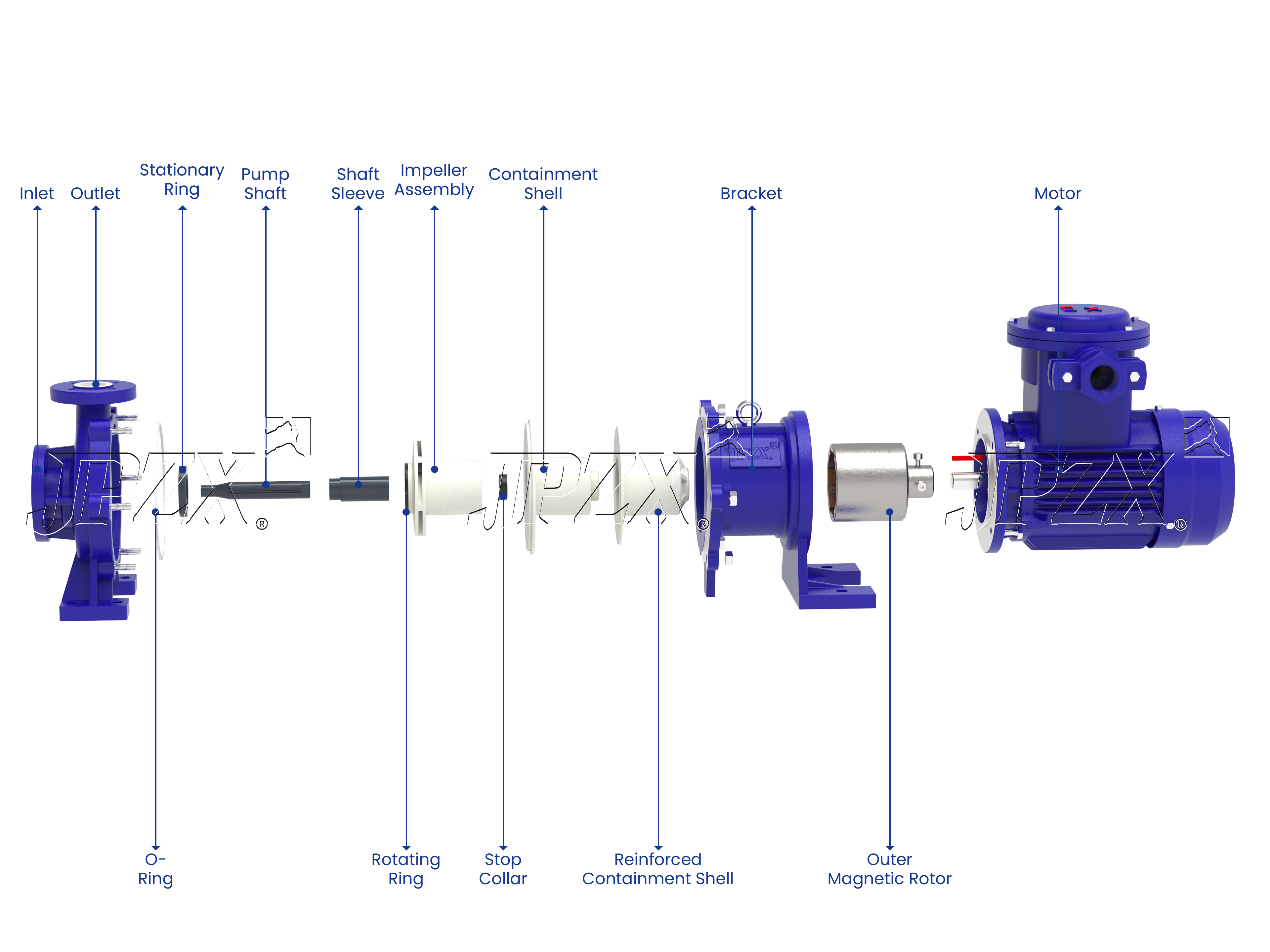

CQB-F Fluoroplastic Lined Magnetic Drive Pump(Without Baseplate)

Model NO. CQB-F Fluoroplastic Lined Magnetic Drive Pump (Without Baseplate)

Pump material: fluoroplastics

Inlet & Outlet Size: DN25 - DN125

Flow Range: 0.7 – 160 m³/h

Head Range: 18 – 82 m

Motor Power : 1.5 – 37 kW

Speed: 2900r/min

Voltage: 220V / 380V / 415V / 440V / 460V

What is CQB-F Fluoroplastic Lined Magnetic Drive Pump (Without Baseplate)？

The CQB-F fluoroplastic lined magnetic drive pump (without baseplate) is industrial equipment manufactured using materials such as fluoroplastic alloy F46/PFA. Operating as a leak-free magnetic drive pump, it achieves non-contact torque transmission through permanent magnet coupling. When the electric motor rotates the outer magnetic steel assembly, magnetic flux penetrates the isolation sleeve to drive the inner magnetic assembly and impeller synchronously. Designed as an efficient close coupled pump, this compact chemical transfer pump is applied across petrochemical, pharmaceutical, and electroplating industries to convey highly corrosive media including acids, alkalis, and oxidants.

Applications & Features

Wide Applications:Thismagnetic drive pump is widely utilized across industries such as petrochemicals, acid and alkali production, non-ferrous metal metallurgy, automotive pickling processes, rare earth separation, pesticides, dyes, pharmaceuticals, papermaking, electroplating, and radio manufacturing. Functioning as a high-efficiency close coupled pump, it serves as a dependable chemical transfer pump for aggressive fluids without risk of external environmental contamination.

Product Features:

Zero Leakage & High Efficiency: Eliminates conventional shaft seals by utilizing magnetic coupling to guarantee zero leakage. Its close coupled pump design removes rolling bearing friction losses to ensure quiet, energy-efficient operation.
Compact & Flexible Configuration: Features a reduced footprint for easy installation in tight spaces. This magnetic drive pump allows flexible power pairing and configuration to match actual working conditions cost-effectively.
Premium Materials: Built with a protective metal outer casing internally lined with fluoroplastics and composite materials, ensuring this chemical transfer pump delivers high and low-temperature resistance, anti-aging durability, and broad corrosion resistance without toxic chemical decomposition.
Drive Device: Utilizes a magnetic coupling mounted directly onto the motor shaft to maintain a safe, compact, and energy-saving close coupled pumpassembly.

Model	Flow Rate (m³/h)	Head (m)	Efficiency (%)	Motor Power (kW)	Inlet x Outlet (mm)	NPSHr (m)	Weight (kg)
CQB32-25-130F	2	21	20	1.5	32×25	2.5	55
	3.2	20	25	1.5	32×25	2.5	55
	5.5	18	30	1.5	32×25	2.5	55
CQB32-25-150F	2	26	20	1.5	32×25	2.5	55
	3.2	25	25	1.5	32×25	2.5	55
	5.5	22	30	1.5	32×25	2.5	55
CQB40-25-130F	4	21	25	2.2	40×25	3.0	55
	6	20	32	2.2	40×25	3.0	55
	8	18	33	2.2	40×25	3.0	55
CQB40-25-150F	4	26	25	2.2	40×25	3.0	55
	6	25	30	2.2	40×25	3.0	55
	8	23	33	2.2	40×25	3.0	55
CQB40-25-160F	4	31	25	3	40×25	3.0	80
	6	30	30	3	40×25	3.0	80
	8	28	33	3	40×25	3.0	80
CQB40-25-170F	4	36	25	3	40×25	3.0	80
	6	35	30	3	40×25	3.0	80
	8	33	32	3	40×25	3.0	80
CQB40-25-180F	4	40	25	4	40×25	3.0	85
	6	40	28	4	40×25	3.0	85
	8	37	29	4	40×25	3.0	85
CQB40-25-185F	0.7	40	7	3	40×25	3.0	80
	1	40	10	3	40×25	3.0	80
	2	38	15	3	40×25	3.0	80
CQB40-25-190F	4	46	20	5.5	40×25	3.0	115
	6	45	23	5.5	40×25	3.0	115
	8	42	30	5.5	40×25	3.0	115
CQB40-25-200F	4	51	20	5.5	40×25	3.0	115
	6	50	23	5.5	40×25	3.0	115
	8	48	30	5.5	40×25	3.0	115
CQB50-32-130F	7	22	28	2.2	50×32	3.5	55
	12.5	20	42	2.2	50×32	3.5	55
	15	18	46	2.2	50×32	3.5	55
CQB50-32-150F	7	26	28	4	50×32	3.5	85
	12.5	25	37	4	50×32	3.5	85
	15	27	39	4	50×32	3.5	85
CQB50-32-160F	7	33	30	4	50×32	3.5	115
	12.5	32	39	4	50×32	3.5	115
	15	29	41	4	50×32	3.5	115
CQB50-32-170F	8	36	23	5.5	50×32	3.5	115
	15	35	36	5.5	50×32	3.5	115
	20	32	39	5.5	50×32	3.5	115
CQB50-32-180F	8	41	28	5.5	50×32	3.5	115
	15	40	40	5.5	50×32	3.5	115
	20	35	43	5.5	50×32	3.5	115
CQB50-32-190F	7	46	20	7.5	50×32	3.5	115
	12.5	45	31	7.5	50×32	3.5	115
	15	42	38	7.5	50×32	3.5	115
CQB50-32-200F	7	51	20	7.5	50×32	3.5	115
	12.5	50	31	7.5	50×32	3.5	115
	15	47	38	7.5	50×32	3.5	115
CQB65-50-130F	15	21	34	4.0	65×50	4.0	85
	30	20	48	4.0	65×50	4.0	85
	35	18	48	4.0	65×50	4.0	85
CQB65-50-150F	15	26	35	5.5	65×50	4.0	115
	30	25	52	5.5	65×50	4.0	115
	35	22	50	5.5	65×50	4.0	115
CQB65-50-160F	15	32	34	7.5	65×50	4.0	120
	30	30	54	7.5	65×50	4.0	120
	35	27	52	7.5	65×50	4.0	120
CQB65-50-170F	15	37	32	7.5	65×50	4.0	120
	30	35	52	7.5	65×50	4.0	120
	35	32	50	7.5	65×50	4.0	120
CQB65-40-180F	15	42	25	11	65×40	4.0	215
	25	40	37	11	65×40	4.0	215
	35	37	42	11	65×40	4.0	215
CQB65-40-190F	15	47	27	11	65×40	4.0	215
	25	45	39	11	65×40	4.0	215
	35	42	44	11	65×40	4.0	215
CQB65-40-200F	15	52	25	11	65×40	4.0	215
	25	50	37	11	65×40	4.0	215
	35	47	42	11	65×40	4.0	215
CQB65-40-250F	15	82	36	18.5	65×40	4.0	315
	25	80	47	18.5	65×40	4.0	315
	35	75	53	18.5	65×40	4.0	315
CQB80-65-130F	35	23	48	7.5	80×65	4.5	120
	60	20	54	7.5	80×65	4.5	120
	70	17	50	7.5	80×65	4.5	120
CQB80-65-150F	35	30	50	7.5	80×65	4.5	120
	60	25	60	7.5	80×65	4.5	120
	70	20	53	7.5	80×65	4.5	120
CQB80-65-160F	35	34	53	11	80×65	4.5	215
	60	30	62	11	80×65	4.5	215
	70	25	53	11	80×65	4.5	215
CQB80-65-170F	35	38	50	11	80×65	4.5	215
	60	35	60	11	80×65	4.5	215
	70	29	51	11	80×65	4.5	215
CQB80-50-180F	35	42	48	15	80×50	4.5	225
	50	40	53	15	80×50	4.5	225
	60	35	54	15	80×50	4.5	225
CQB80-50-190F	35	47	50	18.5	80×50	4.5	240
	50	45	55	18.5	80×50	4.5	240
	60	40	56	18.5	80×50	4.5	240
CQB80-50-200F	35	52	50	18.5	80×50	4.5	240
	50	50	55	18.5	80×50	4.5	240
	60	47	56	18.5	80×50	4.5	240
CQB80-50-250F	35	82	45	30	80×50	4.5	390
	50	80	52	30	80×50	4.5	390
	60	77	53	30	80×50	4.5	390
CQB100-80-130F	70	22	60	15	100×80	5.0	225
	100	20	65	15	100×80	5.0	225
	120	17	64	15	100×80	5.0	225
CQB100-80-160F	60	34	50	18.5	100×80	5.0	260
	100	32	58	18.5	100×80	5.0	260
	120	30	60	18.5	100×80	5.0	260
CQB100-80-180F	60	42	50	30	100×80	5.0	435
	100	40	60	30	100×80	5.0	435
	120	35	62	30	100×80	5.0	435
CQB100-65-200F	60	52	52	30	100×65	4.5	390
	100	50	61	30	100×65	4.5	390
	120	46	64	30	100×65	4.5	390
CQB125-100-160F	80	22	50	30	125×100	6.0	660
	120	20	56	30	125×100	6.0	660
	140	15	56	30	125×100	6.0	660
CQB125-100-200F	80	40	50	37	125×100	6.0	680
	120	37	54	37	125×100	6.0	680
	160	32	56	37	125×100	6.0	680

Q1: What is the main structural difference and advantage of the version without baseplate compared to the baseplate version?

Saves floor space and installation cost. The model without baseplate features a direct-mounted, compact design. It allows engineers to integrate the pump directly into tight machinery skids or custom mounting plates without adding extra baseplate weight and bulk.

Q2: Does the lack of a common baseplate affect alignment between the motor and the pump chamber?

No. The pump uses a close-coupled rigid frame structure. The pump casing, magnetic bracket, and motor are factory-aligned via precision machined flanges, ensuring stable coaxial operation without manual shaft alignment on site.

Q3: How do you prevent piping stress from damaging the fluoroplastic lining on this base-less version?

Use flexible expansion joints (bellows). Because the pump relies on its own mounting feet, suction and discharge pipe loads should be anchored independently to external pipe supports, with flexible joints installed at the flanges to absorb pipeline thermal expansion and vibration.

Q4: Is this model lighter for international freight shipping costs?

Yes. Eliminating the heavy cast-iron baseplate significantly reduces the overall gross weight and packaging volume, making air/sea freight costs noticeably lower for overseas shipments.
