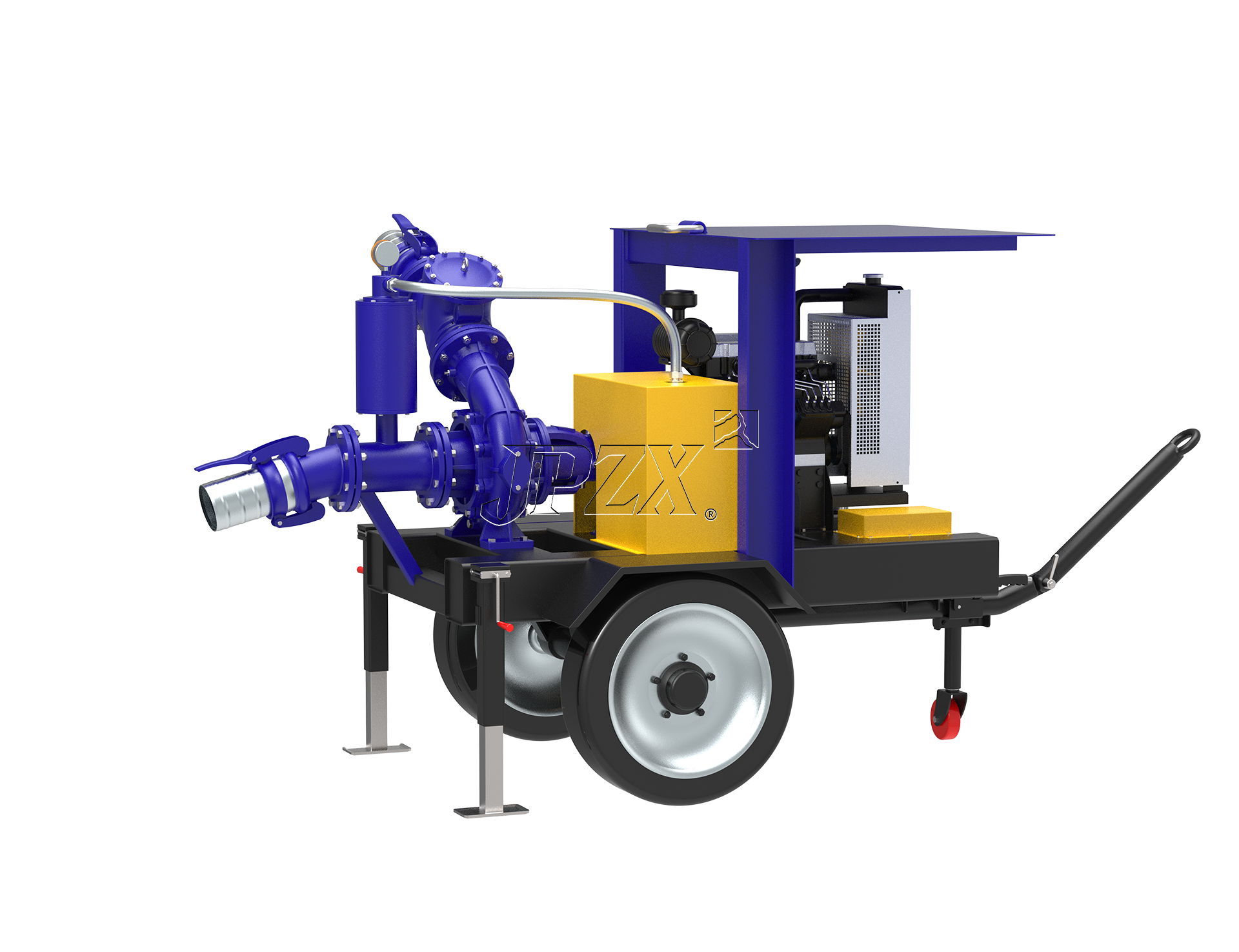

JPW Diesel Engine Non-Clogging Sewage Pump

The JPW Series diesel trash pump is our latest generation of heavy-duty diesel pump systems designed for demanding dewatering jobs. As a high-performance trailer mounted unit, this diesel trash pump is equipped with an automatic rotary vane vacuum assist system. It eliminates the need for manual initial priming—simply start the diesel pump with one button for rapid dry self-priming. Featuring strong suction power, low maintenance, and exceptional mobility, this trailer mounteddiesel trash pump is widely used in mining, municipal drainage, emergency flood relief, and industrial wastewater management.

Applications

• General Fluid & Wastewater: Stormwater discharge, municipal drainage, and general wastewater handling using a reliable diesel pump.

• Municipal & Infrastructure: Construction site dewatering, bypass pumping, and flood relief operations with a trailer mounted mobile system.

• Industrial Wastewater: Heavy-duty pumping for chemical, power, mining, paper, and food processing plants requiring a robust diesel trash pump.

• Specialized Liquids: Non-flammable, heavily polluted sewage, river aquaculture, and water purification sludge managed efficiently by this diesel pump.

Key Features & Advantages

1. Vacuum-Assisted Self-Priming:High-efficiencydiesel trash pump with a vacuum assist system for rapid dry priming without liquid pre-filling.

2. Integrated Base Frame & Fuel Tank: Compact design with a heavy-duty frame and high-capacity fuel tank for extended diesel pumpruntime.

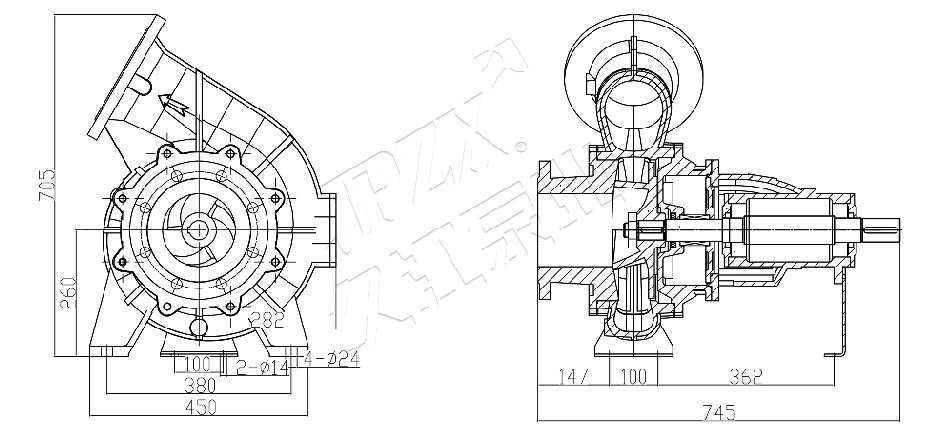

3. Non-Clogging Open Impeller: Wide-flow open impeller prevents clogging; standard SS304 material ensures superior wear and corrosion resistance.

4. Premium SKF Bearings: Equipped with high-precision SKF bearings for low-vibration operation and extended diesel trash pump service life.

5. Pin-Elastic Coupling: Flexible coupling protects internal drive components and simplifies maintenance.

6. Bauer-Type Quick Couplings: Rapid hose connections with leak-tight sealing for quick site setup.

7. Easy-Access Inspection Cover: Hand-hole design allows quick internal inspection without dismantling the diesel pumpcasing.

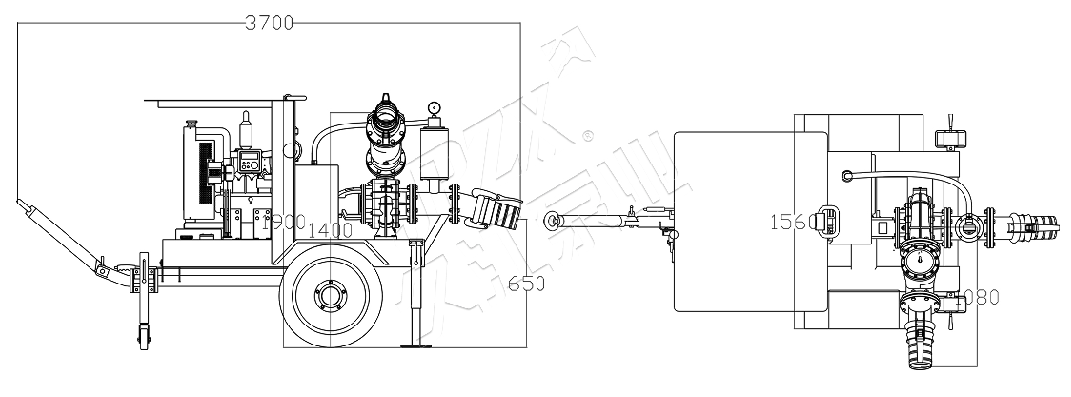

8. Heavy-Duty Trailer Base:Heavy-dutytrailer mounted chassis with shock-absorbing torsion axle, support legs, and rain canopy for fast road transport.

9. Reliable Diesel Drive System: Powered by premium engines, this trailer mounteddiesel trash pump features automatic shutdown protection against overspeed and low oil pressure.
