ZW self priming non clogging sewage pump with electric motor

ZW electric self priming trash pump side view

ZW series self priming centrifugal sewage pump assembly

ZW self priming non clogging sewage pump head bare shaft

ZW Self-Priming Non-Clogging Sewage Pumps

Model NO. ZW Self-Priming Non-Clogging Sewage Pumps

Pump material：Cast Iron, Stainless Steel, Duplex Steel

Inlet & Outlet Size：DN25-DN300

Flow Range: 8 - 800 m³/h

Head Range: 14 - 80 m

Motor Power: 1.5 - 75 kW

Self-Priming Lift : 5 m

Speed : 1450 r/min / 2900 r/min

Power Supply: 220V / 380V / 415V / 440V / 460V, 50Hz / 60Hz

What is ZW Self-Priming Non-Clogging Sewage Pumps？

The ZW series self priming pumpcombinesself priming water pump functionality and non-clogging performance in one compact unit. Designed with an axial return outer-mixture system and a unique impeller channel, this heavy-duty sewage pump requires no foot valve or additional priming water before starting. As a highly efficient self priming water pump, it easily handles liquids containing large solid particles, long fiber impurities, and municipal wastewater.

Key Features:

Easy to Use:Excellentself priming pump capability with no foot valve or manual priming needed.
Non-Clog Design: As a reliable sewage pump, it smoothly pumps fluids with large solids and long fibers.
Simple & Durable: Simple structure and low maintenance make this self priming water pump energy-efficient and durable.
Cost-Effective: Outstanding performance as an industrial sewage pump with competitive pricing for budget-conscious buyers.

Wide Applications:This versatile self priming pump is widely used in municipal sewage treatment, pond farming, paper making, textiles, food processing, chemicals, power plants, fiber pulp transfer, and mixed liquid suspensions.

ZW series self-priming non-clogging sewage pump primarily consists of pump casing, impeller, back cover, mechanical seal, pump shaft, bearing housing, inlet valve, gas-liquid separation tube, priming valve, suction nozzle, and discharge nozzle.

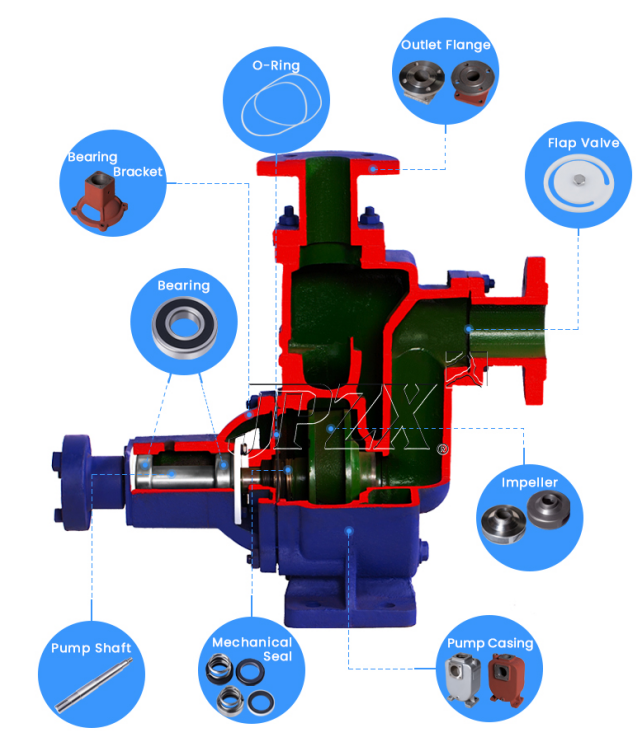

For the structural details of the pump, please refer to the sectional drawing.

Operating Principle

The pump casing is designed with a liquid storage chamber, which connects to the working cavity via the upper backflow hole and the lower circulation hole, forming an axial backflow external-mixing system. After the pump stops running, a specific volume of liquid remains stored within the pump internal cavity.

Upon pump startup, the stored liquid inside the pump is driven by the impeller rotation, entraining air and throwing it upward. The liquid recirculates back to the working cavity through the internal mesh grid of the gas-liquid separation tube, while the air is discharged out of the pump, generating a specific vacuum inside the pump to achieve self-priming.

Since a one-way check valve is installed at the pump suction inlet, it can be restarted instantly for subsequent operations without requiring repeat water priming.

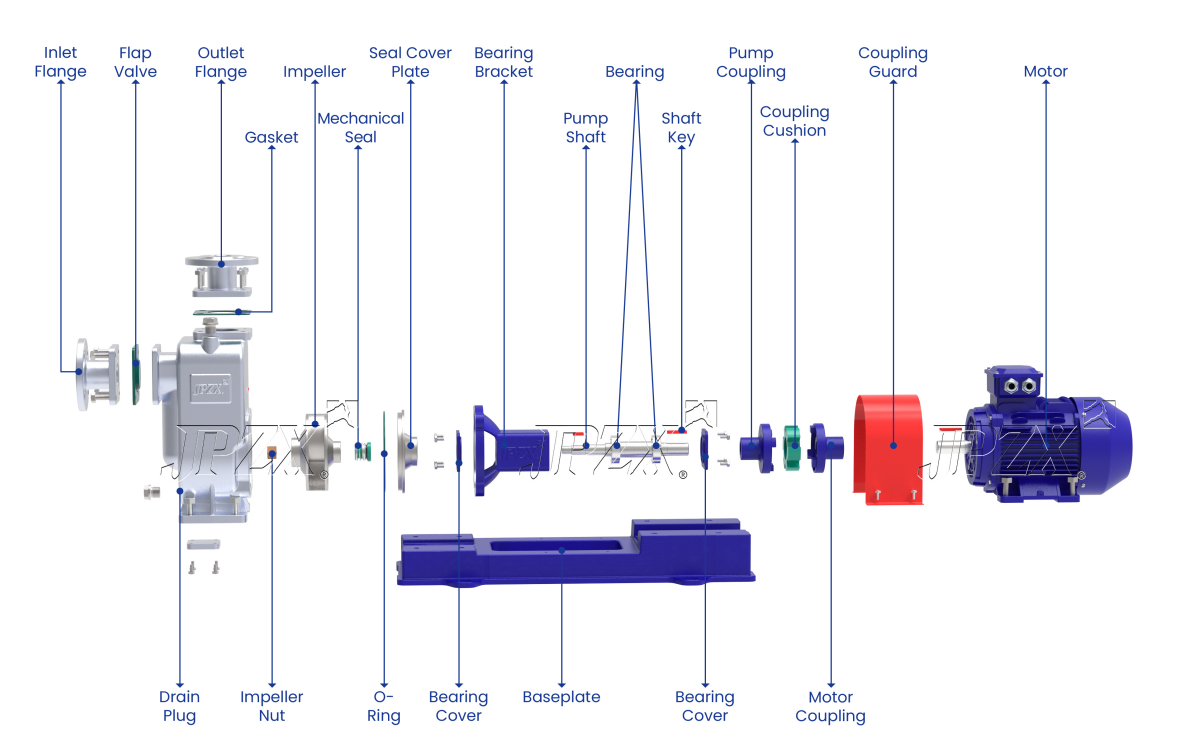

Self Priming Sewage Pump Sectional Drawing and Spare Parts Structure - JPZX ZW Self-Priming Sewage Pump Exploded View and Structure Diagram | JPZX

Model meaning

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Model	Inlet/Outlet Dia. (mm)	Flow Rate (m³/h)	Head (m)	Power (kW)	Speed (r/min)	Suction Lift (m)
25ZW(L)8-15	25/25	8	15	1.5-2	2900	5
32ZW(L)10-20	32/25	10	20	2.2-2	2900	5
32ZW(L)9-30	32/25	9	30	3-2	2900	5
40ZW(L)20-15	40/32	20	15	2.2-2	2900	5
40ZW(L)10-20	40/32	10	20	2.2-2	2900	5
40ZW(L)15-30	40/32	15	30	3-2	2900	5
50ZW(L)10-20	50/40	10	20	2.2-2	2900	5
50ZW(L)20-15	50/40	20	15	2.2-2	2900	5
50ZW(L)18-22	50/40	18	22	3-2	2900	5
50ZW(L)15-30	50/40	15	30	3-2	2900	5
50ZW(L)20-35	50/40	20	35	5.5-2	2900	5
50ZW(L)20-40	50/40	20	40	7.5-2	2900	5
50ZW(L)20-50	50/40	20	50	11-2	2900	5
65ZW(L)30-18	65/65	30	18	4-2	2900	5
65ZW(L)30-18D	65/65	30	18	4-4	1450	5
65ZW(L)25-30	65/65	25	30	5.5-2	2900	5
65ZW(L)25-40	65/65	25	40	7.5-2	2900	5
65ZW(L)25-50	65/65	25	50	11-2	2900	5
65ZW(L)40-25	65/65	40	25	7.5-2	2900	5
65ZW(L)65-25	65/65	65	25	7.5-2	2900	5
80ZW(L)40-16	80/65	40	16	4-2	2900	5
80ZW(L)40-16D	80/65	40	16	4-4	1450	5
80ZW(L)50-15	80/65	50	15	5.5-2	2900	5
80ZW(L)65-25	80/65	65	25	7.5-2	2900	5
80ZW(L)50-30	80/65	50	30	11-2	2900	5
80ZW(L)80-35	80/65	80	35	15-2	2900	5
80ZW(L)40-50	80/65	40	50	18.5-2	2900	5
80ZW(L)50-60	80/65	50	60	22-2	2900	5
100ZW(L)80-20	100/80	80	20	7.5-4	1450	5
100ZW(L)100-15	100/80	100	15	7.5-4	1450	5
100ZW(L)100-20	100/80	100	20	11-4	1450	5
100ZW(L)100-30	100/80	100	30	22-2	2900	5
100ZW(L)80-45	100/80	80	45	30-2	2900	5
100ZW(L)80-60	100/80	80	60	37-2	2900	5
100ZW(L)80-80	100/80	80	80	45-2	2900	5
125ZW(L)120-20	125/125	120	20	15-4	1450	5
150ZW(L)180-14	150/125	180	14	15-4	1450	5
150ZW(L)150-20	150/125	150	20	15-4	1450	5
150ZW(L)180-20	150/125	180	20	18.5-4	1450	5
150ZW(L)180-30	150/125	180	30	30-4	1450	5
150ZW(L)180-35	150/125	180	35	37-4	1450	5
150ZW(L)180-38	150/125	180	38	45-4	1450	5
150ZW(L)180-45	150/125	180	45	55-4	1450	5
200ZW(L)280-14	200/150	280	14	22-4	1450	5
200ZW(L)280-20	200/150	280	20	37-4	1450	5
200ZW(L)280-25	200/150	280	25	45-4	1450	5
200ZW(L)280-28	200/150	280	28	55-4	1450	5
250ZW(L)420-14	250/200	420	14	45-4	1450	5
250ZW(L)420-20	250/200	420	20	55-4	1450	5
300ZW(L)800-14	300/250	800	14	55-4	1450	5
300ZW(L)800-20	300/250	800	20	75-4	1450	5

Complete Performance Curves & Dimensions Table: For full technical specifications, detailed performance curves, and precise dimensional drawings of all models, please download the complete product manual.

Q1: What is the main difference between the ZW pump and a regular self-priming clean water pump?

A: Regular self-priming pumps are designed only for clean water; solids or fibers will instantly clog their impellers. The ZW Series is specially designed for liquids containing particulate pollutants or fibrous contaminants. It features a wider, non-clogging impeller channel and an external-mixing axial backflow system, allowing solid particles, sludge, and fibrous trash to pass through without jamming.

Q2: What is the maximum solid size and fiber length the ZW pump can handle?

A: The Zw series comes in three designs: semi-open impeller design, fully open impeller design, and enclosed impeller design.

Solid Particles: Can pass spherical solids up to 50% of the pump's discharge diameter

Long Fibers: Can handle fibrous impurities up to 150% of the discharge diameter without wrapping around the shaft.

Q3: Can the ZW pump handle fuel, oils, or highly corrosive chemicals?

A: Yes, it can be used, but it is not recommended. The ZW series is better suited for solid-laden sewage and tends to operate with higher noise levels. If you need to transfer oils, we recommend using our ZX or CYZ-A series pumps, fitted with Nitrile Rubber (NBR) seals and an explosion-proof motor.

For Highly Corrosive Chemicals: Standard cast iron will corrode quickly. We recommend choosing 304/316 stainless steel (indicated by model suffix 'P') or duplex stainless steel, which offer excellent resistance against acidic and alkaline industrial wastewater corrosion.

Q4: How deep can the ZW pump suck liquid, and does it need a foot valve at the bottom of the pit?

A: The maximum vertical suction lift for the ZW series is 5 meters. No foot valve is required at the suction pipe inlet. You only need to pour priming water into the pump casing once during initial installation; after that, it automatically self-primes on every start.

Q5: In what exact applications and industries is the ZW pump mostly used?

A: The ZW series is an all-around workhorse for heavy-duty dirty fluid transfer:

Municipal & Civil: Sewage collection pits, rainwater drainage, and septic tank pumping.

Industrial Wastewater: Textile dyeing, paper pulp transfer, food processing washdown, and tannery effluent.

Agriculture & Aquaculture: Livestock manure pit pumping and fish pond sediment cleaning.

Q6: I'm not sure which ZW size to buy. How do I match my flow and total head requirement?

A: Look at the model code:

ZW [Inlet Size] - [Flow Rate m³/h] - [Head Meters].

For example, ZW80-40-16 means: 80mm (3-inch) port size, 40m³/h flow, and 16 meters head.

Simply tell us your required hourly volume and pumping distance/height, and our engineers will select the precise motor power (1.5 kW – 75 kW) for you within 48 hours.
