ZX self priming centrifugal pump with electric motor

ZX series electric self priming water pump side view

ZX duplex steel self priming centrifugal pump assembly

ZX self priming pump head bare shaft DN25 DN300

ZX Self-Priming Centrifugal Pumps

Model NO. ZX Self-Priming Centrifugal Pumps

Pump material：Cast Iron, Stainless Steel, Duplex Steel

Inlet & Outlet Size：DN25-DN300

Flow Range: 3.2 - 600 m³/h

Head Range: 12 - 80 m

Motor Power: 1.1 - 110 kW

Self-Priming Lift : 5 m

Speed: 1450 r/min / 2900 r/min

Power Supply: 220V / 380V / 415V / 440V / 460V, 50Hz / 60Hz

What is ZX Self-Priming Centrifugal Pump？

The ZX Series close-coupled self priming pump manufactured by our factory is an energy-saving water pump developed based on advanced technology and structural improvements. Featuring a compact direct-connection design, this high-performance self priming pump offers easy operation, smooth running, simple maintenance, high efficiency, and long service life. As one of the most reliable centrifical water pumps for clean water and industrial fluids, this water pump requires no foot valve in the pipeline; it only needs initial priming liquid inside the pump body before starting, simplifying piping systems significantly.

Application Areas

Industrial & Municipal Applications:
Idealself priming pump for municipal drainage, construction dewatering, fire protection, mining flush, and equipment cooling. These versatile centrifical water pumps are also widely used in chemical processing, pharmaceuticals, dyestuffs, printing, brewing, power plants, electroplating, and papermaking industries.
Agricultural & Irrigation:
Thiswater pump can be equipped with rotary sprinklers to spray water into a fine mist, making it an excellent water pump choice for farms, nurseries, orchards, and tea plantations.
Compatible Liquids:
As multi-purpose centrifical water pumps, they are suitable for clean water, seawater, corrosive chemical fluids (acidic or alkaline), and general slurries (medium viscosity < 100 cP, solid content up to 30%).

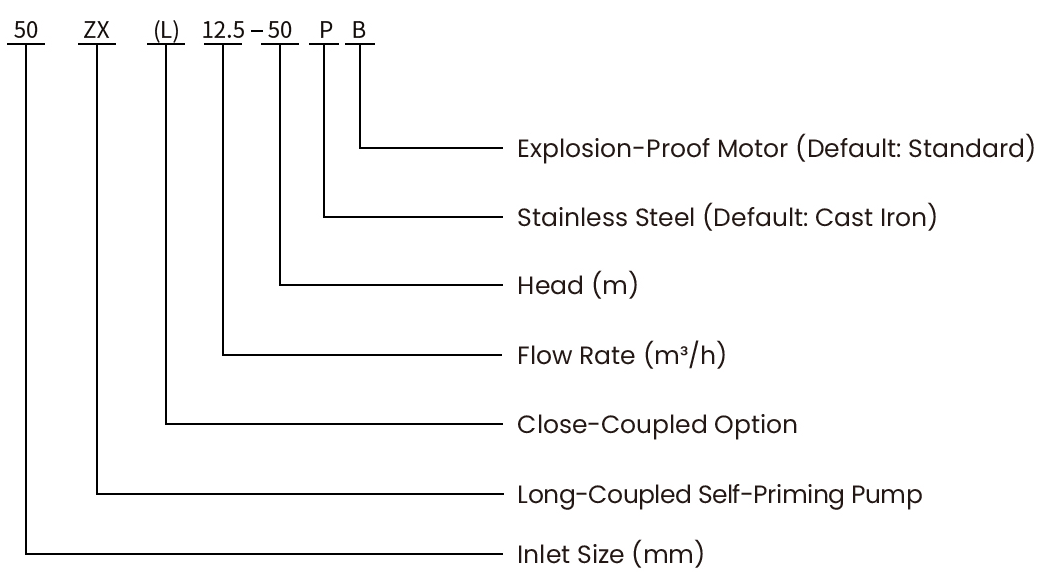

Model Meaning

ZX Self-Priming Centrifugal Pump Model Designation and Nomenclature Chart | JPZX

Model	Inlet/Outlet Dia. (mm)	Flow Rate (m³/h)	Head (m)	Power (kW)	Speed (r/min)	Suction Lift (m)
25ZX(L)3.2-20	25/25	3.2	20	1.1-2	2900	5
25ZX(L)3.2-32	25/25	3.2	32	1.5-2	2900	5
32ZX(L)3.2-20	32/32	3.2	20	1.1-2	2900	5
32ZX(L)3.2-32	32/32	3.2	32	1.5-2	2900	5
32ZX(L)3.2-50	32/32	3.2	50	3-2	2900	5
40ZX(L)6.3-20	40/40	6.3	20	1.5-2	2900	5
40ZX(L)6.3-32	40/40	6.3	32	2.2-2	2900	5
40ZX(L)10-40	40/40	10	40	4-2	2900	5
40ZX(L)6.3-50	40/40	6.3	50	4-2	2900	5
50ZX(L)15-12	50/50	15	12	1.5-2	2900	5
50ZX(L)18-20	50/50	18	20	2.2-2	2900	5
50ZX(L)12.5-32	50/50	12.5	32	3-2	2900	5
50ZX(L)20-30	50/50	20	30	4-2	2900	5
50ZX(L)14-35	50/50	14	35	4-2	2900	5
50ZX(L)10-40	50/50	10	40	4-2	2900	5
50ZX(L)12.5-50	50/50	12.5	50	5.5-2	2900	5
50ZX(L)20-75	50/50	20	75	11-2	2900	5
65ZX(L)30-15	65/65	30	15	3-2	2900	5
65ZX(L)25-32	65/65	25	32	5.5-2	2900	5
65ZX(L)25-32	65/65	25	32	5.5-2	2900	5
65ZX(L)25-50	65/65	25	50	7.5-2	2900	5
65ZX(L)25-70	65/65	25	70	15-2	2900	5
80ZX(L)35-13	80/80	35	13	3-2	2900	5
80ZX(L)43-17	80/80	43	17	4-2	2900	5
80ZX(L)50-20	80/80	50	20	5.5-2	2900	5
80ZX(L)40-22	80/80	40	22	5.5-2	2900	5
80ZX(L)50-32	80/80	50	32	7.5-2	2900	5
80ZX(L)60-40	80/80	60	40	11-2	2900	5
80ZX(L)60-70	80/80	60	70	22-2	2900	5
100ZX(L)80-15	100/100	80	15	7.5-2	2900	5
100ZX(L)100-20	100/100	100	20	11-2	2900	5
100ZX(L)100-32	100/100	100	32	15-2	2900	5
100ZX(L)100-32	100/100	100	32	15-2	2900	5
100ZX(L)100-40	100/100	100	40	18.5-2	2900	5
100ZX(L)100-50	100/100	100	50	22-2	2900	5
100ZX(L)100-65	100/100	100	65	30-2	2900	5
100ZX(L)70-75	100/100	70	75	30-2	2900	5
150ZX(L)150-20	150/150	150	20	18.5-2	2900	5
150ZX(L)150-32	150/150	150	32	22-2	2900	5
150ZX(L)150-40	150/150	150	40	37-2	2900	5
150ZX(L)170-55	150/150	170	55	45-2	2900	5
150ZX(L)170-65	150/150	170	65	55-2	2900	5
150ZX(L)160-80	150/150	160	80	55-2	2900	5
150ZX(L)200-32	150/150	200	32	30-4	1450	5
150ZX(L)200-40	150/150	200	40	37-4	1450	5
150ZX(L)200-45	150/150	200	45	45-4	1450	5
200ZX(L)350-20	200/200	350	20	37-4	1450	5
200ZX(L)400-32	200/200	400	32	55-4	1450	5
200ZX(L)350-40	200/200	350	40	55-4	1450	5
200ZX(L)350-45	200/200	350	45	75-4	1450	5
200ZX(L)280-63	200/200	280	63	90-4	1450	5
250ZX(L)500-32	250/250	500	32	75-4	1450	5
250ZX(L)400-50	250/250	400	50	90-4	1450	5
300ZX(L)600-32	300/300	600	32	90-4	1450	5
300ZX(L)500-50	300/300	500	50	110-4	1450	5

Q1: Does the ZX pump require manual priming before every start-up?

A：No. You only need to fill the pump casing with water once during the initial installation. The built-in priming chamber and integrated check valve retain sufficient liquid in the pump body. For all subsequent start-ups, the pump automatically vents air and draws fluid within 2 to 3 minutes (depending on piping distance).

Q2: What is the maximum self-priming lift, and can it be increased for deeper suction?

A: The standard ZX pump delivers a rated self-priming lift of 5 meters. For applications requiring deeper suction (up to 7–8 meters) or faster priming cycles, we can integrate a vacuum-assisted system or a priming tank.

Engineering Note: Keep suction piping horizontally short, limit elbows to ≤2, and ensure 100% airtight flanged joints to prevent vacuum loss.

(Suitable for all self-priming pump series)

Q3: What fluid types and particle concentrations can the ZX pump process?

A: Designed for clean water, industrial wastewater, and light chemicals, the ZX pump handles solid particles up to ≤ 50% of impeller channel clearance with a maximum particle concentration of 1.2% by volume.

For High Solids: If your fluid contains thick sludge, heavy slurry, or long fibrous debris, we recommend our ZW Non-Clogging Self-Priming Sewage Pump.

Q4: What material grades and seal configurations are available for corrosive fluids?

A: We provide standard Cast Iron for general water transfer, as well as Stainless Steel 304, 316, 316L, and Duplex Stainless Steel (2205,2507) for aggressive acid, alkali, or seawater applications. Depending on the chemical concentration and maximum operating temperature of 120°C, various mechanical seal solutions can be customized, including cartridge seals and double mechanical seals.

Q5: How does the pump design simplify on-site maintenance and reduce downtime?

A: Featuring a Back Pull-Out modular design, the rotating assembly (shaft, bearings, impeller, and mechanical seal) can be removed for inspection or replacement without disconnecting the suction/discharge piping. This reduces routine maintenance time by up to 60%, significantly lowering total cost of ownership (TCO).
