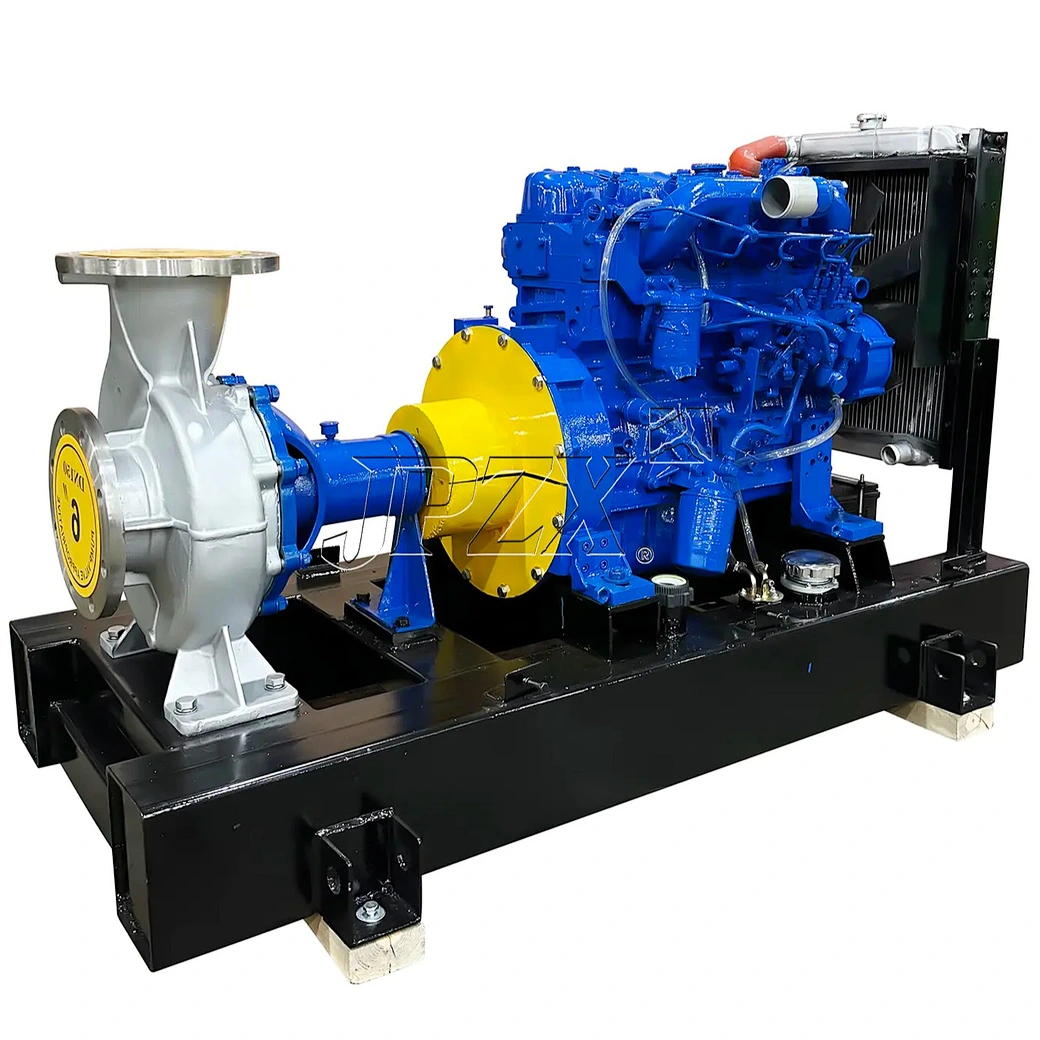

JJC-IHW Diesel Engine Centrifugal Pump
Head Range: 4-125 m
Speed: 1450 r/min, 2900 r/min
Motor Power: 0.22-110kW
Efficiency η : 37-82 %
NPSHr: 2.0-4.5 m
Nominal Impeller Diameter: 116.5-399.5 mm
What is JJC-IHW Diesel Engine Centrifugal Pump？
The JJC-IHW Diesel Engine Centrifugal Pump features a back-pullout design, allowing the pump cover and impeller to be disassembled without removing the suction or discharge piping. The bearing frame houses two ball bearings, lubricated by engine oil or grease. Driven directly by a diesel engine via a flexible coupling, the volute casing, feet, inlet flange, and outlet flange are cast as a single integrated piece.
Applications & Key Features
Pump Type & Working Medium: Horizontal single-stage single-suction end-suction centrifugal pump. Designed for handling clear water or liquids with physical and chemical properties similar to water, free of solid particles.
Primary Applications: Suitable for industrial and agricultural water supply, urban drainage and water distribution, and fire-fighting systems.
Standardization: Designed according to ISO 2858 international standards for performance and dimensions, serving as an energy-efficient centrifugal pump line.
High Versatility & Interchangeability: Features high component standardization across the range. The entire series comprises 140 specifications, utilizing only four shaft sizes and four bearing bracket sizes. Shafts, bearings, shaft seals, and impeller fasteners within the same specification size are fully interchangeable.
Operating Characteristics: Compact, lightweight, stable and reliable performance, good cavitation resistance, low power consumption, easy operation, and convenient maintenance.
 |
|
|
Model |
Speed (r/min) |
Flow Q (m³/h) |
Flow Q (L/s) |
Head H (m) |
Efficiency η (%) |
Shaft Power Pa (kW) |
Motor Power (kW) |
NPSHr (m) |
Nominal Impeller Dia. (mm) |
|
50-32-125 |
2900 |
7.5 / 12.5 / 15 |
2.08 / 3.47 / 4.17 |
20 |
60 |
1.13 |
2.2 |
2.0 |
130 |
|
50-32-125 |
1450 |
3.75 / 6.3 / 7.5 |
1.04 / 1.74 / 2.08 |
5 |
54 |
0.16 |
0.55 |
2.0 |
/ |
|
50-32-125A |
2900 |
6.72 / 11.2 / 13.4 |
1.86 / 3.11 / 3.74 |
16 |
60 |
0.81 |
1.1 |
/ |
116.5 |
|
50-32-125A |
1450 |
3.36 / 5.6 / 5.7 |
0.93 / 1.56 / 1.86 |
4 |
54 |
0.04 |
0.22 |
/ |
/ |
|
50-32-160 |
2900 |
7.5 / 12.5 / 15 |
2.08 / 3.47 / 4.17 |
32 |
54 |
2.02 |
3 |
2.0 |
158 |
|
50-32-160 |
1450 |
3.75 / 6.3 / 7.5 |
1.04 / 1.74 / 2.08 |
8 |
48 |
0.29 |
0.55 |
2.0 |
/ |
|
50-32-160A |
2900 |
7.02 / 11.7 / 14 |
1.95 / 3.25 / 3.9 |
28 |
/ |
/ |
2.2 |
/ |
148 |
|
50-32-160A |
1450 |
3.51 / 5.9 / 7.02 |
0.97 / 1.64 / 1.95 |
7 |
48 |
0.23 |
0.40 |
2.0 |
/ |
|
50-32-160B |
2900 |
6.5 / 10.8 / 13 |
1.81 / 3.01 / 3.62 |
24 |
54 |
1.32 |
1.5 |
/ |
137 |
|
50-32-160B |
1450 |
3.25 / 5.4 / 6.5 |
/ / 1.5 / / |
6 |
48 |
0.18 |
0.22 |
/ |
/ |
|
50-32-200 |
2900 |
7.5 / 12.5 / 15 |
2.08 / 3.47 / 4.17 |
50 |
48 |
3.45 |
5.5 |
2.0 |
198 |
|
50-32-200 |
1450 |
3.75 / 6.3 / 7.5 |
1.04 / 1.74 / 2.08 |
12.5 |
42 |
0.51 |
0.75 |
2.0 |
/ |
|
50-32-200A |
2900 |
7.02 / 11.7 / 14 |
1.95 / 3.25 / 3.9 |
44 |
48 |
2.91 |
4 |
2.0 |
185.5 |
|
50-32-200A |
1450 |
3.51 / 5.9 / 7.02 |
0.97 / 1.64 / 1.95 |
11 |
42 |
0.33 |
0.55 |
2.0 |
/ |
|
50-32-200B |
2900 |
6.53 / 10.8 / 13.1 |
1.81 / 3.01 / 3.62 |
38 |
48 |
2.34 |
3 |
2.0 |
172.5 |
|
50-32-200B |
1450 |
3.26 / 5.4 / 6.53 |
0.91 / 1.5 / 1.81 |
9.5 |
42 |
0.42 |
0.55 |
2.0 |
/ |
|
50-32-250 |
2900 |
7.5 / 12.5 / 15 |
2.08 / 3.47 / 4.17 |
80 |
38 |
7.16 |
11 |
2.0 |
250 |
|
50-32-250 |
1450 |
3.75 / 6.3 / 7.5 |
1.04 / 1.74 / 2.08 |
20 |
32 |
1.07 |
1.5 |
2.0 |
/ |
|
50-32-250A |
2900 |
7.02 / 11.7 / 14 |
1.95 / 3.25 / 3.9 |
70 |
38 |
5.87 |
7.5 |
2.0 |
234 |
|
50-32-250A |
1450 |
3.51 / 5.9 / 6.53 |
0.97 / 1.64 / 1.81 |
17.5 |
32 |
0.88 |
1.5 |
2.0 |
/ |
|
50-32-250B |
2900 |
65.3 / 10.8 / 13.1 |
1.81 / 3.01 / 3.62 |
60 |
38 |
4.65 |
5.5 |
2.0 |
216.5 |
|
50-32-250B |
1450 |
3.26 / 5.4 / 6.53 |
0.91 / 1.5 / 1.81 |
15 |
32 |
0.69 |
1.1 |
2.0 |
/ |
|
65-50-125 |
2900 |
15 / 25 / 30 |
4.17 / 6.94 / 8.33 |
20 |
69 |
1.97 |
3 |
2.0 |
130 |
|
65-50-125 |
1450 |
7.5 / 12.5 / 15 |
2.08 / 3.47 / 4.17 |
5 |
64 |
0.27 |
0.55 |
/ |
/ |
|
65-50-125A |
2900 |
13.4 / 22.4 / 26.9 |
3.73 / 6.22 / 7.46 |
16 |
69 |
1.42 |
2.2 |
2.0 |
116.5 |
|
65-50-125A |
1450 |
6.72 / 11.2 / 13.4 |
1.86 / 3.11 / 3.73 |
4 |
64 |
0.19 |
0.22 |
2.0 |
/ |
|
65-50-160 |
2900 |
15 / 25 / 30 |
4.17 / 6.94 / 8.33 |
32 |
65 |
3.35 |
5.5 |
2.0 |
158.5 |
|
65-50-160 |
1450 |
7.5 / 12.5 / 15 |
2.08 / 3.47 / 4.17 |
8 |
60 |
0.45 |
0.75 |
2.0 |
/ |
|
65-50-160A |
2900 |
14 / 23.4 / 28 |
3.89 / 6.5 / 6.48 |
28 |
65 |
2.73 |
4 |
2.0 |
148 |
|
65-50-160A |
1450 |
7 / 11.7 / 14 |
1.94 / 3.25 / 3.89 |
7 |
60 |
0.37 |
0.55 |
2.0 |
/ |
|
65-50-160B |
2900 |
13 / 21.7 / 26 |
3.62 / 6.03 / 7.23 |
24 |
65 |
2.19 |
3 |
2.0 |
137.5 |
|
65-50-160B |
1450 |
6.5 / 10.8 / 13 |
1.8 / 3.01 / 3.62 |
6 |
60 |
0.29 |
0.40 |
2.0 |
/ |
|
65-40-200 |
2900 |
15 / 25 / 30 |
4.17 / 6.94 / 8.33 |
50 |
60 |
5.67 |
7.5 |
2.0 |
200 |
|
65-40-200 |
1450 |
7.5 / 12.5 / 15 |
2.08 / 3.47 / 4.17 |
12.5 |
55 |
0.77 |
1.1 |
2.0 |
/ |
|
65-40-200A |
2900 |
14 / 23.4 / 28 |
3.89 / 6.5 / 6.48 |
44 |
60 |
4.67 |
5.5 |
2.0 |
187.5 |
|
65-40-200A |
1450 |
7 / 11.7 / 14 |
1.94 / 3.25 / 3.89 |
11 |
55 |
0.63 |
0.75 |
2.0 |
/ |
|
65-40-200B |
2900 |
13 / 21.7 / 26 |
3.62 / 6.03 / 7.23 |
38 |
60 |
3.76 |
4 |
2.0 |
174.5 |
|
65-40-200B |
1450 |
6.5 / 10.8 / 13 |
3.62 / 6.03 / 7.23 |
9.5 |
55 |
0.51 |
0.55 |
2.0 |
/ |
|
65-40-250 |
2900 |
15 / 25 / 30 |
4.17 / 6.94 / 8.33 |
80 |
50 |
10.89 |
15 |
2.0 |
254 |
|
65-40-250 |
1450 |
7.5 / 12.5 / 15 |
2.08 / 3.47 / 4.17 |
20 |
46 |
1.48 |
2.2 |
2.0 |
/ |
|
65-40-250A |
2900 |
14 / 23.4 / 28 |
3.08 / 6.5 / 6.48 |
70 |
53 |
8.42 |
11 |
2.0 |
237.5 |
|
65-40-250A |
1450 |
7 / 11.7 / 14 |
1.94 / 3.25 / 3.89 |
17.5 |
48 |
1.17 |
2.2 |
2.0 |
/ |
|
65-40-250B |
2900 |
13 / 21.7 / 26 |
3.62 / 6.03 / 7.23 |
60 |
53 |
6.7 |
7.5 |
2.0 |
220 |
|
65-40-250B |
1450 |
6.5 / 10.8 / 13 |
1.8 / 3.01 / 3.62 |
15 |
48 |
0.9 |
1.1 |
2.0 |
/ |
|
65-40-315 |
2900 |
15 / 25 / 30 |
4.17 / 6.94 / 8.33 |
125 |
40 |
21.3 |
30 |
2.5 |
315 |
|
65-40-315 |
1450 |
7.5 / 12.5 / 15 |
2.08 / 3.47 / 4.17 |
32 |
37 |
2.94 |
4 |
2.5 |
/ |
|
65-40-315A |
2900 |
14.3 / 23.9 / 28.7 |
3.98 / 6.64 / 7.96 |
114 |
40 |
18.6 |
22 |
2.5 |
301 |
|
65-40-315A |
1450 |
7.17 / 11.9 / 14.3 |
1.99 / 3.32 / 3.98 |
28.5 |
37 |
2.57 |
4 |
2.5 |
/ |
|
65-40-315B |
2900 |
13.6 / 22.7 / 27.2 |
3.78 / 6.3 / 7.56 |
103 |
40 |
15.9 |
18.5 |
2.5 |
286 |
|
65-40-315B |
1450 |
6.8 / 11.3 / 13.6 |
1.89 / 3.15 / 3.78 |
25.8 |
37 |
2.2 |
3 |
2.5 |
/ |
|
65-40-315C |
2900 |
12.8 / 21.4 / 25.7 |
3.57 / 5.94 / 7.14 |
92 |
40 |
11.5 |
15 |
2.5 |
/ |
|
65-40-315C |
1450 |
6.43 / 10.7 / 12.8 |
1.78 / 2.97 / 3.57 |
23 |
37 |
1.85 |
2.2 |
2.5 |
270 |
|
80-65-125 |
2900 |
30 / 50 / 60 |
8.33 / 13.9 / 16.7 |
20 |
75 |
3.6 |
5.5 |
3.0 |
137 |
|
80-65-125 |
1450 |
15 / 25 / 30 |
4.17 / 6.94 / 8.33 |
5 |
71 |
0.48 |
0.75 |
2.5 |
/ |
|
80-65-125A |
2900 |
27.3 / 44.7 / 54.5 |
7.57 / 12.4 / 15.2 |
16 |
75 |
2.72 |
4 |
3.0 |
124.5 |
|
80-65-125A |
1450 |
13.6 / 22.4 / 27.3 |
3.79 / 6.22 / 7.57 |
4 |
71 |
0.36 |
0.55 |
2.5 |
/ |
|
80-65-160 |
2900 |
30 / 50 / 60 |
8.33 / 13.9 / 16.7 |
32 |
73 |
5.97 |
7.5 |
2.5 |
168 |
|
80-65-160 |
1450 |
15 / 25 / 30 |
4.17 / 6.94 / 8.33 |
8 |
69 |
0.79 |
1.5 |
2.5 |
/ |
|
80-65-160A |
2900 |
28 / 46.8 / 56 |
7.78 / 13 / 15.6 |
28 |
73 |
4.87 |
5.5 |
2.5 |
157 |
|
80-65-160A |
1450 |
14 / 23.4 / 28 |
3.9 / 6.5 / 7.78 |
7 |
69 |
0.64 |
0.75 |
2.5 |
/ |
|
80-65-160B |
2900 |
26 / 43.3 / 52 |
7.21 / 12 / 14.5 |
24 |
73 |
3.36 |
4 |
2.5 |
145.5 |
|
80-65-160B |
1450 |
13 / 21.7 / 26 |
3.62 / 6.03 / 7.21 |
6 |
69 |
0.51 |
0.55 |
2.5 |
/ |
|
80-50-200 |
2900 |
30 / 50 / 60 |
8.33 / 13.9 / 16.7 |
50 |
69 |
9.87 |
15 |
2.5 |
202 |
|
80-50-200 |
1450 |
15 / 25 / 30 |
4.17 / 6.94 / 8.33 |
12.5 |
65 |
1.31 |
2.2 |
2.5 |
/ |
|
80-50-200A |
2900 |
28.1 / 46.8 / 56.3 |
7.82 / 13 / 15.7 |
44 |
69 |
8.15 |
11 |
2.5 |
189.5 |
|
80-50-200A |
1450 |
14.1 / 23.4 / 28.1 |
3.91 / 6.5 / 7.82 |
11 |
65 |
1.08 |
1.5 |
2.5 |
/ |
|
80-50-200B |
2900 |
26.1 / 43.3 / 52.3 |
7.62 / 12 / 14.6 |
38 |
69 |
6.53 |
7.5 |
2.5 |
176 |
|
80-50-200B |
1450 |
13.1 / 21.7 / 26.1 |
3.63 / 6.03 / 7.26 |
9.5 |
65 |
0.87 |
1.1 |
2.5 |
/ |
|
80-50-250 |
2900 |
30 / 50 / 60 |
8.33 / 13.9 / 16.7 |
80 |
63 |
17.3 |
22 |
2.5 |
250 |
|
80-50-250 |
1450 |
15 / 25 / 30 |
4.17 / 6.94 / 8.33 |
20 |
60 |
2.27 |
3 |
2.5 |
/ |
|
80-50-250A |
2900 |
28.1 / 46.8 / 56.3 |
7.82 / 13 / 15.7 |
70 |
63 |
14.2 |
18.5 |
2.5 |
234 |
|
80-50-250A |
1450 |
14.1 / 23.4 / 28.1 |
3.91 / 6.5 / 7.82 |
17.5 |
60 |
1.86 |
3 |
2.5 |
/ |
|
80-50-250B |
2900 |
26.1 / 43.3 / 52.3 |
7.26 / 12 / 14.6 |
60 |
63 |
11.2 |
15 |
2.5 |
216.5 |
|
80-50-250B |
1450 |
13.1 / 21.7 / 26.1 |
3.63 / 6.03 / 7.26 |
15 |
60 |
1.47 |
2.2 |
2.5 |
/ |
|
80-50-315 |
2900 |
30 / 50 / 60 |
8.33 / 13.9 / 16.7 |
125 |
54 |
31.5 |
37 |
2.5 |
315 |
|
80-50-315 |
1450 |
15 / 25 / 30 |
4.17 / 6.94 / 8.33 |
32 |
52 |
4.19 |
5.5 |
2.5 |
/ |
|
80-50-315A |
2900 |
28.7 / 47.7 / 57.3 |
7.96 / 13.3 / 15.9 |
114 |
54 |
26.3 |
30 |
2.5 |
301 |
|
80-50-315A |
1450 |
14.3 / 23.9 / 28.7 |
3.98 / 6.62 / 7.96 |
28.5 |
52 |
3.66 |
5.5 |
2.5 |
/ |
|
80-50-315B |
2900 |
27.2 / 45.4 / 54.4 |
7.56 / 12.6 / 15.2 |
103 |
54 |
23.6 |
30 |
2.5 |
286 |
|
80-50-315B |
1450 |
13.6 / 22.7 / 27.2 |
3.79 / 6.3 / 7.56 |
25.8 |
52 |
3.14 |
5.5 |
2.5 |
/ |
|
80-50-315C |
2900 |
25.7 / 42.9 / 51.4 |
7.14 / 11.9 / 14.3 |
92 |
54 |
17 |
22 |
2.5 |
270 |
|
80-50-315C |
1450 |
12.9 / 21.4 / 25.7 |
3.57 / 5.94 / 7.14 |
23 |
/ |
2.63 |
4 |
2.5 |
/ |
|
100-80-125 |
2900 |
60 / 100 / 120 |
16.7 / 27.8 / 33.3 |
20 |
78 |
7.0 |
11 |
4.5 |
139 |
|
100-80-125 |
1450 |
30 / 50 / 60 |
8.33 / 13.9 / 16.7 |
5 |
75 |
0.91 |
1.5 |
2.5 |
/ |
|
100-80-125A |
2900 |
53.7 / 89.4 / 107 |
15 / 24.8 / 29.8 |
16 |
78 |
5.03 |
7.5 |
4.5 |
124.5 |
|
100-80-125A |
1450 |
26.9 / 44.7 / 53.7 |
7.46 / 12.4 / 15 |
4 |
75 |
0.65 |
0.75 |
2.5 |
/ |
|
100-80-160 |
2900 |
60 / 100 / 120 |
16.7 / 27.8 / 33.3 |
32 |
78 |
11.2 |
15 |
4.0 |
170 |
|
100-80-160 |
1450 |
30 / 50 / 60 |
8.33 / 13.9 / 16.7 |
8 |
75 |
1.45 |
2.2 |
2.5 |
/ |
|
100-80-160A |
2900 |
56.1 / 93.5 / 112 |
15.6 / 26 / 31.1 |
28 |
78 |
9.16 |
11 |
4.0 |
159 |
|
100-80-160A |
1450 |
28 / 46.8 / 56.1 |
7.79 / 13 / 15.6 |
7 |
75 |
1.19 |
1.5 |
2.5 |
/ |
|
100-80-160B |
2900 |
50 / 83.5 / 100 |
13.9 / 23.2 / 28 |
22.3 |
78 |
6.95 |
7.5 |
4.0 |
142 |
|
100-80-160B |
1450 |
25 / 41.8 / 50 |
6.96 / 11.6 / 13.9 |
5.6 |
75 |
0.85 |
1.1 |
2.5 |
/ |
|
100-65-200 |
2900 |
60 / 100 / 120 |
16.7 / 27.8 / 33.3 |
50 |
76 |
17.9 |
22 |
3.6 |
203 |
|
100-65-200 |
1450 |
30 / 50 / 60 |
8.33 / 13.9 / 16.7 |
12.5 |
73 |
2.33 |
4 |
2.0 |
/ |
|
100-65-200A |
2900 |
56.1 / 93.5 / 112 |
15.6 / 26 / 31.1 |
44 |
76 |
14.2 |
18.5 |
/ |
190.5 |
|
100-65-200A |
1450 |
28 / 46.8 / 56.1 |
7.79 / 13 / 15.6 |
11 |
73 |
1.93 |
3 |
/ |
/ |
|
100-65-200B |
2900 |
52.3 / 86.6 / 105 |
14.6 / 24.1 / 29 |
38 |
/ |
9.94 |
15 |
/ |
177 |
|
100-65-200B |
1450 |
26.2 / 43.3 / 52.3 |
7.26 / 12 / 14.6 |
9.5 |
/ |
1.54 |
2.2 |
/ |
/ |
|
100-65-250 |
2900 |
60 / 100 / 120 |
16.7 / 27.8 / 33.3 |
80 |
72 |
30.3 |
37 |
3.8 |
255 |
|
100-65-250 |
1450 |
30 / 50 / 60 |
8.33 / 13.9 / 16.7 |
20 |
68 |
4.0 |
5.5 |
2.0 |
/ |
|
100-65-250A |
2900 |
56.1 / 93.5 / 112 |
15.6 / 26 / 31.1 |
70 |
72 |
24.8 |
30 |
3.8 |
238.5 |
|
100-65-250A |
1450 |
28 / 46.8 / 56.1 |
7.79 / 13 / 15.6 |
17.5 |
68 |
3.27 |
4 |
2.0 |
/ |
|
100-65-250B |
2900 |
52.3 / 86.6 / 105 |
14.6 / 24.1 / 29 |
60 |
72 |
19.7 |
22 |
3.8 |
221 |
|
100-65-250B |
1450 |
26.2 / 43.3 / 52.3 |
7.26 / 12 / 14.6 |
15 |
68 |
2.6 |
3 |
2.0 |
/ |
|
100-65-315 |
2900 |
60 / 100 / 120 |
16.7 / 27.8 / 33.3 |
125 |
66 |
51.6 |
75 |
3.6 |
315.5 |
|
100-65-315 |
1450 |
30 / 50 / 60 |
8.33 / 13.9 / 16.7 |
32 |
63 |
6.92 |
11 |
2.0 |
/ |
|
100-65-315A |
2900 |
57.3 / 95.5 / 114 |
16 / 26.5 / 31.8 |
114 |
66 |
45 |
55 |
3.6 |
301.5 |
|
100-65-315A |
1450 |
28.7 / 47.7 / 57.3 |
7.96 / 13.3 / 16 |
28.5 |
63 |
6.03 |
7.5 |
2.0 |
/ |
|
100-65-315B |
2900 |
54.5 / 90.8 / 109 |
15.2 / 25.2 / 30.2 |
103 |
66 |
38.6 |
45 |
3.6 |
286.5 |
|
100-65-315B |
1450 |
27.2 / 45.4 / 54.4 |
7.56 / 12.6 / 15.2 |
25.8 |
63 |
5.18 |
7.5 |
2.0 |
/ |
|
100-65-315C |
2900 |
51.4 / 85.8 / 103 |
14.3 / 23.8 / 28.6 |
92 |
66 |
32.5 |
37 |
3.6 |
270.5 |
|
100-65-315C |
1450 |
25.7 / 42.9 / 51.4 |
7.14 / 11.9 / 14.3 |
23 |
63 |
4.36 |
5.5 |
2.0 |
/ |
|
125-100-200 |
2900 |
120 / 200 / 240 |
33.3 / 55.6 / 66.7 |
50 |
81 |
33.6 |
44 |
4.5 |
216 |
|
125-100-200 |
1450 |
60 / 100 / 120 |
16.7 / 27.8 / 33.3 |
12.5 |
76 |
4.48 |
7.5 |
2.5 |
/ |
|
125-100-200A |
2900 |
113 / 187 / 225 |
31.2 / 52 / 62.5 |
44 |
81 |
27.7 |
37 |
4.5 |
202.5 |
|
125-100-200A |
1450 |
56.3 / 93.5 / 113 |
15.7 / 26 / 31.2 |
11 |
76 |
3.69 |
5.5 |
2.5 |
/ |
|
125-100-200B |
2900 |
105 / 173 / 209 |
29.1 / 48.1 / 58.2 |
38 |
81 |
22.3 |
30 |
4.5 |
188.5 |
|
125-100-200B |
1450 |
52.4 / 86.5 / 105 |
14.6 / 24.1 / 29.1 |
9.5 |
76 |
2.98 |
4 |
2.5 |
/ |
|
125-100-250 |
2900 |
120 / 200 / 240 |
33.3 / 55.6 / 66.7 |
80 |
78 |
55.9 |
75 |
4.2 |
255 |
|
125-100-250 |
1450 |
60 / 100 / 120 |
16.7 / 27.8 / 33.3 |
20 |
76 |
7.17 |
11 |
2.5 |
/ |
|
125-100-250A |
2900 |
113 / 187 / 225 |
31.2 / 52 / 62.5 |
70 |
78 |
45.7 |
55 |
/ |
238.5 |
|
125-100-250A |
1450 |
56.3 / 93.5 / 113 |
15.7 / 26 / 31.2 |
17.5 |
76 |
5.87 |
7.5 |
/ |
/ |
|
125-100-250B |
2900 |
105 / 173 / 209 |
29.1 / 48.1 / 58.2 |
60 |
78 |
36.4 |
45 |
/ |
221 |
|
125-100-250B |
1450 |
52.4 / 86.5 / 105 |
14.6 / 24.1 / 29.1 |
15 |
76 |
4.67 |
5.5 |
/ |
/ |
|
125-100-315 |
2900 |
120 / 200 / 240 |
33.3 / 55.6 / 66.7 |
125 |
75 |
90.8 |
110 |
4.5 |
317 |
|
125-100-315 |
1450 |
60 / 100 / 120 |
16.7 / 27.8 / 33.3 |
32 |
73 |
11.9 |
15 |
2.2 |
/ |
|
125-100-315A |
2900 |
115 / 191 / 229 |
31.8 / 53.1 / 63.6 |
114 |
75 |
78.9 |
90 |
/ |
302.5 |
|
125-100-315A |
1450 |
57.3 / 95.5 / 15 |
15.9 / 26.5 / 31.8 |
28.5 |
73 |
10.3 |
15 |
/ |
/ |
|
125-100-315B |
2900 |
109 / 182 / 218 |
30.2 / 50.4 / 60.6 |
103 |
75 |
68.1 |
75 |
/ |
288 |
|
125-100-315B |
1450 |
54.5 / 90.8 / 109 |
15.2 / 25.2 / 30.2 |
25.8 |
73 |
8.92 |
11 |
/ |
/ |
|
125-100-315C |
2900 |
103 / 172 / 200 |
28.6 / 47.7 / 57.2 |
92 |
75 |
57.4 |
75 |
/ |
272 |
|
125-100-315C |
1450 |
51.4 / 85.8 / 103 |
14.3 / 23.8 / 28.6 |
23 |
73 |
7.5 |
11 |
/ |
/ |
|
125-100-400 |
1450 |
60 / 100 / 120 |
15.7 / 26 / 31.2 |
50 |
65 |
21 |
30 |
2.5 |
395 |
|
125-100-400A |
1450 |
56.3 / 93.5 / 113 |
15.7 / 26 / 31.2 |
44 |
65 |
17.3 |
22 |
2.5 |
370.5 |
|
125-100-400B |
1450 |
54.2 / 86.5 / 150 |
14.6 / 24 / 29.1 |
38 |
65 |
13.9 |
18.5 |
2.5 |
344.5 |
|
150-125-250 |
1450 |
120 / 200 / 240 |
33.3 / 55.6 / 66.7 |
20 |
81 |
13.5 |
18.5 |
3.0 |
260 |
|
150-125-250A |
1450 |
113 / 187 / 225 |
31.2 / 52 / 62.5 |
17.5 |
81 |
11.1 |
15 |
3.0 |
243.5 |
|
150-125-250B |
1450 |
105 / 173 / 209 |
29.1 / 48.1 / 58.2 |
15 |
81 |
8.75 |
11 |
3.0 |
225 |
|
150-125-315 |
1450 |
120 / 200 / 240 |
33.3 / 55.6 / 66.7 |
32 |
79 |
21.08 |
30 |
2.5 |
325 |
|
150-125-315A |
1450 |
113 / 187 / 225 |
31.2 / 52 / 62.5 |
28 |
80 |
17.8 |
22 |
2.5 |
304 |
|
150-125-315B |
1450 |
105 / 173 / 209 |
29.1 / 48.1 / 58.2 |
24 |
80 |
14.2 |
18.5 |
2.5 |
281.5 |
|
150-125-400 |
1450 |
120 / 200 / 240 |
33.3 / 55.6 / 66.7 |
50 |
75 |
36.3 |
45 |
2.8 |
399.5 |
|
150-125-400A |
1450 |
113 / 187 / 225 |
31.2 / 52 / 62.5 |
44 |
75 |
29.9 |
37 |
2.8 |
374.5 |
|
150-125-400B |
1450 |
105 / 173 / 209 |
29.1 / 48.1 / 58.2 |
38 |
75 |
24.1 |
30 |
2.8 |
348.5 |
|
200-150-250 |
1450 |
240 / 400 / 460 |
66.7 / 111.1 / 128 |
20 |
82 |
26.6 |
37 |
4.2 |
275 |
|
200-150-250A |
1450 |
225 / 374 / 431 |
62.5 / 104 / 120 |
17.5 |
82 |
21.8 |
30 |
4.2 |
257.5 |
|
200-150-250B |
1450 |
208 / 346 / 398 |
57.7 / 96.2 / 111 |
15 |
82 |
17.2 |
22 |
4.2 |
238 |
|
200-150-315 |
1450 |
240 / 400 / 460 |
66.7 / 111.1 / 128 |
32 |
82 |
42.5 |
55 |
3.5 |
346 |
|
200-150-315A |
1450 |
225 / 374 / 431 |
62.5 / 104 / 120 |
28 |
82 |
35.4 |
45 |
3.5 |
325.5 |
|
200-150-315B |
1450 |
208 / 346 / 398 |
57.7 / 96.2 / 111 |
24 |
82 |
27.9 |
37 |
/ |
301.5 |
|
200-150-400 |
1450 |
240 / 400 / 460 |
66.7 / 111.1 / 128 |
50 |
81 |
67.2 |
90 |
3.8 |
395 |
|
200-150-400A |
1450 |
225 / 374 / 431 |
62.5 / 104 / 120 |
44 |
81 |
55.5 |
75 |
3.8 |
370.5 |
|
200-150-400B |
1450 |
208 / 346 / 398 |
57.7 / 96.2 / 111 |
38 |
81 |
44.6 |
55 |
3.8 |
344.5 |
Recommend Products
CONTACT JIUJIANG
Telephone
+86 18167392360
Mailbox
Address
No.16 Linwu Road, Oubei Street, Yongjia, Wenzhou, Zhejiang, China
