ZN-LD Series Open Hopper Progressive Cavity Pump

Model NO. ZN-LD Series Open Hopper Progressive Cavity Pump

Pump material: Cast Iron, Stainless Steel

Inlet & Outlet Size: DN32-DN150

Flow Range: 0.05 - 120 m³/h

Pressure Range: 0.6 - 1.2 MPa

Motor Power: 0.55 - 30 kW

Speed: 100 r/min - 430 r/min

Voltage: 220V / 380V / 415V / 440V /460V

What is ZN-LD Series Open Hopper Progressive Cavity Pump？

The ZN-LD series open hopper progressive cavity pump is a highly adaptable, positive-displacement open hopper pump engineered to transfer challenging industrial media by axially shifting sealed cavities formed through the precision meshing of its rotor and stator. Serving as a primary solution among heavy-duty progressive cavity pumps, it effortlessly handles high-viscosity fluids, solid-laden slurries, non-flowable pastes, and multiphase (solid-liquid-gas) flows. Whether deployed in sludge cake processing or utilized as a reliable dewatering pump in industrial waste management, it guarantees consistent volumetric delivery.

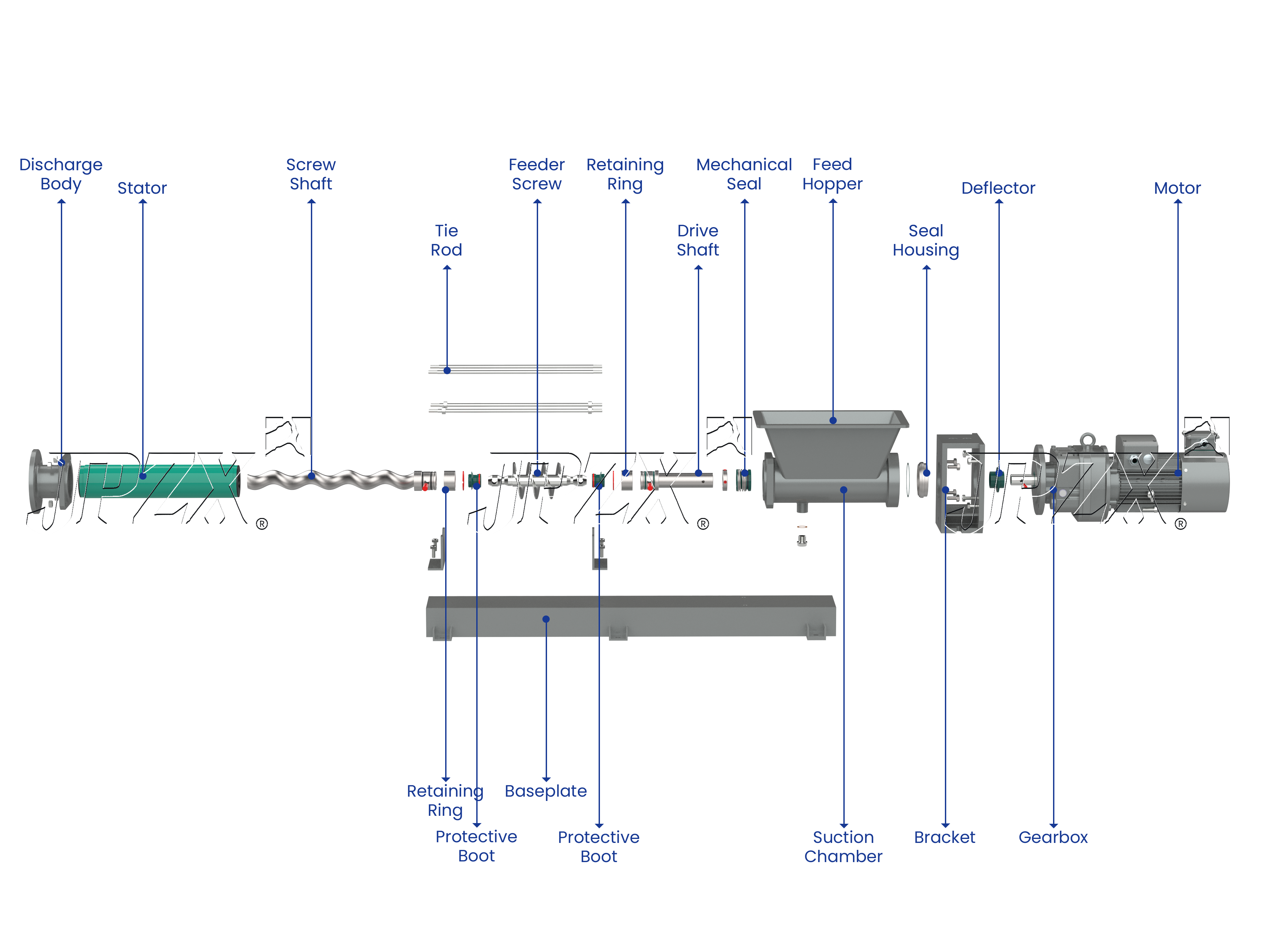

Mature Modular Design (4 Available Configurations)

Standard General-Purpose: The most cost-effective choice for everyday industrial fluid transfer.
Sanitary Quick-Disassembly (FSIP): Engineered for fast cleaning, minimizing maintenance downtime.
Hopper-Fed: Configured as a specialized open hopper pump with a rectangular feed inlet and internal feeder screw to efficiently convey non-flowable pastes and thick sludges.
Vertical Submerged: Designed for deep pit drainage, tank stripping, and heavy-duty dewatering pumpapplications.

Wide Industry Applications: Perfect for budget-conscious operations seeking dependable performance across Environmental Protection (Wastewater), Chemical Processing, Food Processing, Papermaking, and Petrochemicals.

Key Features

Wide Application Range: Highly versatile design allows these progressive cavity pumps to process a broad spectrum of industrial media.
Excellent Self-Priming: Features superior suction capability, enabling reliable self-priming performance for an open hopper pump.
Smooth & Quiet Operation: Ensures a uniform, continuous flow with minimal operating vibration and low mechanical noise.
High Tolerance: Compared to other rotary positive displacement designs, this dewatering pump offers exceptional resistance to entrained gases and solid impurities.
Robust & Easy Maintenance: Heavy-duty structural layout provides simple installation, straightforward component access, and hassle-free routine maintenance.

Applications

Petroleum Industry: Extraction and transportation of crude oil, heavy oil, and multiphase mixtures containing gas, sand, and water in oilfields.
Chemical Industry: Conveying synthetic fiber liquids, viscose, oils, suspensions, emulsions, polymers, flocculants, precipitants, lime milk, etc.
Paper & Pulp Industry: Transferring paper pulp, cotton pulp, and straw pulp of various concentrations, as well as coatings, and heavy oil, calcium carbonate, or brighteners used in alkali recovery.
Food & Beverage Industry: Pumping food raw materials, sauces, dairy products, fruit juices, fruit pastes, carbonated drinks, and various condiments.
Brewery & Distillary: Handling diatomaceous earth, malt extract, spent grains (distillers' grains), filter cakes, and other liquid media.
Environmental Protection (Wastewater Treatment): Conveying concentrated sludge, dewatered sludge, floating sludge, lime milk, chemical dosing agents, flocculants, etc.
Other Industries:
- Marine & Shipping: Transferring fuel oil, cargo tank stripping, oil spill cleanup, sewage discharge, waste oil onshore delivery, and loading/unloading various materials.
- Construction: Pumping mortar, coatings, and lime putty.
- Mining: Transferring coal-water slurry and various chemical reagents.

ZN Series Pump Selection (Low-Pressure Single-Stage Sludge Feed Pump)

No.	Pump Model	Flow Rate (m³/h)	Pressure (MPa)	Speed Range (rpm)	Motor Power (kW)	Inlet Dia. DN (mm)	Outlet Dia. DN (mm)
1	ZN015BYL-01B	0.1~0.4	0.6	150~430	0.55	32	32
2	ZN021BYL-01B	0.5~1	0.6	200~400	0.75	32	32
3	ZN031BYL-01B	1.5~3	0.6	200~380	1.5	50	50
4	ZN038BYL-01B	4~5	0.6	208~250	2.2	65	65
5	ZN031BYL-01B	1~2	0.6	150~250	1.5	50	50
6	ZN038BYL-01B	3~5	0.6	150~250	3	65	65
7	ZN045BYL-01B	6~10	0.6	150~250	3	80	80
8	ZN053BYL-01B	15~20	0.6	200~300	5.5	80	80
9	ZN063BYL-01V	25~30	0.6	200~280	5.5	100	100
10	ZN063BYL-01V	35	0.6	312	7.5	100	100
11	ZN076BYL-01V	40~60	0.6	200~270	11~15	125	125
12	ZN090BYL-01V	60~80	0.6	200~270	18.5	150	150
13	ZN105BYL-01V	80~120	0.6	170~250	22	150	150

ZN Series Pump Selection (High-Pressure Two-Stage Sludge Feed Pump)

No.	Pump Model	Flow Rate (m³/h)	Pressure (MPa)	Speed Range (rpm)	Motor Power (kW)	Inlet Dia. DN (mm)	Outlet Dia. DN (mm)
1	ZN015BYL-02B	0.05~0.2	1.2	150~400	0.55	32	32
2	ZN021BYL-02B	0.2~0.5	1.2	170~380	0.75	32	32
3	ZN031BYL-02B	0.5~1.5	1.2	150~420	1.5	50	50
4	ZN038BYL-02B	1.2~4	1.2	150~370	3.0	65	65
5	ZN045BYL-02B	2~7	1.2	180~320	4.0	80	80
6	ZN053BYL-02V	3~12	1.2	100~340	5.5	80	80
7	ZN063BYL-02V	5~20	1.2	100~320	7.5	100	100
8	ZN076BYL-02V	10~30	1.2	120~320	11~15	125	125
9	ZN090BYL-02V	15~50	1.2	120~300	18.5~22	150	150
10	ZN0105BYL-02V	40~60	1.2	170~250	22~30	150	150

Q1: Why does this pump have an open hopper design instead of a standard flanged inlet?

The open hopper, paired with a built-in screw feeder, is designed for high-viscosity media with poor fluidity (like dewatered sludge cakes, fruit residue, or thick paste). These materials cannot flow naturally through pipes into a standard inlet; the hopper allows direct dumping from conveyors or manual loading and forces the material into the pump cavity.

Q2: What should be done to prevent bridging or clogging when feeding thick materials into the hopper?

For extremely dry or sticky materials that tend to bridge across the hopper opening, we can customize the pump with an extended hopper length, a dual-screw feeding system, or an integrated breaker shaft to keep the material continuously moving into the screw rotor.

Q3: Can this hopper-style pump run dry during continuous industrial feeding?

No. Progressive cavity pumps must never run dry, as friction between the metal rotor and rubber stator causes rapid overheating and stator damage. If feeding is intermittent, we recommend installing a liquid sensor or dry-running protection device to stop the pump automatically when the hopper runs empty.

Q4: How do I choose between Cast Iron and Stainless Steel for the open hopper and pump body?

Cast Iron: Ideal for industrial sludge dewatering, municipal waste handling, and non-corrosive heavy residue operations.

Stainless Steel (304 / 316): Recommended for food processing (mash, dough, sauce), pharmaceutical waste, chemical compounds, or environments with strict sanitation standards.
