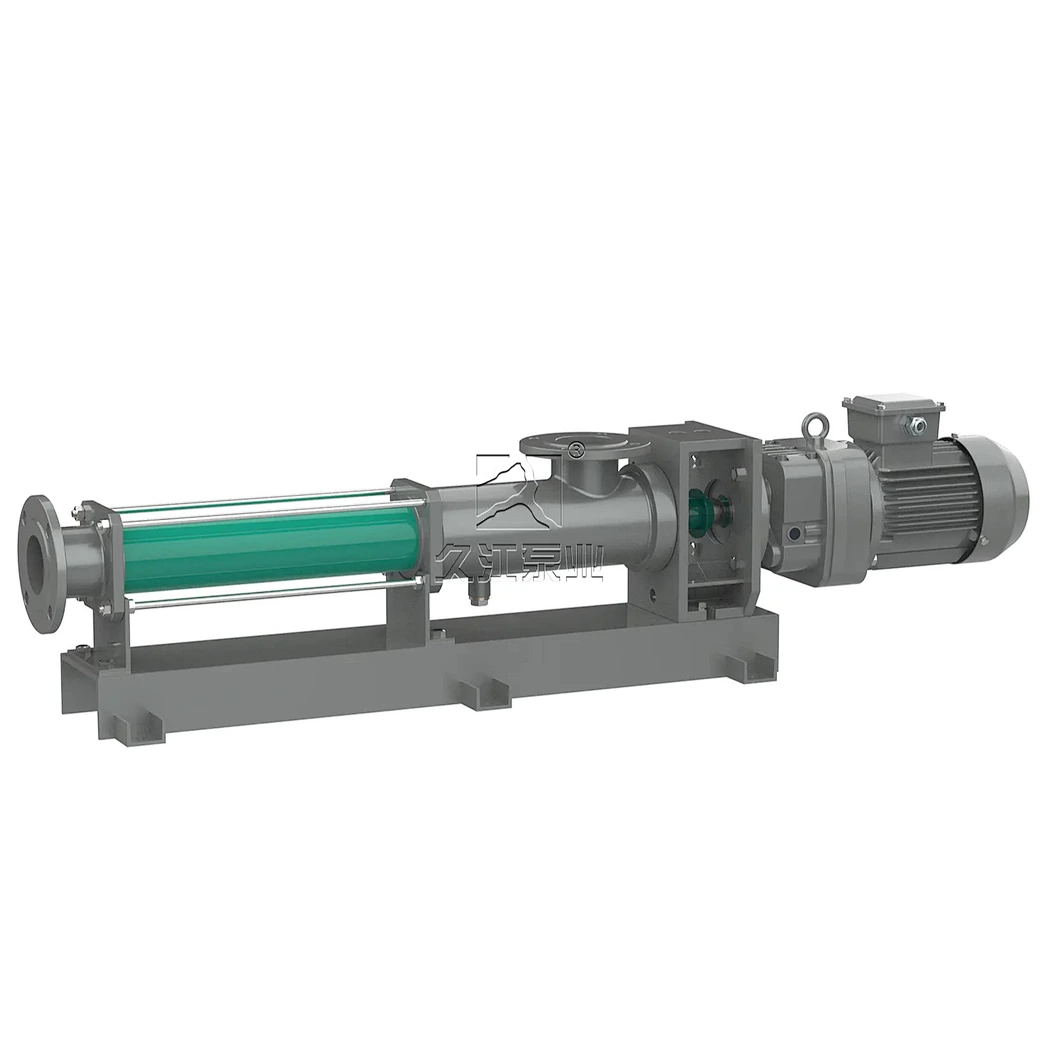

ZN Single Screw Pump

Model NO. ZN Single Screw Pump

Pump material: Cast Iron, Stainless Steel

Inlet & Outlet Size: DN32-DN150

Flow Range: 0.05 - 120 m³/h

Pressure Range: 0.6 - 1.2 MPa

Motor Power: 0.55 - 30 kW

Speed: 100 r/min - 430 r/min

Voltage: 220V / 380V / 415V / 440V /460V

What is ZN Single Screw Pump？

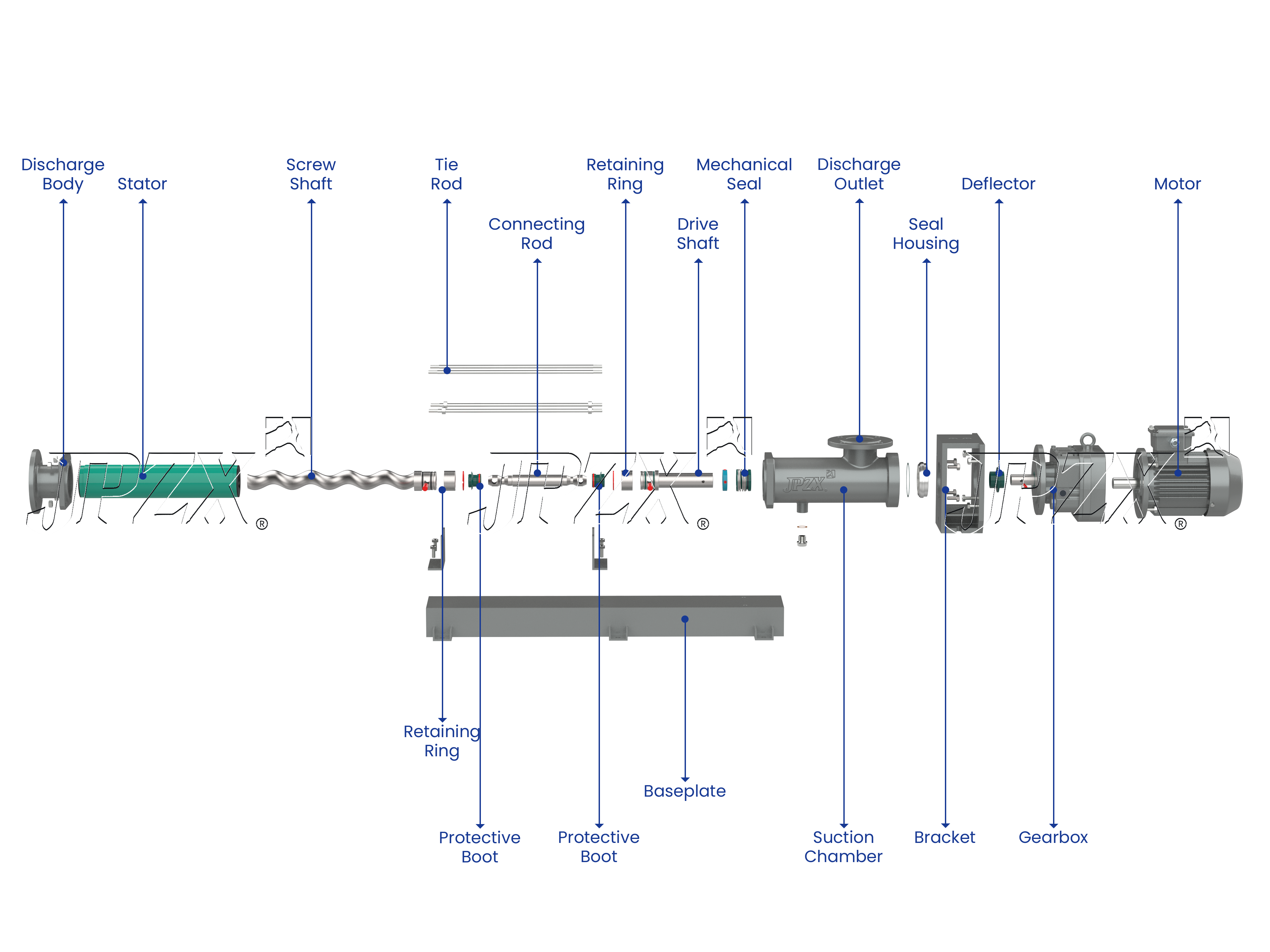

The ZN series is a positive displacement screw pump that combines a progressing cavity configuration with a specialized rotor and stator assembly within a single structure. Utilizing an eccentric rotating screw shaft inside a flexible elastic stator, this positive displacement unit eliminates shearing risks to handle shear-sensitive media smoothly. Engineered as a high-performance sludge transfer pump, it easily moves high-viscosity fluids, thick sludges, and liquids containing large solid particles. As one of the most reliable progressive cavity pumps for continuous processing, this single screw pump provides pulse-free output, strong self-priming capability, precise metering, and minimal maintenance, making it an ideal choice across wastewater treatment plants, chemical processing, paper pulp production, and food processing lines.

Key Features

Wide Application Range: Highly versatile design allows this screw pump to accommodate a broad spectrum of industrial media.
Excellent Self-Priming: Delivers superior suction lift capability, ensuring reliable self-priming operation during initial startups.
Smooth & Quiet Operation: Ensures a uniform, continuous fluid discharge with minimal operating vibration and low mechanical noise.
High Tolerance Design: Compared to alternative rotary designs, these progressive cavity pumps offer exceptional resistance against entrained gases and solid impurities.
Robust & Easy Maintenance: Features a heavy-duty structural layout that functions as an efficient sludge transfer pump, providing simple installation and hassle-free routine servicing.

Applications

Petroleum Industry: Extraction and transportation of crude oil, heavy oil, and multiphase mixtures containing gas, sand, and water in oilfields.
Chemical Industry: Conveying synthetic fiber liquids, viscose, oils, suspensions, emulsions, polymers, flocculants, precipitants, lime milk, etc.
Paper & Pulp Industry: Transferring paper pulp, cotton pulp, and straw pulp of various concentrations, as well as coatings, and heavy oil, calcium carbonate, or brighteners used in alkali recovery.
Food & Beverage Industry: Pumping food raw materials, sauces, dairy products, fruit juices, fruit pastes, carbonated drinks, and various condiments.
Brewery & Distillary: Handling diatomaceous earth, malt extract, spent grains (distillers' grains), filter cakes, and other liquid media.
Environmental Protection (Wastewater Treatment): Conveying concentrated sludge, dewatered sludge, floating sludge, lime milk, chemical dosing agents, flocculants, etc.
Other Industries:
- Marine & Shipping: Transferring fuel oil, cargo tank stripping, oil spill cleanup, sewage discharge, waste oil onshore delivery, and loading/unloading various materials.
- Construction: Pumping mortar, coatings, and lime putty.
- Mining: Transferring coal-water slurry and various chemical reagents.

ZN Series Pump Selection (Low-Pressure Single-Stage Sludge Feed Pump)

No.	Pump Model	Flow Rate (m³/h)	Pressure (MPa)	Speed Range (rpm)	Motor Power (kW)	Inlet Dia. DN (mm)	Outlet Dia. DN (mm)
1	ZN015BYL-01B	0.1~0.4	0.6	150~430	0.55	32	32
2	ZN021BYL-01B	0.5~1	0.6	200~400	0.75	32	32
3	ZN031BYL-01B	1.5~3	0.6	200~380	1.5	50	50
4	ZN038BYL-01B	4~5	0.6	208~250	2.2	65	65
5	ZN031BYL-01B	1~2	0.6	150~250	1.5	50	50
6	ZN038BYL-01B	3~5	0.6	150~250	3	65	65
7	ZN045BYL-01B	6~10	0.6	150~250	3	80	80
8	ZN053BYL-01B	15~20	0.6	200~300	5.5	80	80
9	ZN063BYL-01V	25~30	0.6	200~280	5.5	100	100
10	ZN063BYL-01V	35	0.6	312	7.5	100	100
11	ZN076BYL-01V	40~60	0.6	200~270	11~15	125	125
12	ZN090BYL-01V	60~80	0.6	200~270	18.5	150	150
13	ZN105BYL-01V	80~120	0.6	170~250	22	150	150

ZN Series Pump Selection (High-Pressure Two-Stage Sludge Feed Pump)

No.	Pump Model	Flow Rate (m³/h)	Pressure (MPa)	Speed Range (rpm)	Motor Power (kW)	Inlet Dia. DN (mm)	Outlet Dia. DN (mm)
1	ZN015BYL-02B	0.05~0.2	1.2	150~400	0.55	32	32
2	ZN021BYL-02B	0.2~0.5	1.2	170~380	0.75	32	32
3	ZN031BYL-02B	0.5~1.5	1.2	150~420	1.5	50	50
4	ZN038BYL-02B	1.2~4	1.2	150~370	3.0	65	65
5	ZN045BYL-02B	2~7	1.2	180~320	4.0	80	80
6	ZN053BYL-02V	3~12	1.2	100~340	5.5	80	80
7	ZN063BYL-02V	5~20	1.2	100~320	7.5	100	100
8	ZN076BYL-02V	10~30	1.2	120~320	11~15	125	125
9	ZN090BYL-02V	15~50	1.2	120~300	18.5~22	150	150
10	ZN0105BYL-02V	40~60	1.2	170~250	22~30	150	150

Q1: Can this ZN pump run in reverse to clear blockages or clean pipes?

Yes, the ZN single screw pump can run both clockwise and counter-clockwise. Reversing the motor direction changes the flow direction instantly, which makes it very convenient to clear pipeline blockages or flush out remaining fluids after operation.

Q2: Why is the speed range for the ZN series lower (100–430 r/min) compared to standard water pumps?

Standard water pumps run at 1450 or 2900 RPM, but progressive cavity pumps transfer high-viscosity or abrasive sludge. Running at lower speeds (100–430 RPM) significantly slows down friction wear on the rubber stator and steel rotor, drastically extending the pump’s service life.

Q3: What are the main wearable parts for the ZN pump, and how often should they be replaced?

The primary wear parts are the rubber stator and internal universal joint, mechanical seal, and so on. Replacement frequency depends on fluid abrasiveness, but having a spare stator and seal kit on hand ensures minimal downtime when routine maintenance is required.

Q4: Can I use this pump for liquids with high temperature or extreme pH levels?

Yes, but the liquid temperature and chemical properties dictate the stator material and pressure level. For standard fluids, standard NBR is fine (up to 80°C). For hot fluids or strong acids/alkalis, specialized EPDM or FKM stators must be selected to prevent rubber swelling or degradation.
