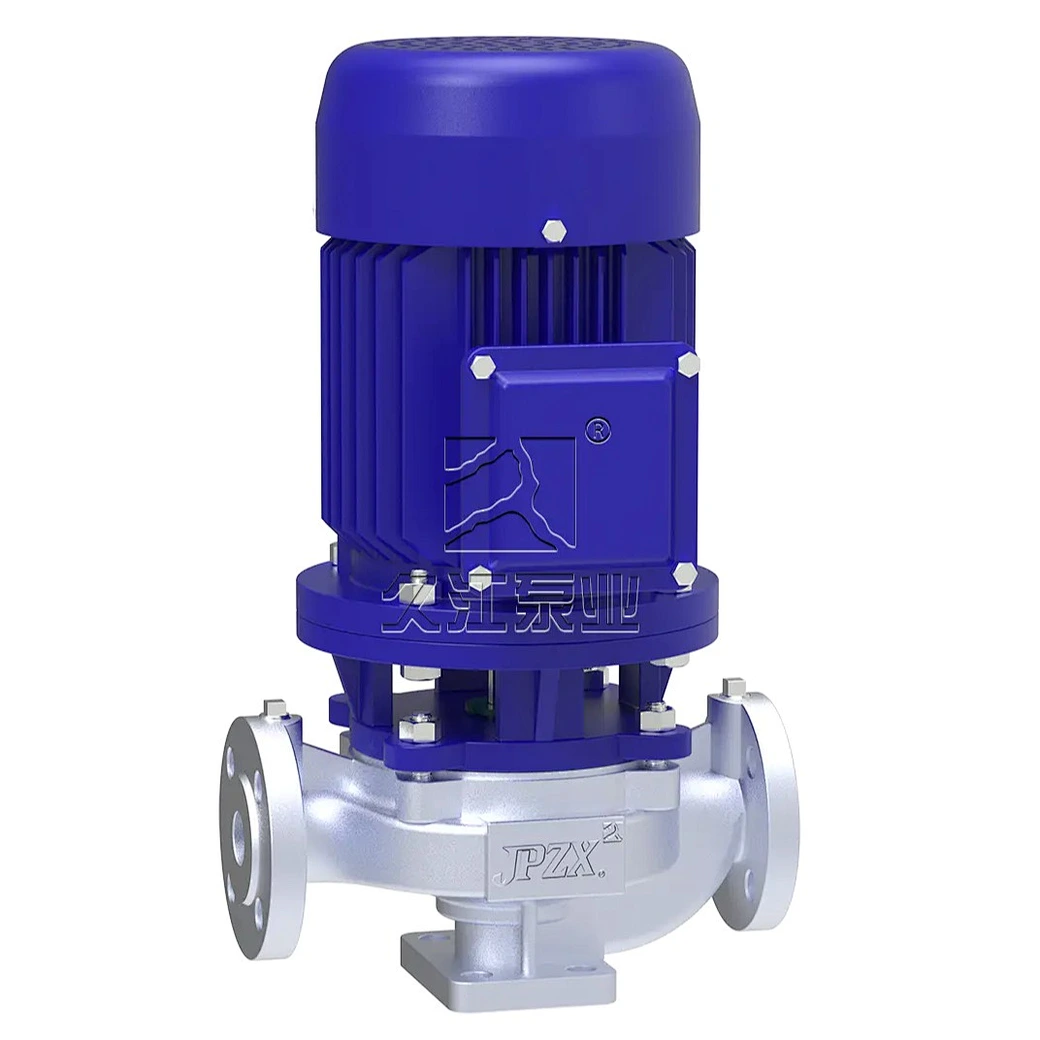

IHG stainless steel vertical pipeline centrifugal pump

IHG stainless steel inline pump side view

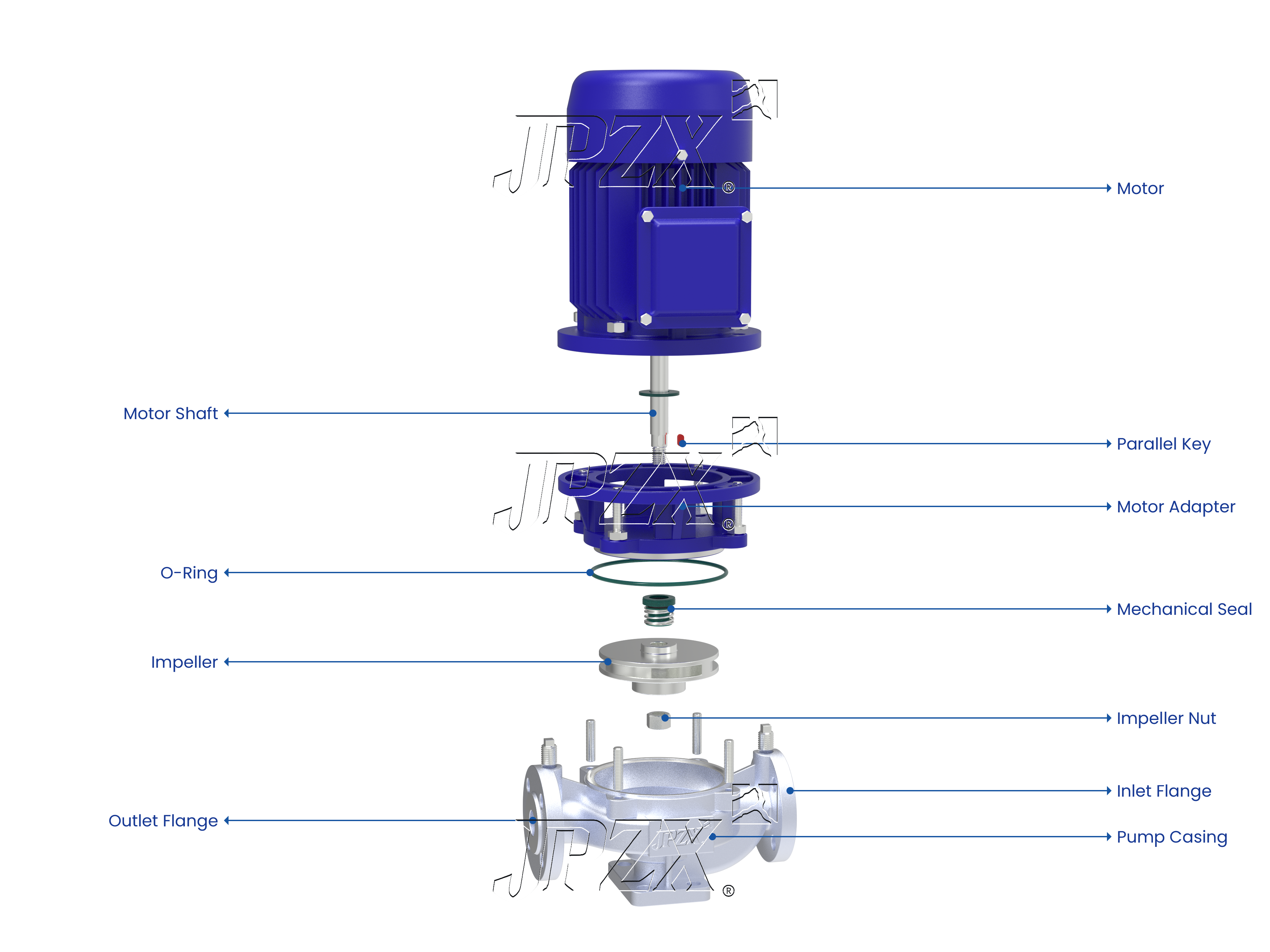

IHG stainless steel centrifugal pump structure view

ISG cast iron vertical pipeline centrifugal pump

Vertical In-Line Centrifugal Pump (IHG/ISG Series)

Model NO. Vertical In-Line Centrifugal Pump (IHG/ISG Series)

Pump material: Cast Iron, Stainless Steel, Duplex Steel

Flow Range: 1.1 - 1450 m³/h

Head Range: 7 - 153.6 m

Motor Power: 0.18 - 160 kW

Speed: 970 -2960 r/min

Voltage: 220V / 380V / 415V / 440V / 460V

What is Vertical In-Line Centrifugal Pump (IHG/ISG Series)？

The IHG/ISG vertical in line pump is a single-stage single-suction vertical centrifugal pump designed for liquid supply, industrial circulation, and fluid delivery. Functioning as a high-efficiency inline water pump, it easily handles clean water and non-corrosive media with similar fluid properties. Designed as a versatile water suction pump, this series features high efficiency, low noise, and stable hydraulic performance, fully complying with ISO2888 standards for HVAC, building water supply, and general industrial pipelines.

Depending on fluid temperature and chemical compatibility, derivative models of this vertical in line pump are available for hot water systems, chemical processing, and oil transfer. Its compact structure makes it an ideal inline water pump for tight equipment rooms, while its optimized impeller layout functions as an efficient water suction pump across diverse operating pressures.

Main Features

Compact Structure & Small Footprint: Space-saving design of this vertical in line pump minimizes installation footprint and simplifies direct pipeline integration; adding a protective cover allows for outdoor use.
High Concentricity & Long Service Life: The impeller is mounted directly on the motor shaft to ensure inline water pump concentricity, thereby enhancing operational stability and extending service life.
Durable Mechanical Seal: High-quality carbide seal rings are used in this water suction pump to enhance wear resistance and effectively prevent liquid leakage.
Easy Installation & Maintenance: Convenient maintenance without dismantling the piping system. The vertical in line pump inlet and outlet have identical diameters on the same axis for rapid pipeline connection.
Series & Parallel Operation: Can be configured in series or parallel as a heavy-duty inline water pump system to meet custom flow rate and head requirements.
Flexible Directional Alignment:Thewater suction pump inlet and outlet can be adjusted facing the same direction or rotated to 90°, 180°, or 270° to suit specific site layouts.
Adjustable Performance Curve: Trimmed impeller options allow this vertical in line pump to match exact hydraulic requirements without altering the baseline installation footprint.

Operating Conditions

System Pressure Limits: The maximum working pressure of the pump system is 1.6 MPa, i.e., pump inlet pressure + pump head < 1.6 MPa; the pump hydrostatic pressure test is 2.5 MPa. The pump suction inlet pressure should not exceed 0.3 MPa. If the inlet pressure exceeds 0.3 MPa in application, the balance hole of the impeller must be plugged to balance axial force. Please note this during operation.
Applicable Media: The volume content of solid insoluble matter should not exceed 0.1% per unit volume, and the particle size should not exceed 0.2 mm. If the medium contains fine particles, a wear-resistant mechanical seal must be used.
Ambient Conditions: Ambient temperature does not exceed 40°C, and relative humidity does not exceed 95%.

Main Applications

ISG Vertical Centrifugal Pump: Used for conveying clean water and other liquids with physical properties similar to clean water. Suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire boosting, long-distance water delivery, and heating, bathroom cold/hot water circulation boosting and equipment matching. Operating temperature T < 80°C.
IRG (GRG) Vertical Hot Water (High Temperature) Circulation Pump: Suitable for energy, metallurgy, wood processing, chemical industry, textile, paper making, hotels, bathrooms, and guest houses for boiler hot water boosting circulation transportation, as well as urban heating system circulation pumps. IRG operating media temperature does not exceed 120°C; GRG operating media temperature does not exceed 240°C.
IHG Vertical Pipeline Chemical Pump: Used for conveying corrosive liquids without solid particles and with a viscosity similar to water. Suitable for petroleum, chemical, metallurgy, power, paper making, food and pharmaceuticals, synthetic fibers, and other sectors. Operating temperature: -20°C~ +120°C.
IHGB Stainless Steel Explosion-Proof Chemical Centrifugal Pump: Suitable for conveying flammable and explosive chemical liquids.
YG Vertical Pipeline Oil Pump: Used for conveying petroleum products such as gasoline, kerosene, and diesel. Conveyed media temperature: -20°C~ +120°C.
ISGD, IRGD, GRGD, IHGD, YGD, IHGBD Vertical Low-Speed Centrifugal Pumps: Suitable for occasions requiring very low ambient noise, air conditioning circulation, etc.

Model	Flow Rate (m³/h)	Flow Rate (L/s)	Head (m)	Efficiency (%)	Speed (r/min)	Motor Power (kW)	NPSHr (m)	Weight (kg)
15-80	1.1	0.3	8.5	26	2800	0.18	2.3	17
15-80	1.5	0.43	8	34	2800	0.37	2.3	17
15-80	2.0	0.55	7	34	2800	0.75	2.3	17
20-110	1.8	0.5	16	25	2800	0.37	2.3	25
20-110	2.5	0.69	15	34	2800	0.37	2.3	25
20-110	3.3	0.91	13.5	35	2800	0.37	2.3	25
20-160	1.8	0.5	33	19	2900	0.75	2.3	29
20-160	2.5	0.69	32	25	2900	0.75	2.3	29
20-160	3.3	0.91	30	23	2900	0.75	2.3	29
25-110	2.8	0.78	16	34	2900	0.55	2.3	26
25-110	4	1.11	15	42	2900	0.55	2.3	26
25-110	5.2	1.44	13.5	41	2900	0.55	2.3	26
25-125	2.8	0.78	20.6	28	2900	0.75	2.3	28
25-125	4	1.11	20	36	2900	0.75	2.3	28
25-125	5.2	1.44	18	35	2900	0.75	2.3	28
25-125A	2.5	0.69	17	35	2900	0.55	2.3	27
25-125A	3.6	1	16	35	2900	0.55	2.3	27
25-125A	4.6	1.28	14.4	35	2900	0.55	2.3	27
25-160	2.8	0.78	33	24	2900	1.5	2.3	39
25-160	4	1.11	32	24	2900	1.5	2.3	39
25-160	5.2	1.44	30	24	2900	1.5	2.3	39
25-160A	2.6	0.12	29	31	2900	1.1	2.3	34
25-160A	3.7	1.03	28	31	2900	1.1	2.3	34
25-160A	4.9	1.36	26	31	2900	1.1	2.3	34
32-100	4.5	12.5	12.5	44	2900	0.55	2	27
32-100(I)	4.4	1.22	13.2	48	2900	0.75	2	32
32-100(I)	6.3	1.75	12.5	54	2900	0.75	2	32
32-100(I)	8.3	2.32	11.3	53	2900	0.75	2	32
32-125	3.5	0.97	22	40	2900	0.75	2.3	28
32-125	5	1.39	20	44	2900	0.75	2.3	28
32-125	6.5	1.8	18	42	2900	0.75	2.3	28
32-125A	3.1	0.86	17.6	43	2900	0.55	2.3	28
32-125A	4.5	1.25	16	43	2900	0.55	2.3	28
32-125A	5.8	1.61	14.4	43	2900	0.55	2.3	28
32-160	6.5	5	32	44	2900	1.5	2.3	39
32-160A	4	1.1	25	34	2900	1.1	2	38
32-160(I)	4.4	1.22	33.2	34	2900	2.2	2	47
32-160(I)	6.3	1.75	32	40	2900	2.2	2	47
32-160(I)	8.3	2.32	30.2	42	2900	2.2	2	47
32-200	4.5	12.5	50	32	2900	3	2	55
32-200(I)	4.4	1.22	50.5	26	2900	4	2	43
32-200(I)	6.3	1.75	50	33	2900	4	2	43
32-200(I)	8.3	2.32	48	35	2900	4	2	43
32-200A	2.8	0.78	44.6	34	2900	2.2	2	74
32-200A	4	1.11	44	40	2900	2.2	2	74
32-200A	5.2	1.44	42.7	42	2900	2.2	2	74
40-100	4.4	1.22	13.2	48	2900	0.55	2.3	32
40-100	6.3	1.75	12.5	54	2900	0.55	2.3	32
40-100	8.3	2.31	11.3	53	2900	0.55	2.3	32
40-100A	3.9	1.08	10.6	52	2900	0.37	2.3	32
40-100A	5.6	1.56	10	52	2900	0.37	2.3	32
40-100A	7.4	2.06	9	52	2900	0.37	2.3	32
40-125	4.4	1.22	21	41	2900	1.1	2.3	34
40-125	6.3	1.75	20	46	2900	1.1	2.3	34
40-125	8.3	2.31	18	43	2900	1.1	2.3	34
40-125A	3.9	1.08	17.6	40	2900	0.75	2.3	33
40-125A	5.6	1.56	16	45	2900	0.75	2.3	33
40-125A	7.4	2.06	14.4	41	2900	0.75	2.3	33
40-160	4.4	1.22	33	35	2900	2.2	2.3	47
40-160	6.3	1.75	32	40	2900	2.2	2.3	47
40-160	8.3	2.31	30	40	2900	2.2	2.3	47
40-160A	4.1	1.14	29	34	2900	1.5	2.3	43
40-160A	5.9	1.64	28	39	2900	1.5	2.3	43
40-160A	7.8	2.17	26.3	39	2900	1.5	2.3	43
40-160B	3.8	1.06	25.5	34	2900	1.1	2.3	38
40-160B	5.5	1.53	24	38	2900	1.1	2.3	38
40-160B	7.2	2	22.5	37	2900	1.1	2.3	38
40-200	4.4	1.22	51	26	2900	4	2.3	74
40-200	6.3	1.75	50	33	2900	4	2.3	74
40-200	8.3	2.31	48	32	2900	4	2.3	74
40-200A	4.1	1.14	45	36	2900	3	2.3	62
40-200A	5.9	1.64	44	31	2900	3	2.3	62
40-200A	7.8	2.17	42	30	2900	3	2.3	62
40-200B	3.7	1.03	38	29	2900	2.2	2.3	52
40-200B	5.3	1.47	36	29	2900	2.2	2.3	52
40-200B	7	1.94	34.5	29	2900	2.2	2.3	52
40-250	4.4	1.22	82	24	2900	7.5	2.3	105
40-250	6.3	1.75	80	28	2900	7.5	2.3	105
40-250	8.3	2.31	74	28	2900	7.5	2.3	105
40-250A	4.1	1.14	72	24	2900	5.5	2.3	98
40-250A	5.9	1.64	70	28	2900	5.5	2.3	98
40-250A	7.8	2.17	65	27	2900	5.5	2.3	98
40-250B	3.7	1.06	61.5	23	2900	4	2.3	77
40-250B	5.3	1.53	60	27	2900	4	2.3	77
40-250B	7	1.94	56	26	2900	4	2.3	77
40-100(I)	8.8	2.44	13.2	55	2900	1.1	2.3	34
40-100(I)	12.5	3.47	12.5	62	2900	1.1	2.3	34
40-100(I)	16.3	4.53	11.3	60	2900	1.1	2.3	34
40-100(I)A	8	2.22	10.6	60	2900	0.75	2.3	32
40-100(I)A	11	3.05	10	60	2900	0.75	2.3	32
40-100(I)A	14.5	4.03	9	60	2900	0.75	2.3	32
40-125(I)	8.8	2.44	21.2	49	2900	1.5	2.3	38
40-125(I)	12.5	3.47	20	58	2900	1.5	2.3	38
40-125(I)	16.3	4.53	17.8	57	2900	1.5	2.3	38
40-125(I)A	8	2.22	17	57	2900	1.1	2.3	33
40-125(I)A	11	3.05	16	57	2900	1.1	2.3	33
40-125(I)A	14.5	4.03	14	57	2900	1.1	2.3	33
40-160(I)	8.8	2.44	33	45	2900	3	2.3	56
40-160(I)	12.5	3.47	32	52	2900	3	2.3	56
40-160(I)	16.3	4.53	30	51	2900	3	2.3	56
40-160(I)A	8.2	2.28	29	44	2900	2.2	2.3	47
40-160(I)A	11.7	3.25	20	51	2900	2.2	2.3	47
40-160(I)A	15.2	4.22	26	50	2900	2.2	2.3	47
40-160(I)B	7.3	2.38	23	50	2900	1.5	2.3	43
40-160(I)B	10.4	2.89	22	50	2900	1.5	2.3	43
40-160(I)B	13.5	3.75	20.5	50	2900	1.5	2.3	43
40-200(I)	8.8	2.44	51.2	38	2900	5.5	2.3	85
40-200(I)	12.5	3.47	50	46	2900	5.5	2.3	85
40-200(I)	16.3	4.53	48	46	2900	5.5	2.3	85
40-200(I)A	8.3	2.31	45	37	2900	4	2.3	75
40-200(I)A	11.7	3.25	44	45	2900	4	2.3	75
40-200(I)A	15.3	4.25	42	45	2900	4	2.3	75
40-200(I)B	7.5	2.08	37	44	2900	3	2.3	63
40-200(I)B	10.6	2.94	36	44	2900	3	2.3	63
40-200(I)B	13.8	3.83	34	44	2900	3	2.3	63
40-250(I)	8.8	2.44	81.2	31	2900	11	2.3	145
40-250(I)	12.5	3.47	80	38	2900	11	2.3	145
40-250(I)	16.3	4.53	77.5	40	2900	11	2.3	145
40-250(I)A	8.2	2.28	71	38	2900	7.5	2.3	95
40-250(I)A	11.7	3.22	70	38	2900	7.5	2.3	95
40-250(I)A	15.2	4.22	68	38	2900	7.5	2.3	95
40-250(I)B	7.6	2.11	61.4	37	2900	5.5	2.3	94
40-250(I)B	10.8	3	60	37	2900	5.5	2.3	94
40-250(I)B	14	3.89	58	37	2900	5.5	2.3	94
40-250(I)C	7.1	1.97	53.2	36	2900	5.5	2.3	88
40-250(I)C	10	2.78	52	36	2900	5.5	2.3	88
40-250(I)C	13.1	3.64	50.4	36	2900	5.5	2.3	88
50-100	8.8	2.44	13.6	55	2900	1.1	2.3	36
50-100	12.5	3.47	12.5	62	2900	1.1	2.3	36
50-100	16.3	4.53	11.3	60	2900	1.1	2.3	36
50-100A	8	2.22	11	60	2900	0.75	2.3	35
50-100A	11	3.05	10	60	2900	0.75	2.3	35
50-100A	14.5	4.03	9	60	2900	0.75	2.3	35
50-125	8.8	2.44	21.5	49	2900	1.5	2.3	43
50-125	12.5	3.47	20	58	2900	1.5	2.3	43
50-125	16.3	4.53	17.8	57	2900	1.5	2.3	43
50-125A	8	2.22	17	57	2900	1.1	2.3	38
50-125A	11	3.05	16	57	2900	1.1	2.3	38
50-125A	14.5	4.03	14	57	2900	1.1	2.3	38
50-160	8.8	2.44	33	45	2900	3	2.3	59
50-160	12.5	3.47	32	52	2900	3	2.3	59
50-160	16.3	4.53	30	51	2900	3	2.3	59
50-160A	8.2	2.28	29	44	2900	2.2	2.3	51
50-160A	11.7	3.25	28	51	2900	2.2	2.3	51
50-160A	15.2	4.22	26	50	2900	2.2	2.3	51
50-160B	7.3	2.38	23	50	2900	1.5	2.3	47
50-160B	10.4	2.89	22	50	2900	1.5	2.3	47
50-160B	13.5	3.75	20.5	50	2900	1.5	2.3	47
50-200	8.8	2.44	52	38	2900	5.5	2.3	101
50-200	12.5	3.47	50	46	2900	5.5	2.3	101
50-200	16.3	4.53	48	46	2900	5.5	2.3	101
50-200A	8.3	2.31	45.8	37	2900	4	2.3	80
50-200A	11.7	3.25	44	45	2900	4	2.3	80
50-200A	15.3	4.25	48	45	2900	4	2.3	80
50-200B	7.5	2.08	37	44	2900	3	2.3	68
50-200B	10.6	2.94	36	44	2900	3	2.3	68
50-200B	13.8	3.83	34	44	2900	3	2.3	68
50-250	8.8	2.44	82	29	2900	11	2.3	160
50-250	12.5	3.47	80	38	2900	11	2.3	160
50-250	16.3	4.53	77.5	40	2900	11	2.3	160
50-250A	8.2	2.28	71.5	38	2900	7.5	2.3	115
50-250A	11.6	3.22	70	38	2900	7.5	2.3	115
50-250A	15.2	4.22	68	38	2900	7.5	2.3	115
50-250B	7.6	2.11	61.4	37	2900	5.5	2.3	114
50-250B	10.8	3	60	37	2900	5.5	2.3	114
50-250B	14	3.89	58	37	2900	5.5	2.3	114
50-250C	7.1	1.97	53.2	36	2900	5.5	2.3	108
50-250C	10	2.78	52	36	2900	5.5	2.3	108
50-250C	13.1	3.64	50.4	36	2900	5.5	2.3	108
50-100(I)	17.5	4.86	13.7	67	2900	1.5	2.5	41
50-100(I)	25	6.94	12.5	69	2900	1.5	2.5	41
50-100(I)	32.5	9.03	10.5	69	2900	1.5	2.5	41
50-100(I)A	15.6	4.3	11	65	2900	1.1	2.5	36
50-100(I)A	22.3	6.19	10	67	2900	1.1	2.5	36
50-100(I)A	29	8.1	8.4	68	2900	1.1	2.5	36
50-125(I)	17.5	4.86	21.5	60	2900	3	2.5	56
50-125(I)	25	6.94	20	68	2900	3	2.5	56
50-125(I)	32.5	9.03	18	67	2900	3	2.5	56
50-125(I)A	15.6	4.33	17	58	2900	2.2	2.5	48
50-125(I)A	22.3	6.19	16	66	2900	2.2	2.5	48
50-125(I)A	29	8.1	13.6	65	2900	2.2	2.5	48
50-160(I)	17.5	4.68	34.4	54	2900	4	2.5	72
50-160(I)	25	6.94	32	63	2900	4	2.5	72
50-160(I)	32.5	9.03	27.5	60	2900	4	2.5	72
50-160(I)A	16.4	4.56	30	54	2900	3	2.5	71
50-160(I)A	23.4	6.5	28	62	2900	3	2.5	71
50-160(I)A	30.4	8.44	24	59	2900	3	2.5	71
50-160(I)B	15	4.17	26	58	2900	2.2	2.5	59
50-160(I)B	21.6	6	24	58	2900	2.2	2.5	59
50-160(I)B	28	7.78	20.6	58	2900	2.2	2.5	59
50-200(I)	17.5	4.86	52.7	49	2900	7.5	2.5	108
50-200(I)	25	6.94	50	58	2900	7.5	2.5	108
50-200(I)	32.5	9.03	45.5	59	2900	7.5	2.5	108
50-200(I)A	16.4	4.56	46.4	48	2900	5.5	2.5	107
50-200(I)A	23.5	6.53	44	57	2900	5.5	2.5	107
50-200(I)A	30.5	8.47	40	58	2900	5.5	2.5	107
50-200(I)B	15.2	4.22	40	55	2900	4	2.5	100
50-200(I)B	21.8	6.06	38	55	2900	4	2.5	100
50-200(I)B	28.3	7.86	34.5	55	2900	4	2.5	100
50-250(I)	17.5	4.86	82	39	2900	15	2.5	175
50-250(I)	25	6.94	80	50	2900	15	2.5	175
50-250(I)	32.5	9.03	76.5	52	2900	15	2.5	175
50-250(I)A	16.4	4.56	71.5	39	2900	11	2.5	165
50-250(I)A	23.4	6.5	70	50	2900	11	2.5	165
50-250(I)A	30.5	8.47	67	52	2900	11	2.5	165
50-250(I)B	15	4.17	61	38	2900	7.5	2.5	165
50-250(I)B	21.6	6	60	49	2900	7.5	2.5	165
50-250(I)B	28	7.78	57.4	54	2900	7.5	2.5	165
50-315(I)	17.5	4.86	128	30	2900	30	2.5	310
50-315(I)	25	6.94	125	40	2900	30	2.5	310
50-315(I)	32.5	9.03	122	44	2900	30	2.5	310
50-315(I) A	16.6	4.16	115	30	2900	22	2.5	245
50-315(I) A	23.7	6.58	113	40	2900	22	2.5	245
50-315(I) A	31	8.6	110	44	2900	22	2.5	245
50-315(I) B	15.7	4.36		39	2900	18.5	2.5	215
50-315(I) B	22.5	6.25	101	39	2900	18.5	2.5	215
50-315(I) B	29.2	8		39	2900	18.5	2.5	215
50-315(I) C	14.4	4	86	38	2900	15	2.5	195
50-315(I) C	20.6	5.72	85	38	2900	15	2.5	195
50-315(I) C	26.8	7.44	83	38	2900	15	2.5	195
65-100	17.5	4.86	13.7	67	2900	1.5	2.5	46
65-100	25	6.94	12.5	69	2900	1.5	2.5	46
65-100	32.5	9.03	10.5	69	2900	1.5	2.5	46
65-100A	15.6	4.3	11	65	2900	1.1	2.5	41
65-100A	22.3	6.19	10	67	2900	1.1	2.5	41
65-100A	29	8.1	8.4	68	2900	1.1	2.5	41
65-125	17.5	4.86	21.5	60	2900	3	2.5	58
65-125	25	6.94	20	68	2900	3	2.5	58
65-125	32.5	9.03	18	67	2900	3	2.5	58
65-125A	15.6	4.33	17	58	2900	2.2	2.5	49
65-125A	22.3	6.19	16	66	2900	2.2	2.5	49
65-125A	29	8.1	14.4	65	2900	2.2	2.5	49
65-160	17.5	4.86	34.4	54	2900	4	2.5	75
65-160	25	6.94	32	63	2900	4	2.5	75
65-160	32.5	9.03	27.5	60	2900	4	2.5	75
65-160A	16.4	4.56	30	54	2900	3	2.5	75
65-160A	23.4	6.5	28	62	2900	3	2.5	75
65-160A	30.4	8.44	24	59	2900	3	2.5	75
65-160B	15	4.17	26	58	2900	2.2	2.5	63
65-160B	21.6	6	24	58	2900	2.2	2.5	63
65-160B	28	7.78	20.6	58	2900	2.2	2.5	63
65-200	17.5	4.86	52.7	49	2900	7.5	2.5	107
65-200	25	6.94	50	58	2900	7.5	2.5	107
65-200	32.5	9.03	45.5	59	2900	7.5	2.5	107
65-200A	16.4	4.56	46.4	48	2900	5.5	2.5	107
65-200A	23.5	6.53	44	57	2900	5.5	2.5	107
65-200A	30.5	8.47	40	58	2900	5.5	2.5	107
65-200B	15.2	4.22	40	55	2900	4	2.5	100
65-200B	21.8	6.06	38	55	2900	4	2.5	100
65-200B	28.3	7.86	34.5	55	2900	4	2.5	100
65-250	17.5	4.86	82	39	2900	15	2.5	180
65-250	25	6.94	80	50	2900	15	2.5	180
65-250	32.5	9.03	76.5	52	2900	15	2.5	180
65-250A	16.4	4.56	71.5	39	2900	11	2.5	170
65-250A	23.4	6.5	70	50	2900	11	2.5	170
65-250A	30.5	8.47	67	52	2900	11	2.5	170
65-250B	15	4.17	61	38	2900	7.5	2.5	170
65-250B	21.6	6	60	49	2900	7.5	2.5	170
65-250B	28	7.78	57.4	54	2900	7.5	2.5	170
65-315	17.5	4.86	127	32	2900	30	2.5	320
65-315	25	6.94	125	40	2900	30	2.5	320
65-315	32.5	9.03	122	44	2900	30	2.5	320
65-315A	16.6	4.61	115	32	2900	22	2.5	255
65-315A	23.7	6.58	113	40	2900	22	2.5	255
65-315A	31	8.6	110	44	2900	22	2.5	255
65-315B	15.7	4.36	103	39	2900	18.5	2.5	255
65-315B	22.5	6.25	101	39	2900	18.5	2.5	255
65-315B	29.2	8	98	39	2900	18.5	2.5	255
65-315C	14.4	4	86	38	2900	15	2.5	205
65-315C	20.6	5.72	85	38	2900	15	2.5	205
65-315C	26.8	7.44	83	38	2900	15	2.5	205
65-100(I)	35	9.72	13.8	67	2900	3	3	63
65-100(I)	50	13.9	12.5	73	2900	3	3	63
65-100(I)	65	18.1	10	70	2900	3	3	63
65-100(I)A	31.3	8.7	11	66	2900	2.2	3	53
65-100(I)A	44.7	12.4	10	72	2900	2.2	3	53
65-100(I)A	58	16.1	8	69	2900	2.2	3	53
65-125(I)	35	9.72	22	67	2900	5.5	3	99
65-125(I)	50	13.9	20	72	2900	5.5	3	99
65-125(I)	65	18.1	17	70	2900	5.5	3	99
65-125(I)A	31.3	8.7	17.5	66	2900	4	3	78
65-125(I)A	45	12.5	16	71	2900	4	3	78
65-125(I)A	58	16.1	13.6	69	2900	4	3	78
65-160(I)	35	9.27	35	63	2900	7.5	3	103
65-160(I)	50	13.9	32	71	2900	7.5	3	103
65-160(I)	65	18.1	28	70	2900	7.5	3	103
65-160(I)A	32.7	9.1	30.6	62	2900	5.5	3	103
65-160(I)A	46.7	13	28	70	2900	5.5	3	103
65-160(I)A	61	16.9	24	69	2900	5.5	3	103
65-160(I)B	30.3	8.4	26	69	2900	4	3	97
65-160(I)B	43.3	12	24	69	2900	4	3	97
65-160(I)B	56.3	15.6	21	69	2900	4	3	97
65-200(I)	35	9.72	53.5	55	2900	15	3	176
65-200(I)	50	13.1	50	67	2900	15	3	176
65-200(I)	65	16.9	46	68	2900	15	3	176
65-200(I)A	32.8	9.1	47	54	2900	11	3	166
65-200(I)A	47	13.1	44	66	2900	11	3	166
65-200(I)A	61	16.9	40	67	2900	11	3	166
65-200(I)B	30.5	8.5	40.6	65	2900	7.5	3	114
65-200(I)B	43.5	12.1	38	65	2900	7.5	3	114
65-200(I)B	56.6	15.7	33.4	65	2900	7.5	3	114
65-250(I)	35	9.72	83	52	2900	22	3	235
65-250(I)	50	13.9	80	59	2900	22	3	235
65-250(I)	65	18.1	72	60	2900	22	3	235
65-250(I)A	32.5	9	73	52	2900	18.5	3	105
65-250(I)A	46.7	13	70	59	2900	18.5	3	105
65-250(I)A	61	16.9	63	60	2900	18.5	3	105
65-250(I)B	30	8.3	62	58	2900	15	3	180
65-250(I)B	43.3	12	60	58	2900	15	3	180
65-250(I)B	56	15.6	54	58	2900	15	3	180
65-315(I)	35	9.27	128	44	2900	37	3	350
65-315(I)	50	13.9	125	54	2900	37	3	350
65-315(I)	65	18.1	121	57	2900	37	3	350
65-315(I)A	32.5	9	112.6	43	2900	30	3	335
65-315(I)A	46.5	12.9	110	54	2900	30	3	335
65-315(I)A	60.5	16.8	106.4	57	2900	30	3	335
65-315(I)B	31	8.6	102.5	53	2900	30	3	335
65-315(I)B	44.5	12.4	100	53	2900	30	3	335
65-315(I)B	58	16.1	98	53	2900	30	3	335
65-315(I)C	29	8.1	87	51	2900	22	3	270
65-315(I)C	41	11.4	85	51	2900	22	3	270
65-315(I)C	53.6	14.9	83	51	2900	22	3	270
80-100	35	9.72	13.8	67	2900	3	3	63
80-100	50	13.9	12.5	73	2900	3	3	63
80-100	65	18.1	10	70	2900	3	3	63
80-100A	31.3	8.7	11	66	2900	2.2	3	54
80-100A	44.7	12.5	10	72	2900	2.2	3	54
80-100A	58	16.1	8	69	2900	2.2	3	54
80-125	35	9.72	22	67	2900	5.5	3	99
80-125	50	13.9	20	72	2900	5.5	3	99
80-125	65	18.1	17	70	2900	5.5	3	99
80-125A	31.3	8.7	17.5	66	2900	4	3	79
80-125A	45	12.5	16	71	2900	4	3	79
80-125A	58	16.1	13.6	69	2900	4	3	79
80-160	35	9.72	35	63	2900	7.5	3	105
80-160	50	13.9	32	71	2900	7.5	3	105
80-160	65	18.1	28	70	2900	7.5	3	105
80-160A	32.7	9.1	30.6	62	2900	5.5	3	105
80-160A	46.7	13	28	70	2900	5.5	3	105
80-160A	61	16.9	24	69	2900	5.5	3	105
80-160B	30.3	8.4	26	69	2900	4	3	98
80-160B	43.3	12	24	69	2900	4	3	98
80-160B	56.3	15.6	21	69	2900	4	3	98
80-200	35	9.72	53.5	55	2900	15	3	175
80-200	50	13.9	50	67	2900	15	3	175
80-200	65	18.1	46	68	2900	15	3	175
80-200A	32.8	9.1	47	54	2900	11	3	165
80-200A	47	13.1	44	66	2900	11	3	165
80-200A	61	16.9	40	67	2900	11	3	165
80-200B	30.5	8.5	40.6	65	2900	7.5	3	115
80-200B	43.5	12.1	38	65	2900	7.5	3	115
80-200B	56.6	15.7	33.4	65	2900	7.5	3	115
80-250	35	9.72	83	52	2900	22	3	240
80-250	50	13.9	80	59	2900	22	3	240
80-250	65	18.1	72	60	2900	22	3	240
80-250A	32.5	9	73	52	2900	18.5	3	210
80-250A	46.7	13	70	59	2900	18.5	3	210
80-250A	61	16.9	63	60	2900	18.5	3	210
80-250B	30	8.3	62	58	2900	15	3	185
80-250B	43.3	12	60	58	2900	15	3	185
80-250B	56	15.6	54	58	2900	15	3	185
80-315	35	9.72	128	43	2900	37	3	355
80-315	50	13.9	125	54	2900	37	3	355
80-315	65	18.1	122	57	2900	37	3	355
80-315A	32.5	9	112.6	43	2900	30	3	340
80-315A	46.5	12.9	110	54	2900	30	3	340
80-315A	60.5	16.8	107.4	57	2900	30	3	340
80-315B	31	8.6	102.5	53	2900	30	3	340
80-315B	44.5	12.4	100	53	2900	30	3	340
80-315B	58	16.1	98	53	2900	30	3	340
80-315C	29	8.1	98	51	2900	22	3	275
80-315C	41	11.4	85	51	2900	22	3	275
80-315C	53.6	14.9	83	51	2900	22	3	275
80-350	35	9.72	146	55	2900	55	3	570
80-350	50	13.9	150	66	2900	55	3	570
80-350	65	18.1	142	67	2900	55	3	570
80-350A	31	8.6	138.4	65	2900	45	3	470
80-350A	44.5	12.4	142	65	2900	45	3	470
80-350A	58	16.1	134.8	65	2900	45	3	470
80-350B	29	8.1	131.4	63	2900	37	3	440
80-350B	41	11.4	135	63	2900	37	3	440
80-350B	53.6	14.9	127.8	63	2900	37	3	440
80-100(I)	70	19.4	13.6	66	2900	5.5	4.5	108
80-100(I)	100	27.8	12.5	76	2900	5.5	4.5	108
80-100(I)	130	36.1	11	75	2900	5.5	4.5	108
80-100(I)A	62.6	17.4	11	64	2900	4	4.5	87
80-100(I)A	89	24.7	10	74	2900	4	4.5	87
80-100(I)A	116	32.2	8.8	74	2900	4	4.5	87
80-125(I)	70	19.4	23.5	70	2900	11	4.5	163
80-125(I)	100	27.8	20	76	2900	11	4.5	163
80-125(I)	130	36.1	14	65	2900	11	4.5	163
80-125(I)A	62.6	17.4	19	68	2900	7.5	4.5	113
80-125(I)A	89	24.7	16	74	2900	7.5	4.5	113
80-125(I)A	116	32.2	11	65	2900	7.5	4.5	113
80-160(I)	70	19.4	36.5	70	2900	15	4.5	184
80-160(I)	100	27.8	32	76	2900	15	4.5	184
80-160(I)	130	36.1	24	65	2900	15	4.5	184
80-160(I)A	65.4	18.2	32	68	2900	11	4.5	174
80-160(I)A	93.5	26	28	74	2900	11	4.5	174
80-160(I)A	121.6	33.8	21	67	2900	11	4.5	174
80-160(I)B	60.6	16.8	27	72	2900	7.5	4.5	174
80-160(I)B	86.6	24.1	24	72	2900	7.5	4.5	174
80-160(I)B	112.5	31.3	18	72	2900	7.5	4.5	174
80-200(I)	70	19.4	54	65	2900	22	4.5	251
80-200(I)	100	27.8	50	74	2900	22	4.5	251
80-200(I)	130	36.1	42	73	2900	22	4.5	251
80-200(I)A	65.4	18.2	47.5	67	2900	18.5	4.5	220
80-200(I)A	93.5	26	44	73	2900	18.5	4.5	220
80-200(I)A	121.6	33.8	37	72	2900	18.5	4.5	220
80-200(I)B	61	16.9	41	71	2900	15	4.5	198
80-200(I)B	87	24.2	38	71	2900	15	4.5	198
80-200(I)B	113	31.4	32	71	2900	15	4.5	198
80-250 (I) B	61	16.9	65	66	2900	22	4	315
80-250 (I) B	87	24.2	60	66	2900	22	4	315
80-250 (I) B	113	31.4	51	66	2900	22	4	315
80-315 (I)	70	19.4	132	55	2900	75	4	675
80-315 (I)	100	27.8	125	66	2900	75	4	675
80-315 (I)	130	36.1	114	67	2900	75	4	675
80-315 (I) A	66.5	18.5	119	55	2900	55	4	535
80-315 (I) A	95	26.4	113	66	2900	55	4	535
80-315 (I) A	123.6	34.3	103	67	2900	55	4	535
80-315 (I) B	63	17.5	106.6	65	2900	45	4	420
80-315 (I) B	90	25	101	65	2900	45	4	420
80-315 (I) B	117	32.5	92	65	2900	45	4	420
80-315 (I) C	58	16.1	90	63	2900	37	4	366
80-315 (I) C	82	22.8	85	63	2900	37	4	366
80-315 (I) C	107	29.7	76	63	2900	37	4	366
100-100	70	19.4	13.6	66	2900	5.5	4.5	113
100-100	100	27.8	12.5	76	2900	5.5	4.5	113
100-100	130	36.1	11	75	2900	5.5	4.5	113
100-100A	62.6	17.4	11	64	2900	4	4.5	91
100-100A	89	47	10	74	2900	4	4.5	91
100-100A	116	32.2	8.8	74	2900	4	4.5	91
100-125	70	19.4	23.5	70	2900	11	4.5	169
100-125	100	27.8	20	76	2900	11	4.5	169
100-125	130	36.1	14	65	2900	11	4.5	169
100-125A	62.6	17.4	19	68	2900	7.5	4.5	118
100-125A	89	24.7	16	74	2900	7.5	4.5	118
100-125A	116	32.2	11	63	2900	7.5	4.5	118
100-160	70	19.4	36.5	70	2900	15	4.5	191
100-160	100	27.8	32	76	2900	15	4.5	191
100-160	130	36.1	24	65	2900	15	4.5	191
100-160A	65.4	18.2	32	68	2900	11	4.5	181
100-160A	93.5	26	28	74	2900	11	4.5	181
100-160A	121.6	33.8	21	67	2900	11	4.5	181
100-160B	60.6	16.8	27	72	2900	7.5	4.5	181
100-160B	86.6	24.1	24	72	2900	7.5	4.5	181
100-160B	112.5	31.3	18	72	2900	7.5	4.5	181
100-200	70	19.4	54	65	2900	22	4	245
100-200	100	27.8	50	74	2900	22	4	245
100-200	130	36.1	42	73	2900	22	4	245
100-200A	65.4	18.2	47.5	64	2900	18.5	4	215
100-200A	93.5	26	44	73	2900	18.5	4	215
100-200A	121.6	33.8	37	72	2900	18.5	4	215
100-200B	61	16.9	41	71	2900	15	4	193
100-200B	87	24.2	38	71	2900	15	4	193
100-200B	113	31.4	32	71	2900	15	4	193
100-250	70	19.4	87	62	2900	37	4	345
100-250	100	27.8	80	69	2900	37	4	345
100-250	130	36.1	68	68	2900	37	4	345
100-250A	65.4	18.2	76	61	2900	30	4	330
100-250A	93.5	26	70	68	2900	30	4	330
100-250A	121.6	33.8	59.5	67	2900	30	4	330
100-250B	61	16.9	65	66	2900	22	4	330
100-250B	87	24.2	60	66	2900	22	4	330
100-250B	113	31.4	51	66	2900	22	4	330
100-315	70	19.4	132	55	2900	75	4	689
100-315	100	27.8	125	66	2900	75	4	689
100-315	130	36.1	114	67	2900	75	4	689
100-315A	66.5	18.5	119	65	2900	55	4	549
100-315A	95	26.4	113	66	2900	55	4	549
100-315A	123.6	34.3	103	67	2900	55	4	549
100-315B	63	17.5	106.6	65	2900	45	4	439
100-315B	90	25	101	65	2900	45	4	439
100-315B	117	32.5	92	65	2900	45	4	439
100-315C	58	16.1	90	63	2900	37	4	385
100-315C	82	22.8	85	63	2900	37	4	385
100-315C	107	29.7	76	63	2900	37	4	385
100-100(I)	96	26.7	14	64	2900	11	4.5	115
100-100(I)	160	44.4	12.5	73	2900	11	4.5	115
100-100(I)	192	53.3	10	70	2900	11	4.5	115
100-125(I)	96	26.7	24	62	2900	15	4.5	168
100-125(I)	160	44.4	20	74	2900	15	4.5	168
100-125(I)	192	53.3	14	69	2900	15	4.5	168
100-125(I)A	84	23.3	20	64	2900	11	4.5	168
100-125(I)A	140	39	17	72	2900	11	4.5	168
100-125(I)A	168	46.7	12	68	2900	11	4.5	168
100-160(I)	96	26.7	36	69	2900	22	5.6	210
100-160(I)	160	44.4	32	79	2900	22	5.6	210
100-160(I)	192	53.3	27	75	2900	22	5.6	210
100-160(I)A	84	23.3	32	66	2900	18.5	5	210
100-160(I)A	140	39	28	76	2900	18.5	5	210
100-160(I)A	168	46.7	23.5	72	2900	18.5	5	210
100-200(I)	96	26.7	53	69	2900	37	5.2	402
100-200(I)	160	44.4	50	79	2900	37	5.2	402
100-200(I)	192	53.3	45	78	2900	37	5.2	402
100-200(I)A	84	23.3	48	64	2900	30	4.5	395
100-200(I)A	140	39	45	74	2900	30	4.5	395
100-200(I)A	168	46.7	40	73	2900	30	4.5	395
100-200(I)B	60	16.7	43	72	2900	22	4.5	360
100-200(I)B	100	27.8	40	72	2900	22	4.5	360
100-200(I)B	120	33.3	36	72	2900	22	4.5	360
100-250(I)	96	26.7	83	65	2900	55	4.8	560
100-250(I)	160	44.4	80	77	2900	55	4.8	560
100-250(I)	192	53.3	72	74	2900	55	4.8	560
100-250(I)A	84	23.3	75	60	2900	45	4.5	420
100-250(I)A	140	39	72	72	2900	45	4.5	420
100-250(I)A	168	46.7	65	69	2900	45	4.5	420
100-250(I)B	60	16.7	68	70	2900	37	4.5	400
100-250(I)B	100	27.8	65	70	2900	37	4.5	400
100-250(I)B	120	33.3	58	70	2900	37	4.5	400
100-350	60	16.7	153.6	72	2900	90	4	950
100-350	100	27.8	150	57	2900	90	4	950
100-350	120	33.3	142	74	2900	90	4	950
100-350A	61	16.9	145.6	75	2900	75	4	830
100-350A	87	24.2	142	75	2900	75	4	830
100-350A	113	31.4	134	75	2900	75	4	830
100-350B	58	16.1	138.6	75	2900	55	4	600
100-350B	82	22.8	135	75	2900	55	4	600
100-350B	107	29.7	127	75	2900	55	4	600
125-100	96	26.7	13	82	2900	11	4	180
125-100	160	44.4	12.5	82	2900	11	4	180
125-100	192	53.3	12	82	2900	11	4	180
125-100A	86	23.9	10.4	77	2900	7.5	4	125
125-100A	143	39.7	10	77	2900	7.5	4	125
125-100A	172	47.8	9.6	77	2900	7.5	4	125
125-125	96	26.7	22.6	80	2900	15	4	220
125-125	160	44.4	20	80	2900	15	4	220
125-125	192	53.3	17	80	2900	15	4	220
125-125A	86	23.9	18	77	2900	11	4	210
125-125A	143	39.7	16	77	2900	11	4	210
125-125A	172	47.8	13.6	77	2900	11	4	210
125-160	96	26.7	36	78	2900	22	4	265
125-160	160	44.4	32	78	2900	22	4	265
125-160	192	53.3	28	78	2900	22	4	265
125-160A	90	25	31.5	76	2900	18.5	4	230
125-160A	150	41.7	28	76	2900	18.5	4	230
125-160A	180	50	24.5	76	2900	18.5	4	230
125-160B	83	21.7	27	73	2900	15	4	215
125-160B	138	38.3	24	73	2900	15	4	215
125-160B	166	46.1	21	73	2900	15	4	215
125-200	96	26.7	55	77	2900	37	5.5	395
125-200	160	44.4	50	77	2900	37	5.5	395
125-200	192	53.3	46	77	2900	37	5.5	395
125-200A	90	25	48.4	76	2900	30	5.5	380
125-200A	150	41.7	44	76	2900	30	5.5	380
125-200A	180	50	40.5	76	2900	30	5.5	380
125-200B	83	21.7	41.3	75	2900	22	5.5	320
125-200B	138	38.3	37.5	75	2900	22	5.5	320
125-200B	166	46.1	34.5	75	2900	22	5.5	320
125-250	96	26.7	87	75	2900	55	5	580
125-250	160	44.4	80	75	2900	55	5	580
125-250	192	53.3	73	75	2900	55	5	580
125-250A	90	25	76	74	2900	45	5.5	490
125-250A	150	41.7	70	74	2900	45	5.5	490
125-250A	180	50	84	74	2900	45	5.5	490
125-250B	83	21.7	65	73	2900	37	5.5	430
125-250B	138	38.3	60	73	2900	37	5.5	430
125-250B	166	46.1	55	73	2900	37	5.5	430
125-315	96	26.7	133	70	2900	90	5	790
125-315	160	44.7	125	70	2900	90	5	790
125-315	192	53.3	119	70	2900	90	5	790
125-315A	90	25	117	70	2900	75	5	710
125-315A	150	41.7	110	70	2900	75	5	710
125-315A	180	50	104.6	70	2900	75	5	710
125-315B	86	23.9	106.4	69	2900	75	5	705
125-315B	143	39.7	100	69	2900	75	5	705
125-315B	172	47.8	95.2	69	2900	75	5	705
125-315C	80.5	22.4	96	67	2900	55	5	585
125-315C	134	37.2	88	67	2900	55	5	585
125-315C	161	44.7	86	67	2900	55	5	585
150-125	96	26.7	22.6	66	2900	11	4	210
150-125	160	44.7	24	76	2900	11	4	210
150-125	192	53.3	17	76	2900	11	4	210
150-125A	90	25	18	77	2900	7.5	4	130
150-125A	150	41.7	16	77	2900	7.5	4	130
150-125A	180	50	13.6	77	2900	7.5	4	130
150-160	96	26.7	36	75	2900	22	4	270
150-160	160	44.4	32	75	2900	22	4	270
150-160	192	53.3	27	75	2900	22	4	270
150-160A	90	25	32	76	2900	18.5	4	230
150-160A	150	41.7	28	76	2900	18.5	4	230
150-160A	180	50	23.5	76	2900	18.5	4	230
150-160B	84	23.3	27	73	2900	15	4	220
150-160B	140	39	24	73	2900	15	4	220
150-160B	168	46.7	21	73	2900	15	4	220
150-200	140	38.9	13.8	68	1450	15	3	265
150-200	200	55.6	12.5	78	1450	15	3	265
150-200	260	72.2	10.6	78	1450	15	3	265
150-200A	125	34.7	11	66	1450	11	3	244
150-200A	176	49.7	10	76	1450	11	3	244
150-200A	232.5	64.6	8.5	76	1450	11	3	244
150-200B	84	23.3	41	75	2900	22	4	275
150-200B	140	39	38	75	2900	22	4	275
150-200B	168	46.7	34	75	2900	22	4	275
150-250	140	38.9	21.8	73	1450	18.5	3	300
150-250	200	55.6	20	79	1450	18.5	3	300
150-250	260	72.2	17	77	1450	18.5	3	300
150-250A	129	35.8	18.5	72	1450	15	3	262
150-250A	184.4	51.2	17	78	1450	15	3	262
150-250A	240	66.7	14.4	76	1450	15	3	262
150-250B	117	32.5	15.2	76	1450	11	3	241
150-250B	167	46.4	14	76	1450	11	3	241
150-250B	217.5	60.4	12	76	1450	11	3	241
150-315	140	38.9	33.8	70	1450	30	2.5	410
150-315	200	55.6	32	78	1450	30	2.5	410
150-315	260	72.2	28	73	1450	30	2.5	410
150-315A	131	36.4	29.5	69	1450	22	3.5	335
150-315A	187	51.9	28	77	1450	22	3.5	335
150-315A	243	67.5	24.5	77	1450	22	3.5	335
150-315B	121	33.5	25	76	1450	18.5	3.5	315
150-315B	173	48.1	24	76	1450	18.5	3.5	315
150-315B	225	62.5	21	76	1450	18.5	3.5	315
150-350	96	26.7	153.6	80	2900	110	5.5	970
150-350	160	44.4	150	80	2900	110	5.5	970
150-350	192	53.3	142.8	80	2900	110	5.5	970
150-350A	90	25	145.6	70	2900	90	5.2	790
150-350A	150	41.7	142	70	2900	90	5.2	790
150-350A	180	50	134.8	70	2900	90	5.2	790
150-350B	84	23.3	138.6	65	2900	75	5.5	705
150-350B	140	39	135	76	2900	75	5.5	705
150-350B	168	46.7	127.8	74	2900	75	5.5	705
150-400	140	38.9	53	68	1450	45	3.5	490
150-400	200	55.6	50	75	1450	45	3.5	490
150-400	260	72.2	44	71	1450	45	3.5	490
150-400A	131	36.4	46.6	67	1450	37	3.5	454
150-400A	187	51.9	44	74	1450	37	3.5	454
150-400A	243	67.5	38.3	70	1450	37	3.5	454
150-400B	122	33.9	40	73	1450	30	3.5	435
150-400B	174	48.3	38	73	1450	30	3.5	435
150-400B	226.5	62.9	33	73	1450	30	3.5	435
150-400C	112	31.1	34	71	1450	22	3.5	365
150-400C	160	44.4	32	71	1450	22	3.5	365
150-400C	208	57.8	28	71	1450	22	3.5	365
150-250(I)	120	33.3	87	65	2900	75	4.5	702
150-250(I)	200	55.6	80	76	2900	75	4.5	702
150-250(I)	240	66.7	72	74	2900	75	4.5	702
150-250(I)A	112	31.1	76	64	2900	55	4.5	561
150-250(I)A	187	51.9	70	75	2900	55	4.5	561
150-250(I)A	224	62.2	63	73	2900	55	4.5	561
150-250(I)B	104	28.9	65	63	2900	45	4.5	460
150-250(I)B	173	48.1	60	74	2900	45	4.5	460
150-250(I)B	208	57.8	54	72	2900	45	4.5	460
150-315(I)	120	33.3	133	58	2900	110	4.5	980
150-315(I)	200	55.6	125	73	2900	110	4.5	980
150-315(I)	240	66.7	120	75	2900	110	4.5	980
150-315(I)A	112	31.1	116	57	2900	90	4.5	800
150-315(I)A	187	51.9	110	72	2900	90	4.5	800
150-315(I)A	224	62.2	105	74	2900	90	4.5	800
150-315(I)B	104	28.9	100	55	2900	75	4.5	724
150-315(I)B	173	48.1	95	70	2900	75	4.5	724
150-315(I)B	208	57.8	91	72	2900	75	4.5	724
200-200	140	38.9	13.8	68	1450	15	3	265
200-200	200	55.6	12.5	78	1450	15	3	265
200-200	260	72.2	10.6	78	1450	15	3	265
200-200A	125	34.7	11	66	1450	11	3	244
200-200A	179	49.7	10	76	1450	11	3	244
200-200A	232.5	64.6	8.5	76	1450	11	3	244
200-250	140	38.9	21.8	73	1450	18.5	3	305
200-250	200	55.6	20	79	1450	18.5	3	305
200-250	260	72.2	17	77	1450	18.5	3	305
200-250A	129	35.8	18.5	72	1450	15	3	267
200-250A	184.4	51.2	17	78	1450	15	3	267
200-250A	240	66.7	14.4	76	1450	15	3	267
200-250B	117	32.5	15.2	76	1450	11	3	246
200-250B	167	46.4	14	76	1450	11	3	246
200-250B	217.5	60.4	12	76	1450	11	3	246
200-315	140	38.9	33.8	70	1450	30	3.5	417
200-315	200	55.6	32	78	1450	30	3.5	417
200-315	260	72.2	28	78	1450	30	3.5	417
200-315A	131	36.4	29.5	69	1450	22	3.5	342
200-315A	189	51.9	28	77	1450	22	3.5	342
200-315A	243	67.5	24.5	77	1450	22	3.5	342
200-315B	121	33.6	25	76	1450	18.5	3.5	322
200-315B	173	48.1	24	76	1450	18.5	3.5	322
200-315B	225	62.5	21	76	1450	18.5	3.5	322
200-400	140	38.9	53	68	1450	45	3.5	498
200-400	200	55.6	50	75	1450	45	3.5	498
200-400	260	72.2	44	71	1450	45	3.5	498
200-400A	131	36.4	46.6	67	1450	37	3.5	462
200-400A	187	51.9	44	74	1450	37	3.5	462
200-400A	243	67.5	38.3	70	1450	37	3.5	462
200-400B	122	33.9	40	73	1450	30	3.5	443
200-400B	174	48.6	38	73	1450	30	3.5	443
200-400B	226.5	62.9	33	73	1450	30	3.5	443
200-400C	112	31.3	34	71	1450	22	3.5	373
200-400C	160	44.4	32	71	1450	22	3.5	373
200-400C	208	57.8	28	71	1450	22	3.5	373
200-200(I)	280	77.8	13.4	70	1450	22	4	382
200-200(I)	400	111.1	12.5	80	1450	22	4	382
200-200(I)	520	144	10.5	79	1450	22	4	382
200-200(I)A	250	69.4	10.7	68	1450	18.5	4	346
200-200(I)A	358	99.4	10	78	1450	18.5	4	346
200-200(I)A	465	129.2	8.5	77	1450	18.5	4	346
200-250(I)	280	77.8	22.2	75	1450	30	4	475
200-250(I)	400	111.4	20	80	1450	30	4	475
200-250(I)	520	144	14	72	1450	30	4	475
200-250(I)A	250	69.4	18	73	1450	22	4	405
200-250(I)A	358	99.6	14	78	1450	22	4	405
200-250(I)A	465	129.2	11.2	70	1450	22	4	405
200-250(I)B	226	62.8	14.4	70	1450	18.5	4	387
200-250(I)B	322	89.4	13	75	1450	18.5	4	387
200-250(I)B	419	116.4	7.3	67	1450	18.5	4	387
200-315(I)	280	77.8	36	73	1450	55	4	675
200-315(I)	400	111.4	32	80	1450	55	4	675
200-315(I)	520	144	26	75	1450	55	4	675
200-315(I)A	262	72.8	31.5	72	1450	45	4	560
200-315(I)A	374	103.9	28	79	1450	45	4	560
200-315(I)A	486	135	23	74	1450	45	4	560
200-315(I)B	242	67.2	27	78	1450	37	4	535
200-315(I)B	346	96.1	24	78	1450	37	4	535
200-315(I)B	450	125	19.5	78	1450	37	4	535
200-400(I)	280	77.8	54.5	75	1450	75	4	830
200-400(I)	400	111.4	50	81	1450	75	4	830
200-400(I)	520	144	39	77	1450	75	4	830
200-400(I)A	262	72.8	48	80	1450	75	4	830
200-400(I)A	374	103.9	44	80	1450	75	4	830
200-400(I)A	486	135	34	80	1450	75	4	830
200-400(I)B	242	67.2	41.4	78	1450	55	5	685
200-400(I)B	346	96.1	38	78	1450	55	5	685
200-400(I)B	450	125	29.6	78	1450	55	5	685
200-400(I)C	224	62.2	34.9	76	1450	45	5	580
200-400(I)C	320	88.9	32	76	1450	45	5	580
200-400(I)C	416	115.6	25	76	1450	45	5	580
250-250	350	97.2	22	78	1450	45	5	620
250-250	550	152.8	20	82	1450	45	5	620
250-250	650	180.5	16	81	1450	45	5	620
250-250A	300	83.3	18.3	76	1450	37	5	550
250-250A	500	139	17	80	1450	37	5	550
250-250A	600	166.7	14	80	1450	37	5	550
250-235	300	83.3	14	73	1480	22	4.5	410
250-235	500	139	12.5	78	1480	22	4.5	410
250-235	600	166.7	11	70	1480	22	4.5	410
250-300	300	83.3	22	78	1480	37	4.5	550
250-300	500	139	20	78	1480	37	4.5	550
250-300	600	166.7	16	78	1480	37	4.5	550
250-315	350	97.2	34	76	1450	75	5.5	890
250-315	550	152.8	32	80	1450	75	5.5	890
250-315	650	180.5	28	79	1450	75	5.5	890
250-315A	300	83.3	29.5	74	1450	55	5.5	690
250-315A	500	139	28	78	1450	55	5.5	690
250-315A	600	166.7	24	77	1450	55	5.5	690
250-315B	260	72.2	25	70	1450	45	5.5	620
250-315B	450	125	24	74	1450	45	5.5	620
250-315B	520	144.4	20	72	1450	45	5.5	620
250-400	300	83.3	54.5	72	1480	90	4.5	1530
250-400	500	139	50	72	1480	90	4.5	1530
250-400	600	166.7	39	72	1480	90	4.5	1530
300-235	540	150	20.5	77	1450	55	5	1075
300-235	720	200	18	81	1450	55	5	1075
300-235	900*	250	15	74	1450	55	5	1075
300-235A	450	125	17.2	74	1450	45	5	970
300-235A	600	166	15	79	1450	45	5	970
300-235A	720	200	12.5	77	1450	45	5	970
300-235B	420	116.7	14.3	73	1450	37	5	925
300-235B	540	150	12.8	78	1450	37	5	925
300-235B	650	181	10.5	70	1450	37	5	925
300-250	540	150	22.5	80	1450	55	6	1085
300-250	720	200	20	83	1450	55	6	1085
300-250	900	250	17	84	1450	55	6	1085
300-250A	450	136	19.5	81	1450	45	6	980
300-250A	600	166	17	81	1450	45	6	980
300-250A	720	200	14	81	1450	45	6	980
300-300	540	150	32	82	1480	75	5	1230
300-300	720	200	28	82	1480	75	5	1230
300-300	900	250	23	82	1480	75	5	1230
300-300A	450	125	27.5	80	1480	75	5	1095
300-300A	600	166	24	80	1480	75	5	1095
300-300A	720	200	20	80	1480	75	5	1095
300-300B	420	116.7	24	78	1480	55	5	980
300-300B	540	150	21	78	1480	55	5	980
300-300B	650	181	17	78	1480	55	5	980
300-315	540	150	35	84	1480	90	4.5	1350
300-315	720	200	32	84	1480	90	4.5	1350
300-315	900	250	26	84	1480	90	4.5	1350
300-315A	460	127.8	31.5	80	1480	75	4.5	1240
300-315A	650	180	28	80	1480	75	4.5	1240
300-315A	800	222	23.5	80	1480	75	4.5	1240
300-315B	420	116.7	27	78	1480	55	4.5	1100
300-315B	580	161	24	78	1480	55	4.5	1100
300-315B	700	194	20	78	1480	55	4.5	1100
300-380	480	133.3	48	84	970	132	5	1900
300-380	720	200	44	84	970	132	5	1900
300-380	900	250	34	84	970	132	5	1900
300-380A	444	123.3	41.4	80	970	110	5	1700
300-380A	666	185	38	80	970	110	5	1700
300-380A	833	231.4	30	80	970	110	5	1700
300-380B	400	113.6	35	78	970	90	5	1530
300-380B	614	170.6	32	78	970	90	5	1530
300-380B	764	213.1	35	78	970	90	5	1530
300-390	540	150	20.5	78	980	55	5	1300
300-390	720	200	18	81	980	55	5	1300
300-390	900	250	15.5	76	980	55	5	1300
300-390A	450	126	17.2	77	980	45	5	1220
300-390A	600	167	15	79	980	45	5	1220
300-390A	720	200	12.8	75	980	45	5	1220
300-390B	400	111	14	74	980	37	5	1100
300-390B	540	150	12.5	77	980	37	5	1100
300-390B	650	180	11.5	76	980	37	5	1100
300-400	450	125	55	78	1480	110	5	1500
300-400	600	166	50	78	1480	110	5	1500
300-400	720	200	42.5	78	1480	110	5	1500
300-480	540	150	31	79	980	75	5	1500
300-480	720	200	28	81	980	75	5	1500
300-480	900	250	24	80	980	75	5	1500
300-480A	450	126	27.4	78	980	75	5	1280
300-480A	600	166	24	80	980	75	5	1280
300-480A	720	200	20	79	980	75	5	1280
300-480B	400	111	24	79	980	55	5	1180
300-480B	540	150	21	79	980	55	5	1180
300-480B	650	180	17	79	980	55	5	1180
350-235	600	167	14	80	1480	37	4.5	1050
350-235	800	222	12.5	83	1480	37	4.5	1050
350-235	960	267	10.5	82	1480	37	4.5	1050
350-300	600	167	22.5	79	1480	55	4.5	1230
350-300	800	222	20	82	1480	55	4.5	1230
350-300	960	267	17.5	71	1480	55	4.5	1230
350-315	600	167	35.5	84	1480	90	4.5	1650
350-315	800	222	32	84	1480	90	4.5	1650
350-315	960	267	28.5	84	1480	90	4.5	1650
350-400	600	167	55	83	1480	160	4.5	1950
350-400	800	222	50	83	1480	160	4.5	1950
350-400	960	267	45.5	83	1480	160	4.5	1950
400-300	820	228	23	78	1480	90	6	1570
400-300	1080	300	20	78	1480	90	6	1570
400-300	1300	361	16	78	1480	90	6	1570
400-315	820	205	36.5	76	1480	132	6	1880
400-315	1080	300	32	76	1480	132	6	1880
400-315	1300	344	27	76	1480	132	6	1880
500-300	1000	277.8	23	80	1480	110	6	1800
500-300	1200	333	20	80	1480	110	6	1800
500-300	1450	403	16	80	1480	110	6	1800
500-315	1000	278	34.5	78	1480	160	6	2070
500-315	1200	333	32	78	1480	160	6	2070
500-315	1450	403	27	78	1480	160	6	2070

Q1: What are the main differences in application between the ISG and IHG series models?

The ISG series is designed for clean water and non-corrosive liquids in heating, domestic water supply, fire protection, and municipal water supply networks.The IHG series is an upgraded chemical-grade in-line pump built with corrosion-resistant materials (Stainless Steel 304/316 or Duplex Steel) and specialized mechanical seals to safely handle aggressive chemical liquids, solvents, and industrial process fluids.

Q2: Why is a vertical in-line pump preferred over traditional horizontal centrifugal pumps in plant installations?

The vertical in-line design places the suction and discharge ports on the same horizontal axis with identical diameters, allowing the pump to be mounted directly into pipeline systems like a valve. This layout reduces equipment footprint by up to 60%, simplifies piping design, and eliminates the extra civil engineering costs required for heavy base foundations.

Q3: Which material option (Cast Iron, Stainless Steel, or Duplex Steel) should be selected for different working media?

Cast Iron: Ideal for standard HVAC cooling/heating water, boost systems, and clean municipal water.

Stainless Steel (304/316): Recommended for light corrosive liquids, food-grade processes, deionized water, and chemical handling.

Duplex Steel: Engineered for highly corrosive, high-chloride environments like seawater desalination, brine circulation, and severe industrial chemical processes.

Q4: Is the IHG/ISG pump suitable for negative suction lift applications?

No, it is a non-self-priming centrifugal pump. It requires positive inlet pressure (flooded suction) or must be installed with a bottom check valve (foot valve) and manual priming system. For deep suction or negative suction lift applications without foot valves, self-priming pump series (such as ZW or CYZ) should be selected instead.

Q5: How does the close-coupled motor shaft design prevent leakage and shaft misalignment?

The pump impeller is directly mounted on the extended shaft of the heavy-duty motor, ensuring perfect concentricity and zero shaft misalignment. Combined with precision carbide/silicon carbide mechanical seals, this integrated design reduces shaft runout, extends seal lifespan, and eliminates dynamic fluid leakage risks common in traditional coupling-driven pumps.

Recommend Products

CONTACT JIUJIANG

Send A Message

Telephone

+86 18167392360

Mailbox

sales@jpzxpumps.com

Address

No.16 Linwu Road, Oubei Street, Yongjia, Wenzhou, Zhejiang, China

Sitemap

CONTENTS

PRODUCT CATEGORY

CONTACT

About Us

Solution

New & Blog

Self-Priming Centrifugal Pumps

Industrial Water Pumps

Diesel Engine Pumps

View All Products

Tell: +86 18167392360

Address: No.16 Linwu Road, Oubei Street, Yongjia, Wenzhou, Zhejiang, China

Email: sales@jpzxpumps.com

LEGAL POLICY
