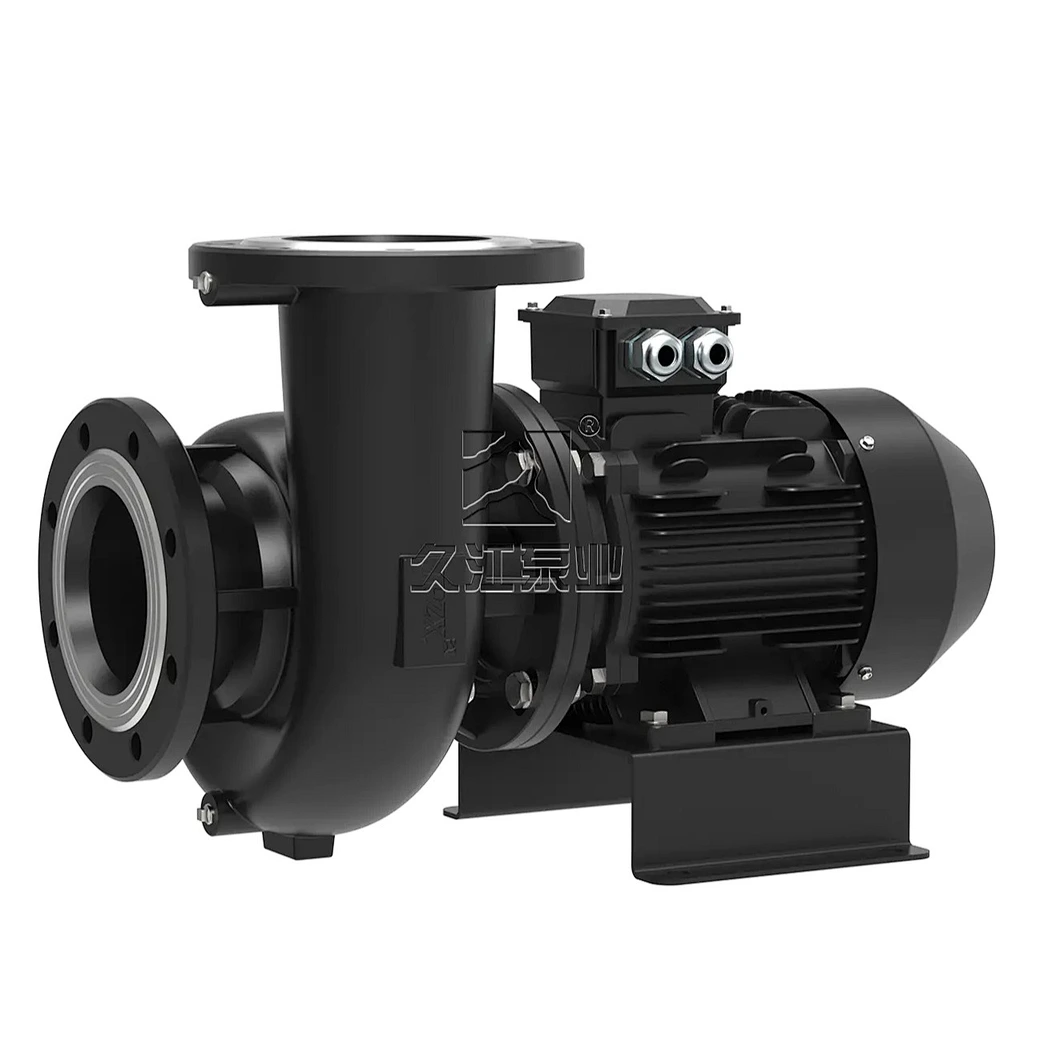

JQW Horizontal Pump for Cooling Tower

What is JQW Horizontal Pump for Cooling Tower？

Q1: Why is the JQW pump specifically engineered for cooling tower water circulation systems?

Cooling tower systems typically require high flow rates with low hydraulic head (4–10m) to circulate water continuously through the tower packing and heat exchangers. The JQW pump features an optimized low-head hydraulic model that maximizes flow efficiency while reducing power consumption compared to standard high-head centrifugal pumps.

Q2: How does the JQW pump control noise and vibration in HVAC or commercial building installations?

Built with a close-coupled horizontal design and a low-speed 4-pole motor configuration (1480 r/min), the pump eliminates transmission losses and mechanical coupling vibration. High-precision dynamic balance testing of the impeller ensures whisper-quiet operation, making it ideal for noise-sensitive environments like commercial HVAC systems and hotel central air-conditioning.

Q3: What impeller materials are available to handle open cooling tower water conditions?

The standard model comes with a durable Cast Iron impeller for clean, treated cooling water. For open-loop cooling towers prone to scaling, mild corrosion, or marine atmosphere exposure, we offer an upgraded Stainless Steel impeller version to prevent premature rust, clogging, or impeller erosion.

Q4: Is the JQW pump a self-priming pump, and where should it be installed in the loop?

No, it is a standard centrifugal pump, not a self-priming pump. It must be installed flooded (below the cooling tower cold water basin level) or used with a foot valve/priming system so that water naturally flows into the pump suction port before starting.

Q5: How does the close-coupled horizontal structure simplify routine maintenance?

The close-coupled arrangement eliminates the need for manual motor-pump shaft realignment during maintenance. Service technicians can easily inspect or replace the mechanical seal and motor bearings without dismantling suction/discharge piping or the base foundation, significantly reducing downtime and labor costs.
