JQL Vertical Pump for Cooling Tower

What is JQL Vertical Pump for Cooling Tower？

Q1: What is the main installation advantage of the JQL vertical in-line pump over horizontal models?

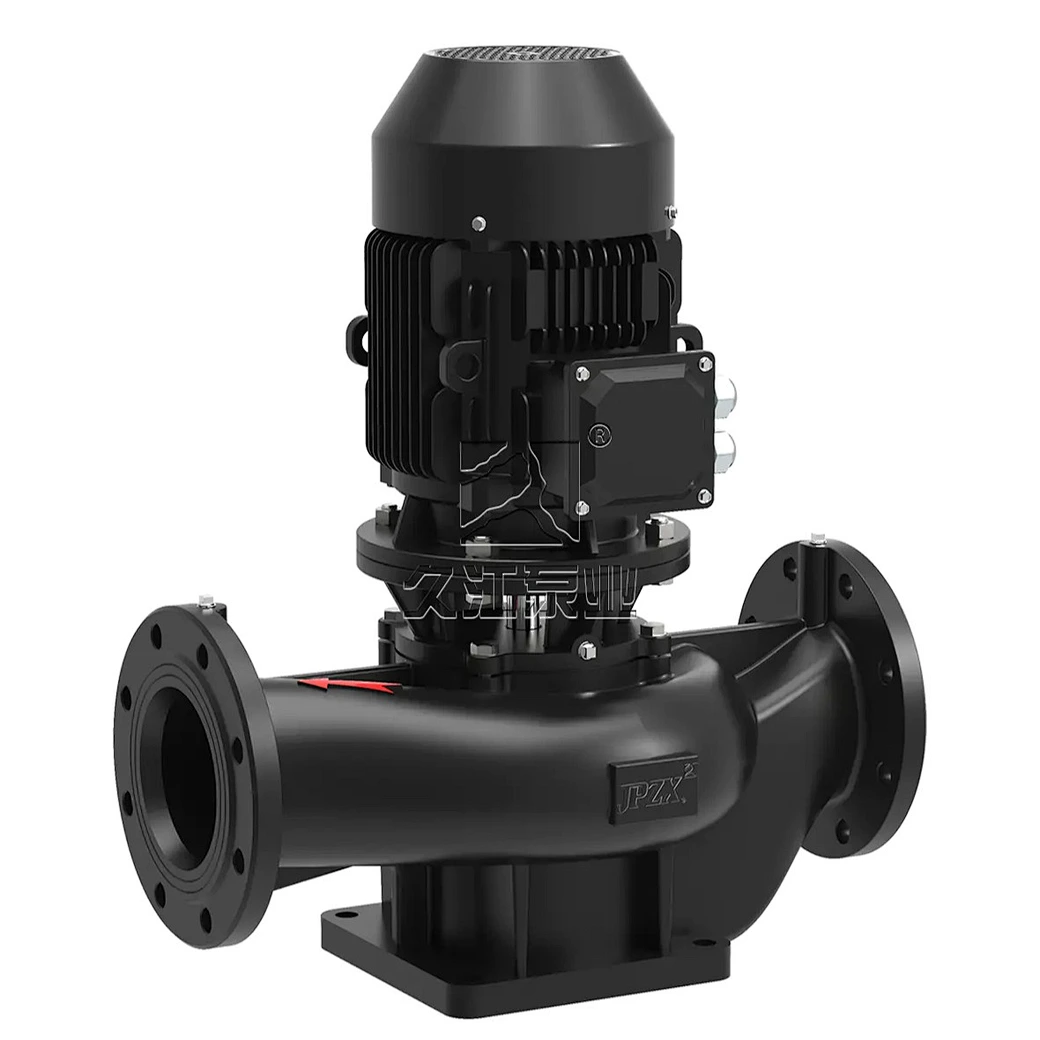

The JQL pump features a vertical in-line structure with the suction and discharge ports located on the same horizontal centerline. This allows direct installation into straight pipeline runs like a valve, saving up to 60% floor space and eliminating the need for complex piping bends in crowded mechanical rooms or rooftop HVAC skids.

Q2: Why is the JQL pump ideal for low-head cooling tower water circulation systems?

Cooling towers operate on open atmospheric loops where friction loss is low and high pressure is unnecessary. The JQL is hydraulic-engineered for high volume flow at low head (4–10m), allowing it to move massive water volumes through tower distribution basins and heat exchangers at significantly lower power consumption than standard centrifugal pumps.

Q3: What options are provided for open cooling tower environments with poor water quality?

The standard model comes with a Cast Iron impeller for clean cooling water circuits. For open cooling towers exposed to scaling, dirt accumulation, or coastal atmospheric corrosion, we offer an upgraded Stainless Steel impeller version to prevent corrosion, clogging, and mechanical seal degradation.

Q4: Is the JQL vertical pump self-priming, and how should it be installed in the cooling loop?

No, it is a non-self-priming inline centrifugal pump. It must be installed under flooded suction conditions (positioned below the cold water basin of the cooling tower) so that gravity keeps the pump casing filled with water to avoid dry-running damage.

Q5: How does the JQL design ensure low noise and vibration for indoor/rooftop HVAC operations?

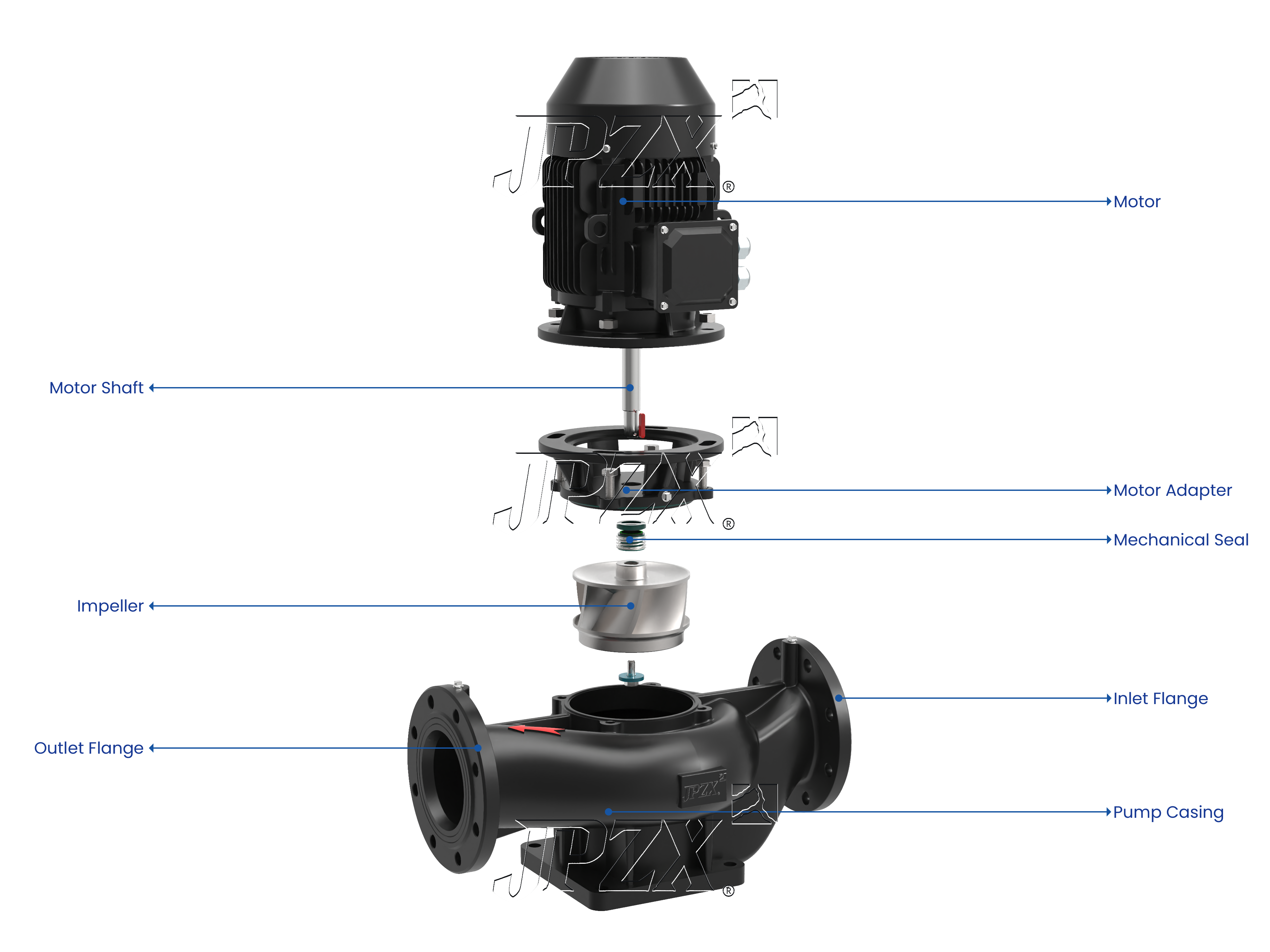

The integrated motor-pump shaft alignment eliminates coupling vibration, while 4-pole low-speed motor drives (1480 r/min) significantly reduce hydraulic friction noise. Precision dynamic balancing of the rotating assembly ensures smooth, quiet operation compliant with strict commercial building noise standards.
