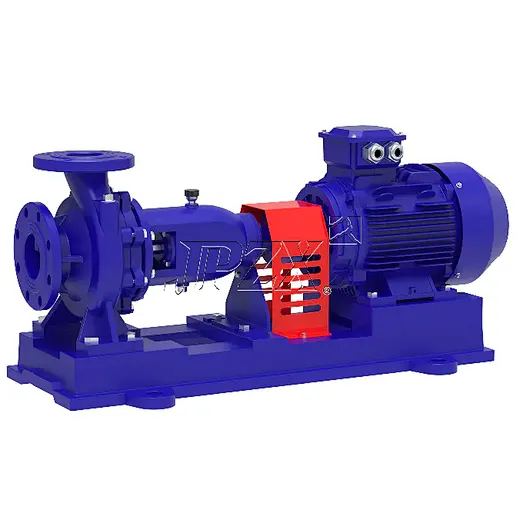

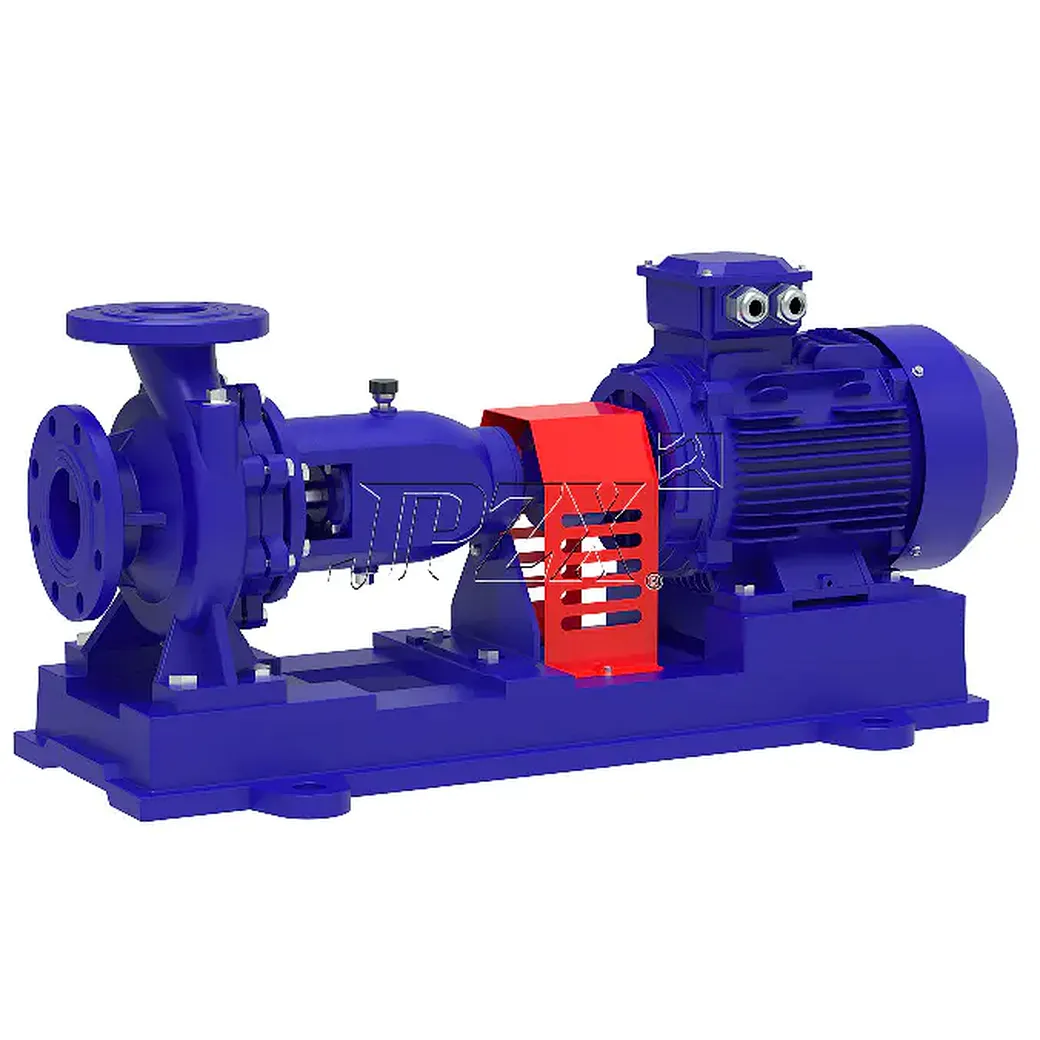

IS Series Horizontal End Suction Centrifugal Pump

Model NO. IS Series Horizontal End Suction Centrifugal Pump

Pump material: Cast Iron

Flow Range: 3.36 - 460 m³/h

Head Range: 4 - 125 m

Motor Power: 0.22 - 110 kW

Speed: 1450 r/min, 2900 r/min

Voltage: 220V / 380V / 415V / 440V / 460V

What is IS Series Horizontal End Suction Centrifugal Pump？

Thisend suction pump features a back-pullout design that allows removing the pump cover and impeller without disconnecting the suction and discharge piping. The bearing bracket houses two ball bearings lubricated with machine oil or grease. Driven directly by an electric motor through a flexible coupling, this end suction pump is constructed with the volute casing, mounting feet, inlet flange, and outlet flange cast together as a single integral unit.

Structural Features

National Standard Compatibility: Built to standard specifications with widely available spare parts, ensuring low maintenance costs.
Smooth Operation: Operates smoothly and is well suited for continuous long-term water supply.
Cost-Effective Solution: Provides an economical clean water delivery solution with high cost performance.
Complete Range of Specifications: Offers full coverage from small-flow makeup water to large-flow water supply requirements.

Applications & Suitable Operating Conditions

Thisend suction pump is suitable only for clean, clear water, and cannot be used with sewage or corrosive liquids:

Factory Circulating Cooling & Process Water: Supplies clean water for factory process lines and circulating cooling systems.
Building Water Supply & Booster Systems: Used for commercial building water supply and tap water pressure boosting.
Agricultural Irrigation: Functions as an irrigation water pump for farmland irrigation and sprinkler water supply, or as a centrifugal irrigation pump for agricultural water distribution.
HVAC Water Circulation: Provides reliable fluid circulation for heating, ventilation, and air conditioning systems.

Model Meaning：

IS: Clean Water Centrifugal Pump
80: Inlet Diameter (mm)
65: Outlet Diameter (mm)
160: Nominal Impeller Diameter (mm)
A/B/C: Impeller Trimming Code (Reduced Flow and Head)

Model	Speed (r/min)	Flow Rate (m³/h)	Flow Rate (L/s)	Head (m)	Efficiency (%)	Shaft Power Pa (kW)	Motor Power (kW)	NPSHr (m)	Impeller Nominal Diameter (mm)
50-32-125	2900	7.5	2.08	20	60	1.13	2.2	2.0	130
50-32-125	2900	12.5	3.47	20	60	1.13	2.2	2.0	130
50-32-125	2900	15	4.17	20	60	1.13	2.2	2.0	130
50-32-125	1450	3.75	1.04	5	54	0.16	0.55	2.0	130
50-32-125	1450	6.3	1.74	5	54	0.16	0.55	2.0	130
50-32-125	1450	7.5	2.08	5	54	0.16	0.55	2.0	130
50-32-125A	2900	6.72	1.86	16	60	0.81	1.1	2.0	116.5
50-32-125A	2900	11.2	3.11	16	60	0.81	1.1	2.0	116.5
50-32-125A	2900	13.4	3.74	16	60	0.81	1.1	2.0	116.5
50-32-125A	1450	3.36	0.93	4	54	0.04	0.22	2.0	116.5
50-32-125A	1450	5.6	1.56	4	54	0.04	0.22	2.0	116.5
50-32-125A	1450	5.7	1.86	4	54	0.04	0.22	2.0	116.5
50-32-160	2900	7.5	2.08	32	54	2.02	3	2.0	158
50-32-160	2900	12.5	3.47	32	54	2.02	3	2.0	158
50-32-160	2900	15	4.17	32	54	2.02	3	2.0	158
50-32-160	1450	3.75	1.04	8	48	0.29	0.55	2.0	158
50-32-160	1450	6.3	1.74	8	48	0.29	0.55	2.0	158
50-32-160	1450	7.5	2.08	8	48	0.29	0.55	2.0	158
50-32-160A	2900	7.02	1.95	28	48		2.2	2.0	148
50-32-160A	2900	11.7	3.25	28	48		2.2	2.0	148
50-32-160A	2900	14	3.9	28	48		2.2	2.0	148
50-32-160A	1450	3.51	0.97	7	48	0.23	0.40	2.0	148
50-32-160A	1450	5.9	1.64	7	48	0.23	0.40	2.0	148
50-32-160A	1450	7.02	1.95	7	48	0.23	0.40	2.0	148
50-32-160B	2900	6.5	1.81	24	54	1.32	1.5	2.0	137
50-32-160B	2900	10.8	3.01	24	54	1.32	1.5	2.0	137
50-32-160B	2900	13	3.62	24	54	1.32	1.5	2.0	137
50-32-160B	1450	3.25	1.5	6	48	0.18	0.22	2.0	137
50-32-160B	1450	5.4	1.5	6	48	0.18	0.22	2.0	137
50-32-160B	1450	6.5	1.5	6	48	0.18	0.22	2.0	137
50-32-200	2900	7.5	2.08	50	48	3.45	5.5	2.0	198
50-32-200	2900	12.5	3.47	50	48	3.45	5.5	2.0	198
50-32-200	2900	15	4.17	50	48	3.45	5.5	2.0	198
50-32-200	1450	3.75	1.04	12.5	42	0.51	0.75	2.0	198
50-32-200	1450	6.3	1.74	12.5	42	0.51	0.75	2.0	198
50-32-200	1450	7.5	2.08	12.5	42	0.51	0.75	2.0	198
50-32-200A	2900	7.02	1.95	44	48	2.91	4	2.0	185.5
50-32-200A	2900	11.7	3.25	44	48	2.91	4	2.0	185.5
50-32-200A	2900	14	3.9	44	48	2.91	4	2.0	185.5
50-32-200A	1450	3.51	0.97	11	42	0.33	0.55	2.0	185.5
50-32-200A	1450	5.9	1.64	11	42	0.33	0.55	2.0	185.5
50-32-200A	1450	7.02	1.95	11	42	0.33	0.55	2.0	185.5
50-32-200B	2900	6.53	1.81	38	48	2.34	3	2.0	172.5
50-32-200B	2900	10.8	3.01	38	48	2.34	3	2.0	172.5
50-32-200B	2900	13.1	3.62	38	48	2.34	3	2.0	172.5
50-32-200B	1450	3.26	0.91	9.5	42	0.42	0.55	2.0	172.5
50-32-200B	1450	5.4	1.5	9.5	42	0.42	0.55	2.0	172.5
50-32-200B	1450	6.53	1.81	9.5	42	0.42	0.55	2.0	172.5
50-32-250	2900	7.5	2.08	80	38	7.16	11	2.0	250
50-32-250	2900	12.5	3.47	80	38	7.16	11	2.0	250
50-32-250	2900	15	4.17	80	38	7.16	11	2.0	250
50-32-250	1450	3.75	1.04	20	32	1.07	1.5	2.0	250
50-32-250	1450	6.3	1.74	20	32	1.07	1.5	2.0	250
50-32-250	1450	7.5	2.08	20	32	1.07	1.5	2.0	250
50-32-250A	2900	7.02	1.95	70	38	5.87	7.5	2.0	234
50-32-250A	2900	11.7	3.25	70	38	5.87	7.5	2.0	234
50-32-250A	2900	14	3.9	70	38	5.87	7.5	2.0	234
50-32-250A	1450	3.51	0.97	17.5	32	0.88	1.5	2.0	234
50-32-250A	1450	5.9	1.64	17.5	32	0.88	1.5	2.0	234
50-32-250A	1450	6.53	1.81	17.5	32	0.88	1.5	2.0	234
50-32-250B	2900	65.3	1.81	60	38	4.65	5.5	2.0	216.5
50-32-250B	2900	10.8	3.01	60	38	4.65	5.5	2.0	216.5
50-32-250B	2900	13.1	3.62	60	38	4.65	5.5	2.0	216.5
50-32-250B	1450	3.26	0.91	15	32	0.69	1.1	2.0	216.5
50-32-250B	1450	5.4	1.5	15	32	0.69	1.1	2.0	216.5
50-32-250B	1450	6.53	1.81	15	32	0.69	1.1	2.0	216.5
65-50-125	2900	15	4.17	20	69	1.97	3	2.0	130
65-50-125	2900	25	6.94	20	69	1.97	3	2.0	130
65-50-125	2900	30	8.33	20	69	1.97	3	2.0	130
65-50-125	1450	7.5	2.08	5	64	0.27	0.55	2.0	130
65-50-125	1450	12.5	3.47	5	64	0.27	0.55	2.0	130
65-50-125	1450	15	4.17	5	64	0.27	0.55	2.0	130
65-50-125A	2900	13.4	3.73	16	69	1.42	2.2	2.0	116.5
65-50-125A	2900	22.4	6.22	16	69	1.42	2.2	2.0	116.5
65-50-125A	2900	26.9	7.46	16	69	1.42	2.2	2.0	116.5
65-50-125A	1450	6.72	1.86	4	64	0.19	0.22	2.0	116.5
65-50-125A	1450	11.2	3.11	4	64	0.19	0.22	2.0	116.5
65-50-125A	1450	13.4	3.73	4	64	0.19	0.22	2.0	116.5
65-50-160	2900	15	4.17	32	65	3.35	5.5	2.0	158.5
65-50-160	2900	25	6.94	32	65	3.35	5.5	2.0	158.5
65-50-160	2900	30	8.33	32	65	3.35	5.5	2.0	158.5
65-50-160	1450	7.5	2.08	8	60	0.45	0.75	2.0	158.5
65-50-160	1450	12.5	3.47	8	60	0.45	0.75	2.0	158.5
65-50-160	1450	15	4.17	8	60	0.45	0.75	2.0	158.5
65-50-160A	2900	14	3.89	28	65	2.73	4	2.0	148
65-50-160A	2900	23.4	6.5	28	65	2.73	4	2.0	148
65-50-160A	2900	28	6.48	28	65	2.73	4	2.0	148
65-50-160A	1450	7	1.94	7	60	0.37	0.55	2.0	148
65-50-160A	1450	11.7	3.25	7	60	0.37	0.55	2.0	148
65-50-160A	1450	14	3.89	7	60	0.37	0.55	2.0	148
65-50-160B	2900	13	3.62	24	65	2.19	3	2.0	137.5
65-50-160B	2900	21.7	6.03	24	65	2.19	3	2.0	137.5
65-50-160B	2900	26	7.23	24	65	2.19	3	2.0	137.5
65-50-160B	1450	6.5	1.8	6	60	0.29	0.40	2.0	137.5
65-50-160B	1450	10.8	3.01	6	60	0.29	0.40	2.0	137.5
65-50-160B	1450	13	3.62	6	60	0.29	0.40	2.0	137.5
65-40-200	2900	15	4.17	50	60	5.67	7.5	2.0	200
65-40-200	2900	25	6.94	50	60	5.67	7.5	2.0	200
65-40-200	2900	30	8.33	50	60	5.67	7.5	2.0	200
65-40-200	1450	7.5	2.08	12.5	55	0.77	1.1	2.0	200
65-40-200	1450	12.5	3.47	12.5	55	0.77	1.1	2.0	200
65-40-200	1450	15	4.17	12.5	55	0.77	1.1	2.0	200
65-40-200A	2900	14	3.89	44	60	4.67	5.5	2.0	187.5
65-40-200A	2900	23.4	6.5	44	60	4.67	5.5	2.0	187.5
65-40-200A	2900	28	6.48	44	60	4.67	5.5	2.0	187.5
65-40-200A	1450	7	1.94	11	55	0.63	0.75	2.0	187.5
65-40-200A	1450	11.7	3.25	11	55	0.63	0.75	2.0	187.5
65-40-200A	1450	14	3.89	11	55	0.63	0.75	2.0	187.5
65-40-200B	2900	13	3.62	38	60	3.76	4	2.0	174.5
65-40-200B	2900	21.7	6.03	38	60	3.76	4	2.0	174.5
65-40-200B	2900	26	7.23	38	60	3.76	4	2.0	174.5
65-40-200B	1450	6.5	3.62	9.5	55	0.51	0.55	2.0	174.5
65-40-200B	1450	10.8	6.03	9.5	55	0.51	0.55	2.0	174.5
65-40-200B	1450	13	7.23	9.5	55	0.51	0.55	2.0	174.5
65-40-250	2900	15	4.17	80	50	10.89	15	2.0	254
65-40-250	2900	25	6.94	80	50	10.89	15	2.0	254
65-40-250	2900	30	8.33	80	50	10.89	15	2.0	254
65-40-250	1450	7.5	2.08	20	46	1.48	2.2	2.0	254
65-40-250	1450	12.5	3.47	20	46	1.48	2.2	2.0	254
65-40-250	1450	15	4.17	20	46	1.48	2.2	2.0	254
65-40-250A	2900	14	3.08	70	53	8.42	11	2.0	237.5
65-40-250A	2900	23.4	6.5	70	53	8.42	11	2.0	237.5
65-40-250A	2900	28	6.48	70	53	8.42	11	2.0	237.5
65-40-250A	1450	7	1.94	17.5	48	1.17	2.2	2.0	237.5
65-40-250A	1450	11.7	3.25	17.5	48	1.17	2.2	2.0	237.5
65-40-250A	1450	14	3.89	17.5	48	1.17	2.2	2.0	237.5
65-40-250B	2900	13	3.62	60	53	6.7	7.5	2.0	220
65-40-250B	2900	21.7	6.03	60	53	6.7	7.5	2.0	220
65-40-250B	2900	26	7.23	60	53	6.7	7.5	2.0	220
65-40-250B	1450	6.5	1.8	15	48	0.9	1.1	2.0	220
65-40-250B	1450	10.8	3.01	15	48	0.9	1.1	2.0	220
65-40-250B	1450	13	3.62	15	48	0.9	1.1	2.0	220
65-40-315	2900	15	4.17	125	40	21.3	30	2.5	315
65-40-315	2900	25	6.94	125	40	21.3	30	2.5	315
65-40-315	2900	30	8.33	125	40	21.3	30	2.5	315
65-40-315	1450	7.5	2.08	32	37	2.94	4	2.5	315
65-40-315	1450	12.5	3.47	32	37	2.94	4	2.5	315
65-40-315	1450	15	4.17	32	37	2.94	4	2.5	315
65-40-315A	2900	14.3	3.98	114	40	18.6	22	2.5	301
65-40-315A	2900	23.9	6.64	114	40	18.6	22	2.5	301
65-40-315A	2900	28.7	7.96	114	40	18.6	22	2.5	301
65-40-315A	1450	7.17	1.99	28.5	37	2.57	4	2.5	301
65-40-315A	1450	11.9	3.32	28.5	37	2.57	4	2.5	301
65-40-315A	1450	14.3	3.98	28.5	37	2.57	4	2.5	301
65-40-315B	2900	13.6	3.78	103	40	15.9	18.5	2.5	286
65-40-315B	2900	22.7	6.3	103	40	15.9	18.5	2.5	286
65-40-315B	2900	27.2	7.56	103	40	15.9	18.5	2.5	286
65-40-315B	1450	6.8	1.89	25.8	37	2.2	3	2.5	286
65-40-315B	1450	11.3	3.15	25.8	37	2.2	3	2.5	286
65-40-315B	1450	13.6	3.78	25.8	37	2.2	3	2.5	286
65-40-315C	2900	12.8	3.57	92	40	11.5	15	2.5	270
65-40-315C	2900	21.4	5.94	92	40	11.5	15	2.5	270
65-40-315C	2900	52.7	7.14	92	40	11.5	15	2.5	270
65-40-315C	1450	6.43	1.78	23	37	1.85	2.2	2.5	270
65-40-315C	1450	10.7	2.97	23	37	1.85	2.2	2.5	270
65-40-315C	1450	12.8	3.57	23	37	1.85	2.2	2.5	270
80-65-125	2900	30	8.33	20	75	3.6	5.5	3.0	137
80-65-125	2900	50	13.9	20	75	3.6	5.5	3.0	137
80-65-125	2900	60	16.7	20	75	3.6	5.5	3.0	137
80-65-125	1450	15	4.17	5	71	0.48	0.75	2.5	137
80-65-125	1450	25	6.94	5	71	0.48	0.75	2.5	137
80-65-125	1450	30	8.33	5	71	0.48	0.75	2.5	137
80-65-125A	2900	27.3	7.57	16	75	2.72	4	3.0	124.5
80-65-125A	2900	44.7	12.4	16	75	2.72	4	3.0	124.5
80-65-125A	2900	54.5	15.2	16	75	2.72	4	3.0	124.5
80-65-125A	1450	13.6	3.79	4	71	0.36	0.55	2.5	124.5
80-65-125A	1450	22.4	6.22	4	71	0.36	0.55	2.5	124.5
80-65-125A	1450	27.3	7.57	4	71	0.36	0.55	2.5	124.5
80-65-160	2900	30	8.33	32	73	5.97	7.5	2.5	168
80-65-160	2900	50	13.9	32	73	5.97	7.5	2.5	168
80-65-160	2900	60	16.7	32	73	5.97	7.5	2.5	168
80-65-160	1450	15	4.17	8	69	0.79	1.5	2.5	168
80-65-160	1450	25	6.94	8	69	0.79	1.5	2.5	168
80-65-160	1450	30	8.33	8	69	0.79	1.5	2.5	168
80-65-160A	2900	28	7.78	28	73	4.87	5.5	2.5	157
80-65-160A	2900	46.8	13	28	73	4.87	5.5	2.5	157
80-65-160A	2900	56	15.6	28	73	4.87	5.5	2.5	157
80-65-160A	1450	14	3.9	7	69	0.64	0.75	2.5	157
80-65-160A	1450	23.4	6.5	7	69	0.64	0.75	2.5	157
80-65-160A	1450	28	7.78	7	69	0.64	0.75	2.5	157
80-65-160B	2900	26	7.21	12	73	3.36	4	2.5	145.5
80-65-160B	2900	43.3	12	12	73	3.36	4	2.5	145.5
80-65-160B	2900	52	14.5	12	73	3.36	4	2.5	145.5
80-65-160B	1450	13	3.62	6	69	0.51	0.55	2.5	145.5
80-65-160B	1450	21.7	6.03	6	69	0.51	0.55	2.5	145.5
80-65-160B	1450	26	7.21	6	69	0.51	0.55	2.5	145.5
80-50-200	2900	30	8.33	50	69	9.87	15	2.5	202
80-50-200	2900	50	13.9	50	69	9.87	15	2.5	202
80-50-200	2900	60	16.7	50	69	9.87	15	2.5	202
80-50-200	1450	15	4.17	125	65	1.31	2.2	2.5	202
80-50-200	1450	25	6.94	125	65	1.31	2.2	2.5	202
80-50-200	1450	30	8.33	125	65	1.31	2.2	2.5	202
80-50-200A	2900	28.1	7.82	44	69	8.15	11	2.5	189.5
80-50-200A	2900	46.8	13	44	69	8.15	11	2.5	189.5
80-50-200A	2900	56.3	15.7	44	69	8.15	11	2.5	189.5
80-50-200A	1450	14.1	3.91	11	65	1.08	1.5	2.5	189.5
80-50-200A	1450	23.4	6.5	11	65	1.08	1.5	2.5	189.5
80-50-200A	1450	28.1	7.82	11	65	1.08	1.5	2.5	189.5
80-50-200B	2900	26.1	7.62	38	69	6.53	7.5	2.5	176
80-50-200B	2900	43.3	12	38	69	6.53	7.5	2.5	176
80-50-200B	2900	52.3	14.6	38	69	6.53	7.5	2.5	176
80-50-200B	1450	13.1	3.63	9.5	65	0.87	1.1	2.5	176
80-50-200B	1450	21.7	6.03	9.5	65	0.87	1.1	2.5	176
80-50-200B	1450	26.1	7.26	9.5	65	0.87	1.1	2.5	176
80-50-250	2900	30	8.33	80	63	17.3	22	2.5	250
80-50-250	2900	50	13.9	80	63	17.3	22	2.5	250
80-50-250	2900	60	16.7	80	63	17.3	22	2.5	250
80-50-250	1450	15	4.17	20	60	2.27	3	2.5	250
80-50-250	1450	25	6.94	20	60	2.27	3	2.5	250
80-50-250	1450	30	8.33	20	60	2.27	3	2.5	250
80-50-250A	2900	28.1	7.82	70	63	14.2	18.5	2.5	234
80-50-250A	2900	46.8	13	70	63	14.2	18.5	2.5	234
80-50-250A	2900	56.3	15.7	70	63	14.2	18.5	2.5	234
80-50-250A	1450	14.1	3.91	17.5	60	1.86	3	2.5	234
80-50-250A	1450	23.4	6.5	17.5	60	1.86	3	2.5	234
80-50-250A	1450	23.1	7.82	17.5	60	1.86	3	2.5	234
80-50-250B	2900	26.1	7.26	60	63	11.2	15	2.5	216.5
80-50-250B	2900	43.3	12	60	63	11.2	15	2.5	216.5
80-50-250B	2900	52.3	14.6	60	63	11.2	15	2.5	216.5
80-50-250B	1450	13.1	3.63	15	60	1.47	2.2	2.5	216.5
80-50-250B	1450	21.7	6.03	15	60	1.47	2.2	2.5	216.5
80-50-250B	1450	26.1	7.26	15	60	1.47	2.2	2.5	216.5
80-50-315	2900	30	8.33	125	54	31.5	37	2.5	315
80-50-315	2900	50	13.9	125	54	31.5	37	2.5	315
80-50-315	2900	60	16.7	125	54	31.5	37	2.5	315
80-50-315	1450	15	4.17	32	52	4.19	5.5	2.5	315
80-50-315	1450	25	6.94	32	52	4.19	5.5	2.5	315
80-50-315	1450	30	8.33	32	52	4.19	5.5	2.5	315
80-50-315A	2900	28.7	7.96	114	54	26.3	30	2.5	301
80-50-315A	2900	47.7	13.3	114	54	26.3	30	2.5	301
80-50-315A	2900	57.3	15.9	114	54	26.3	30	2.5	301
80-50-315A	1450	14.3	3.98	28.5	52	3.66	5.5	2.5	301
80-50-315A	1450	23.9	6.62	28.5	52	3.66	5.5	2.5	301
80-50-315A	1450	28.7	7.96	28.5	52	3.66	5.5	2.5	301
80-50-315B	2900	27.2	7.56	103	54	23.6	30	2.5	286
80-50-315B	2900	45.4	12.6	103	54	23.6	30	2.5	286
80-50-315B	2900	54.4	15.2	103	54	23.6	30	2.5	286
80-50-315B	1450	13.6	3.79	25.8	52	3.14	5.5	2.5	286
80-50-315B	1450	22.7	6.3	25.8	52	3.14	5.5	2.5	286
80-50-315B	1450	27.2	7.56	25.8	52	3.14	5.5	2.5	286
80-50-315C	2900	25.7	7.14	92	54	17	22	2.5	270
80-50-315C	2900	42.9	11.9	92	54	17	22	2.5	270
80-50-315C	2900	51.4	14.3	92	54	17	22	2.5	270
80-50-315C	1450	12.9	3.57	23	52	2.63	4	2.5	270
80-50-315C	1450	21.4	5.94	23	52	2.63	4	2.5	270
80-50-315C	1450	25.7	7.14	23	52	2.63	4	2.5	270
100-80-125	2900	60	16.7	20	78	7.0	11	4.5	139
100-80-125	2900	100	27.8	20	78	7.0	11	4.5	139
100-80-125	2900	120	33.3	20	78	7.0	11	4.5	139
100-80-125	1450	30	8.33	5	75	0.91	1.5	2.5	139
100-80-125	1450	50	13.9	5	75	0.91	1.5	2.5	139
100-80-125	1450	60	16.7	5	75	0.91	1.5	2.5	139
100-80-125A	2900	53.7	15	16	78	5.03	7.5	4.5	124.5
100-80-125A	2900	89.4	24.8	16	78	5.03	7.5	4.5	124.5
100-80-125A	2900	107	29.8	16	78	5.03	7.5	4.5	124.5
100-80-125A	1450	26.9	7.46	4	75	0.65	0.75	2.5	124.5
100-80-125A	1450	44.7	12.4	4	75	0.65	0.75	2.5	124.5
100-80-125A	1450	53.7	15	4	75	0.65	0.75	2.5	124.5
100-80-160	2900	60	16.7	32	78	11.2	15	4.0	170
100-80-160	2900	100	27.8	32	78	11.2	15	4.0	170
100-80-160	2900	120	33.3	32	78	11.2	15	4.0	170
100-80-160	1450	30	8.33	8	75	1.45	2.2	2.5	170
100-80-160	1450	50	13.9	8	75	1.45	2.2	2.5	170
100-80-160	1450	60	16.7	8	75	1.45	2.2	2.5	170
100-80-160A	2900	56.1	15.6	28	78	9.16	11	4.0	159
100-80-160A	2900	93.5	26	28	78	9.16	11	4.0	159
100-80-160A	2900	112	31.1	28	78	9.16	11	4.0	159
100-80-160A	1450	28	7.79	7	75	1.19	1.5	2.5	159
100-80-160A	1450	46.8	13	7	75	1.19	1.5	2.5	159
100-80-160A	1450	56.1	15.6	7	75	1.19	1.5	2.5	159
100-80-160B	2900	50	13.9	22.3	78	6.95	7.5	4.0	142
100-80-160B	2900	83.5	23.2	22.3	78	6.95	7.5	4.0	142
100-80-160B	2900	100	28	22.3	78	6.95	7.5	4.0	142
100-80-160B	1450	25	6.96	5.6	75	0.85	1.1	2.5	142
100-80-160B	1450	41.8	11.6	5.6	75	0.85	1.1	2.5	142
100-80-160B	1450	50	13.9	5.6	75	0.85	1.1	2.5	142
100-65-200	2900	60	16.7	50	76	17.9	22	3.6	203
100-65-200	2900	100	27.8	50	76	17.9	22	3.6	203
100-65-200	2900	120	33.3	50	76	17.9	22	3.6	203
100-65-200	1450	30	8.33	12.5	73	2.33	4	2.0	203
100-65-200	1450	50	13.9	12.5	73	2.33	4	2.0	203
100-65-200	1450	60	16.7	12.5	73	2.33	4	2.0	203
100-65-200A	2900	56.1	15.6	44	76	14.2	18.5	3.6	190.5
100-65-200A	2900	93.5	26	44	76	14.2	18.5	3.6	190.5
100-65-200A	2900	112	31.1	44	76	14.2	18.5	3.6	190.5
100-65-200A	1450	28	7.79	11	73	1.93	3	2.0	190.5
100-65-200A	1450	46.8	13	11	73	1.93	3	2.0	190.5
100-65-200A	1450	56.1	15.6	11	73	1.93	3	2.0	190.5
100-65-200B	2900	52.3	14.6	38	76	9.94	15	3.6	177
100-65-200B	2900	86.6	24.1	38	76	9.94	15	3.6	177
100-65-200B	2900	10.5	29	38	76	9.94	15	3.6	177
100-65-200B	1450	26.2	7.26	9.5	73	1.54	2.2	2.0	177
100-65-200B	1450	43.3	12	9.5	73	1.54	2.2	2.0	177
100-65-200B	1450	52.3	14.6	9.5	73	1.54	2.2	2.0	177
100-65-250	2900	60	16.7	80	72	30.3	37	3.8	255
100-65-250	2900	100	27.8	80	72	30.3	37	3.8	255
100-65-250	2900	120	33.3	80	72	30.3	37	3.8	255
100-65-250	1450	30	8.33	20	68	4.0	5.5	2.0	255
100-65-250	1450	50	13.9	20	68	4.0	5.5	2.0	255
100-65-250	1450	60	16.7	20	68	4.0	5.5	2.0	255
100-65-250A	2900	56.1	15.6	70	72	24.8	30	3.8	238.5
100-65-250A	2900	93.5	26	70	72	24.8	30	3.8	238.5
100-65-250A	2900	112	31.1	70	72	24.8	30	3.8	238.5
100-65-250A	1450	28	7.79	17.5	68	3.27	4	2.0	238.5
100-65-250A	1450	46.8	13	17.5	68	3.27	4	2.0	238.5
100-65-250A	1450	56.1	15.6	17.5	68	3.27	4	2.0	238.5
100-65-250B	2900	52.3	14.6	60	72	19.7	22	3.8	221
100-65-250B	2900	86.6	24.1	60	72	19.7	22	3.8	221
100-65-250B	2900	105	29	60	72	19.7	22	3.8	221
100-65-250B	1450	26.2	7.26	15	68	2.6	3	2.0	221
100-65-250B	1450	43.3	12	15	68	2.6	3	2.0	221
100-65-250B	1450	52.3	14.6	15	68	2.6	3	2.0	221
100-65-315	2900	60	16.7	125	66	51.6	75	3.6	315.5
100-65-315	2900	100	27.8	125	66	51.6	75	3.6	315.5
100-65-315	2900	120	33.3	125	66	51.6	75	3.6	315.5
100-65-315	1450	30	8.33	32	63	6.92	11	2.0	315.5
100-65-315	1450	50	13.9	32	63	6.92	11	2.0	315.5
100-65-315	1450	60	16.7	32	63	6.92	11	2.0	315.5
100-65-315A	2900	57.3	16	114	66	45	55	3.6	301.5
100-65-315A	2900	95.5	26.5	114	66	45	55	3.6	301.5
100-65-315A	2900	114	31.8	114	66	45	55	3.6	301.5
100-65-315A	1450	28.7	7.96	28.5	63	6.03	7.5	2.0	301.5
100-65-315A	1450	47.7	13.3	28.5	63	6.03	7.5	2.0	301.5
100-65-315A	1450	57.3	16	28.5	63	6.03	7.5	2.0	301.5
100-65-315B	2900	54.5	15.2	103	66	38.6	45	3.6	286.5
100-65-315B	2900	90.8	25.2	103	66	38.6	45	3.6	286.5
100-65-315B	2900	109	30.2	103	66	38.6	45	3.6	286.5
100-65-315B	1450	27.2	7.56	25.8	63	5.18	7.5	2.0	286.5
100-65-315B	1450	45.4	12.6	25.8	63	5.18	7.5	2.0	286.5
100-65-315B	1450	54.4	15.2	25.8	63	5.18	7.5	2.0	286.5
100-65-315C	2900	51.4	14.3	92	66	32.5	37	3.6	270.5
100-65-315C	2900	85.8	23.8	92	66	32.5	37	3.6	270.5
100-65-315C	2900	103	28.6	92	66	32.5	37	3.6	270.5
100-65-315C	1450	25.7	7.14	23	63	4.36	5.5	2.0	270.5
100-65-315C	1450	42.9	11.9	23	63	4.36	5.5	2.0	270.5
100-65-315C	1450	51.4	14.3	23	63	4.36	5.5	2.0	270.5
125-100-200	2900	120	33.3	50	81	33.6	44	4.5	216
125-100-200	2900	200	55.6	50	81	33.6	44	4.5	216
125-100-200	2900	240	66.7	50	81	33.6	44	4.5	216
125-100-200	1450	60	16.7	12.5	76	4.40	7.5	2.5	216
125-100-200	1450	100	27.8	12.5	76	4.40	7.5	2.5	216
125-100-200	1450	120	33.3	12.5	76	4.40	7.5	2.5	216
125-100-200A	2900	113	31.2	44	81	27.7	37	4.5	202.5
125-100-200A	2900	187	52	44	81	27.7	37	4.5	202.5
125-100-200A	2900	225	62.5	44	81	27.7	37	4.5	202.5
125-100-200A	1450	56.3	15.7	11	76	3.69	5.5	2.5	202.5
125-100-200A	1450	93.5	26	11	76	3.69	5.5	2.5	202.5
125-100-200A	1450	113	31.2	11	76	3.69	5.5	2.5	202.5
125-100-200B	2900	105	29.1	38	81	22.3	30	4.5	188.5
125-100-200B	2900	173	48.1	38	81	22.3	30	4.5	188.5
125-100-200B	2900	209	58.2	38	81	22.3	30	4.5	188.5
125-100-200B	1450	52.4	14.6	9.5	76	2.98	4	2.5	188.5
125-100-200B	1450	86.5	24.1	9.5	76	2.98	4	2.5	188.5
125-100-200B	1450	105	29.1	9.5	76	2.98	4	2.5	188.5
125-100-250	2900	120	33.3	80	78	55.9	75	4.2	255
125-100-250	2900	200	55.6	80	78	55.9	75	4.2	255
125-100-250	2900	240	66.7	80	78	55.9	75	4.2	255
125-100-250	1450	60	16.7	20	76	7.17	11	2.5	255
125-100-250	1450	100	27.8	20	76	7.17	11	2.5	255
125-100-250	1450	120	33.3	20	76	7.17	11	2.5	255
125-100-250A	2900	113	31.2	70	78	45.7	55	4.2	238.5
125-100-250A	2900	187	52	70	78	45.7	55	4.2	238.5
125-100-250A	2900	225	62.5	70	78	45.7	55	4.2	238.5
125-100-250A	1450	56.3	15.7	17.5	76	5.87	7.5	2.5	238.5
125-100-250A	1450	93.5	26	17.5	76	5.87	7.5	2.5	238.5
125-100-250A	1450	113	31.2	17.5	76	5.87	7.5	2.5	238.5
125-100-250B	2900	105	29.1	60	78	36.4	45		221
125-100-250B	2900	173	48.1	60	78	36.4	45		221
125-100-250B	2900	209	58.2	60	78	36.4	45		221
125-100-250B	1450	52.4	14.6	15	76	4.67	5.5		221
125-100-250B	1450	86.5	24.1	15	76	4.67	5.5		221
125-100-250B	1450	105	29.1	15	76	4.67	5.5		221
125-100-315	2900	120	33.3	125	75	90.8	110	4.5	317
125-100-315	2900	200	55.6	125	75	90.8	110	4.5	317
125-100-315	2900	240	66.7	125	75	90.8	110	4.5	317
125-100-315	1450	60	16.7	32	73	11.9	15	2.2	317
125-100-315	1450	100	27.8	32	73	11.9	15	2.2	317
125-100-315	1450	120	33.3	32	73	11.9	15	2.2	317
125-100-315A	2900	115	31.8	114	75	78.9	90		302.5
125-100-315A	2900	191	53.1	114	75	78.9	90		302.5
125-100-315A	2900	229	63.6	114	75	78.9	90		302.5
125-100-315A	1450	57.3	15.9	28.5	73	10.3	15		302.5
125-100-315A	1450	95.5	26.5	28.5	73	10.3	15		302.5
125-100-315A	1450	115	31.8	28.5	73	10.3	15		302.5
125-100-315B	2900	109	30.2	103	75	68.1	75		288
125-100-315B	2900	182	50.4	103	75	68.1	75		288
125-100-315B	2900	218	60.6	103	75	68.1	75		288
125-100-315B	1450	54.5	15.2	25.8	73	8.92	11		288
125-100-315B	1450	90.8	25.2	25.8	73	8.92	11		288
125-100-315B	1450	109	30.2	25.8	73	8.92	11		288
125-100-315C	2900	103	28.6	92	75	57.4	75		272
125-100-315C	2900	172	47.7	92	75	57.4	75		272
125-100-315C	2900	200	57.2	92	75	57.4	75		272
125-100-315C	1450	51.4	14.3	23	73	7.5	11		272
125-100-315C	1450	85.8	23.8	23	73	7.5	11		272
125-100-315C	1450	103	28.6	23	73	7.5	11		272
125-100-400	1450	60	15.7	50	65	21	30	2.5	395
125-100-400	1450	100	26	50	65	21	30	2.5	395
125-100-400	1450	120	31.2	50	65	21	30	2.5	395
125-100-400A	1450	56.3	15.7	44	65	17.3	22	2.5	370.5
125-100-400A	1450	93.5	26	44	65	17.3	22	2.5	370.5
125-100-400A	1450	113	31.2	44	65	17.3	22	2.5	370.5
125-100-400B	1450	54.2	14.6	38	65	13.9	18.5	2.5	344.5
125-100-400B	1450	86.5	24	38	65	13.9	18.5	2.5	344.5
125-100-400B	1450	150	29.1	38	65	13.9	18.5	2.5	344.5
150-125-250	1450	120	33.3	20	81	13.5	18.5	3.0	260
150-125-250	1450	200	55.6	20	81	13.5	18.5	3.0	260
150-125-250	1450	240	66.7	20	81	13.5	18.5	3.0	260
150-125-250A	1450	113	31.2	17.5	81	11.1	15	3.0	243.5
150-125-250A	1450	187	52	17.5	81	11.1	15	3.0	243.5
150-125-250A	1450	225	62.5	17.5	81	11.1	15	3.0	243.5
150-125-250B	1450	105	29.1	15	81	8.75	11	3.0	225
150-125-250B	1450	173	48.1	15	81	8.75	11	3.0	225
150-125-250B	1450	209	58.2	15	81	8.75	11	3.0	225
150-125-315	1450	120	33.3	32	79	21.08	30	2.5	325
150-125-315	1450	200	55.6	32	79	21.08	30	2.5	325
150-125-315	1450	240	66.7	32	79	21.08	30	2.5	325
150-125-315A	1450	113	31.2	28	80	17.8	22	2.5	304
150-125-315A	1450	187	52	28	80	17.8	22	2.5	304
150-125-315A	1450	225	62.5	28	80	17.8	22	2.5	304
150-125-315B	1450	105	29.1	24	80	14.2	18.5	2.5	281.5
150-125-315B	1450	173	48.1	24	80	14.2	18.5	2.5	281.5
150-125-315B	1450	209	58.2	24	80	14.2	18.5	2.5	281.5
150-125-400	1450	120	33.3	50	75	36.3	45	2.8	399.5
150-125-400	1450	200	55.6	50	75	36.3	45	2.8	399.5
150-125-400	1450	240	66.7	50	75	36.3	45	2.8	399.5
150-125-400A	1450	113	31.2	44	75	29.9	37	2.8	374.5
150-125-400A	1450	187	52	44	75	29.9	37	2.8	374.5
150-125-400A	1450	225	62.5	44	75	29.9	37	2.8	374.5
150-125-400B	1450	105	29.1	38	75	24.1	30	2.8	348.5
150-125-400B	1450	173	48.1	38	75	24.1	30	2.8	348.5
150-125-400B	1450	209	58.2	38	75	24.1	30	2.8	348.5
200-150-250	1450	240	66.7	20	82	26.6	37	4.2	275
200-150-250	1450	400	111.1	20	82	26.6	37	4.2	275
200-150-250	1450	460	128	20	82	26.6	37	4.2	275
200-150-250A	1450	225	62.5	17.5	82	21.8	30	4.2	257.5
200-150-250A	1450	374	104	17.5	82	21.8	30	4.2	257.5
200-150-250A	1450	431	120	17.5	82	21.8	30	4.2	257.5
200-150-250B	1450	208	57.7	15	82	17.2	22	4.2	238
200-150-250B	1450	346	96.2	15	82	17.2	22	4.2	238
200-150-250B	1450	390	111	15	82	17.2	22	4.2	238
200-150-315	1450	240	66.7	32	82	42.5	55	3.5	346
200-150-315	1450	400	111.1	32	82	42.5	55	3.5	346
200-150-315	1450	460	128	32	82	42.5	55	3.5	346
200-150-315A	1450	225	62.5	28	82	35.4	45	3.5	325.5
200-150-315A	1450	374	104	28	82	35.4	45	3.5	325.5
200-150-315A	1450	431	120	28	82	35.4	45	3.5	325.5
200-150-315B	1450	208	57.7	24	82	27.9	37		301.5
200-150-315B	1450	346	96.2	24	82	27.9	37		301.5
200-150-315B	1450	398	111	24	82	27.9	37		301.5
200-150-400	1450	240	66.7	50	81	67.2	90	3.8	395
200-150-400	1450	400	111.1	50	81	67.2	90	3.8	395
200-150-400	1450	460	128	50	81	67.2	90	3.8	395
200-150-400A	1450	225	62.5	44	81	55.5	75	3.8	370.5
200-150-400A	1450	374	104	44	81	55.5	75	3.8	370.5
200-150-400A	1450	431	120	44	81	55.5	75	3.8	370.5
200-150-400B	1450	208	57.7	38	81	44.6	55	3.8	344.5
200-150-400B	1450	346	96.2	38	81	44.6	55	3.8	344.5
200-150-400B	1450	398	111	38	81	44.6	55	3.8	344.5

Recommend Products

CONTACT JIUJIANG

Send A Message

Telephone

+86 18167392360

Mailbox

sales@jpzxpumps.com

Address

No.16 Linwu Road, Oubei Street, Yongjia, Wenzhou, Zhejiang, China

Sitemap

CONTENTS

PRODUCT CATEGORY

CONTACT

About Us

Solution

New & Blog

Self-Priming Centrifugal Pumps

Industrial Water Pumps

Diesel Engine Pumps

View All Products

Tell: +86 18167392360

Address: No.16 Linwu Road, Oubei Street, Yongjia, Wenzhou, Zhejiang, China

Email: sales@jpzxpumps.com

LEGAL POLICY
