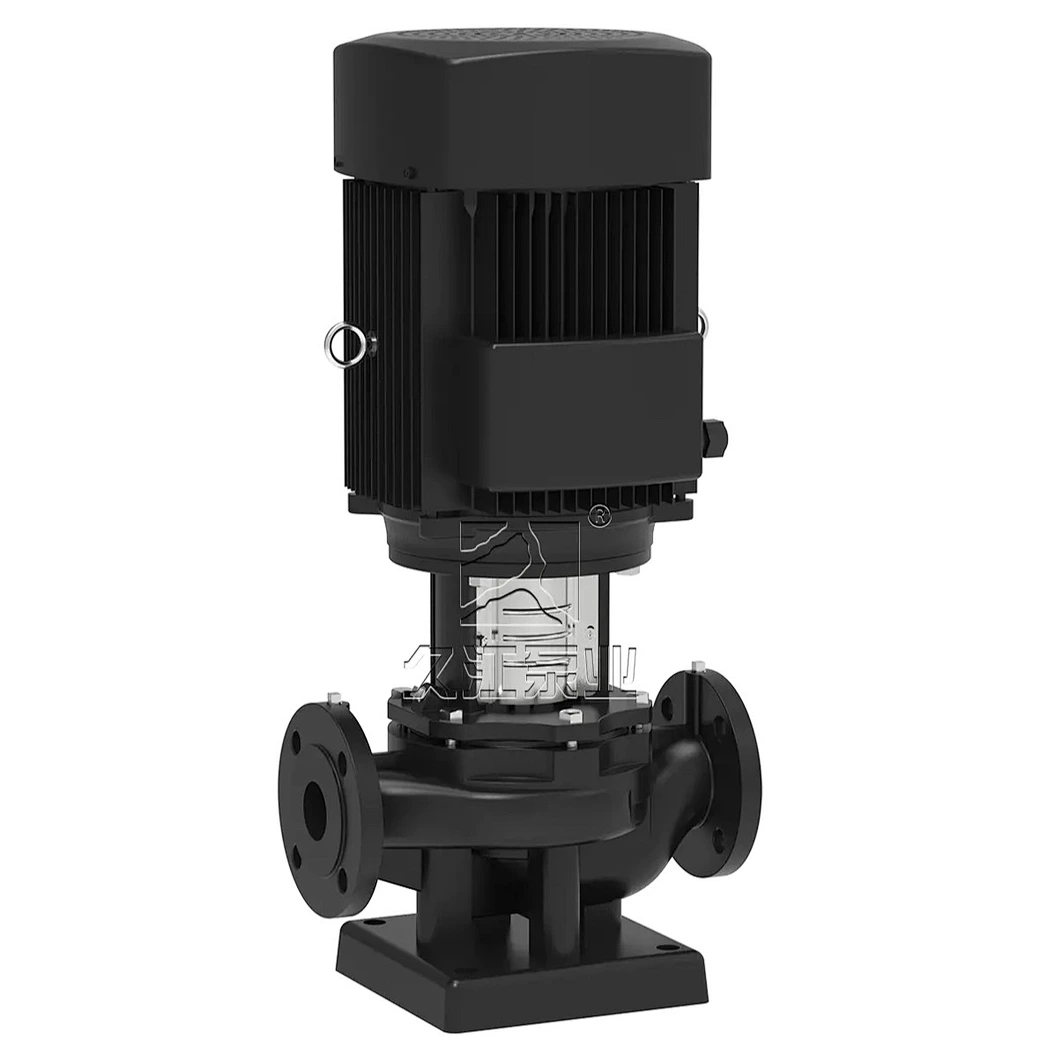

TD Vertical In-Line Centrifugal Pump

Model NO. TD Vertical In-Line Centrifugal Pump

Pump material: Cast Iron

Flow Range: 8 - 900 m³/h

Head Range: 9 - 83 m

Motor Power: 1.1 - 200 kW

Speed: 1450 r/min, 2960 r/min

Voltage: 220V / 380V / 415V / 440V / 460V

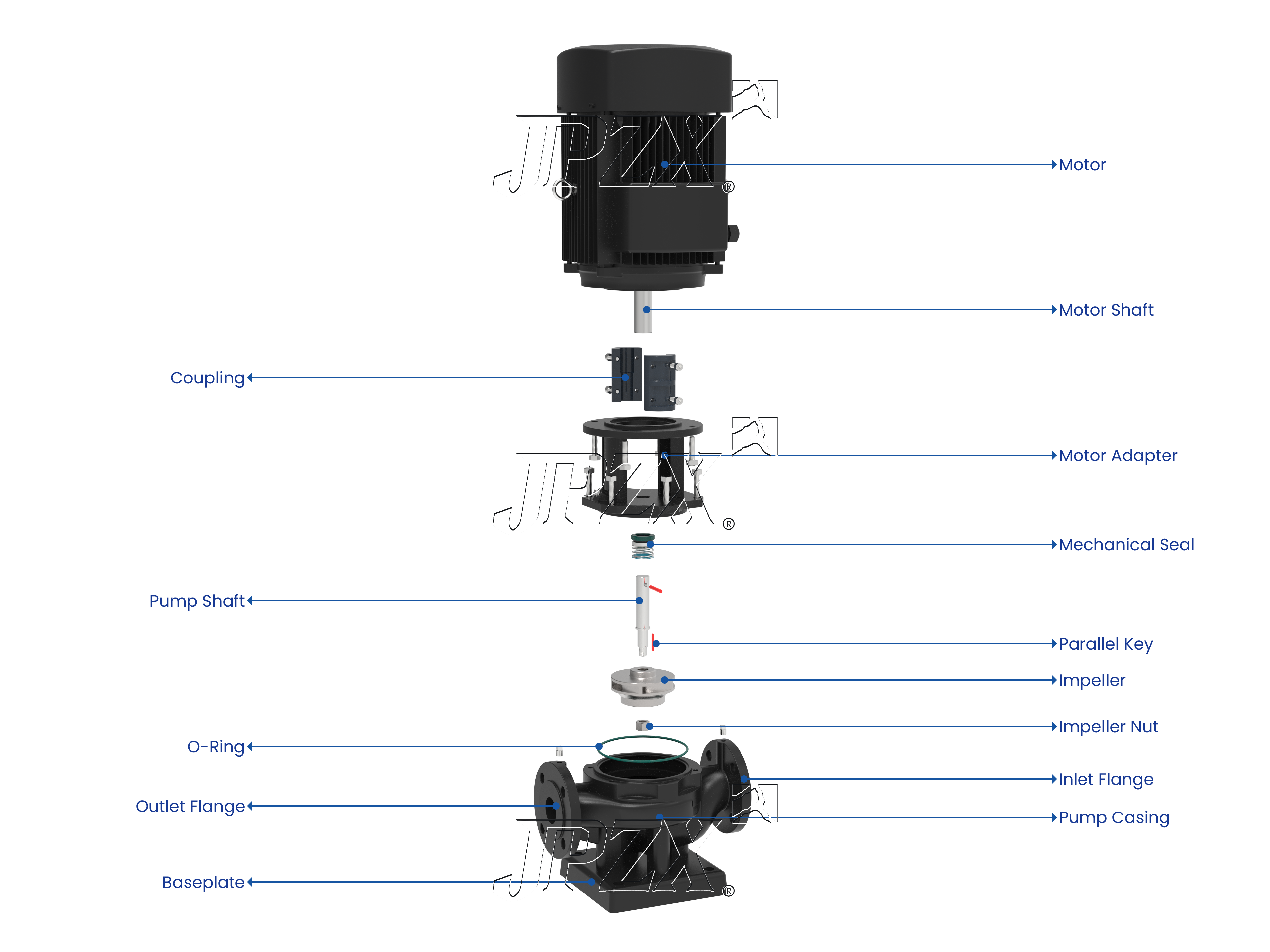

What is TD Vertical In-Line Centrifugal Pump？

The TD series is a heavy-duty single stage centrifugal pump engineered for efficient liquid circulation in industrial pipelines. Built as a high-performance centrifugal single stage pump, this vertical in-line unit incorporates a standard IEC motor and a precision mechanical seal for exceptional operational reliability. In industrial heating and HVAC systems, it frequently serves as a high-temperature circulator pump for boiler loops, handling clean, non-aggressive fluids with minimal wear.

Unlike conventional designs, this single stage centrifugal pump utilizes a top pull-out structure, permitting fast internal maintenance without disrupting connected pipework. For larger models (TD125 and TD150), both extended shaft and easy-dismantle options are available, while TD200 and above feature an easy-dismantle mechanism that allows mechanical seal replacement without removing the motor. Whether specified as a primary system pump or as a dedicated circulator pump for boiler feeds, this centrifugal single stage pump ensures continuous, trouble-free operation.

Applications

Designed to pump clean, thin, non-flammable liquids free of solid particles or fibrous matter, this versatile single stage centrifugal pump excels across various thermal and fluid transfer operations:

Boiler & Heating Systems: Performs reliably as a high-efficiency circulator pump for boiler circuits and district heating loops.
HVAC & Industrial Cooling: Functions as a compact centrifugal single stage pump for closed-loop air conditioning and chiller plant circulation.
Liquid Temperature Range: Rated for fluid delivery from -15°C to 110°C.
Maximum Working Pressure: Standard construction handles up to 12 bar (PN12); reinforced option supports up to 16 bar (PN16).

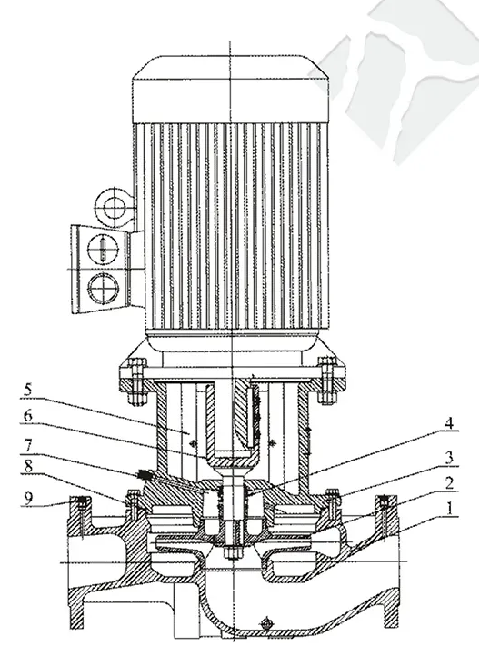

Sectional Drawing TD32~TD150 Extended Shaft

TD32 to TD150 Extended Shaft In-Line Pump Technical Cross-Section Drawing | JPZX

No.	Part Name	Material
1	Pump Casing	Cast Iron HT200
2	Impeller	Cast Iron / SS304 (HT200 / ZG07Cr17Ni9)
3	Pump Cover	Cast Iron HT200
4	Mechanical Seal	Graphite / Silicon Carbide
5	Wear Plate	SS304 (0Cr18Ni10)
6	Shaft	SS420 (20Cr13)
7	Air Release Assembly	SS304 (06Cr19Ni10)
8	O-Ring	NBR
9	Screw Plug	SS304 (06Cr19Ni10)

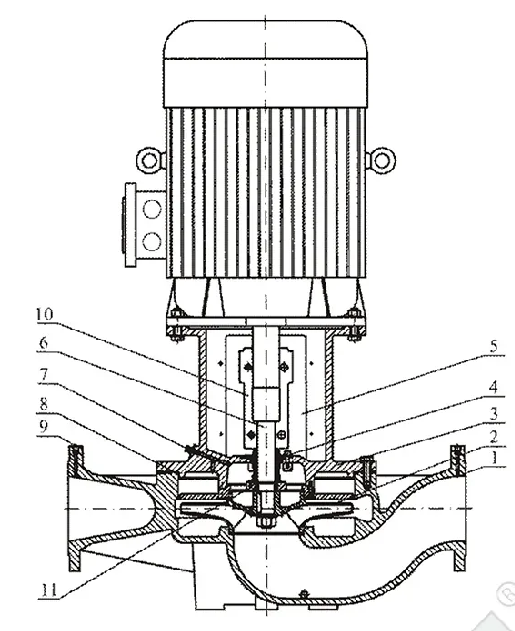

Sectional Drawing TD125~TD150 Easy-Dismantle Type

TD125 to TD150 Easy-Dismantle In-Line Centrifugal Pump Sectional Blueprint | JPZX

No.	Part Name	Material
1	Pump Casing	Cast Iron HT200
2	Impeller	Cast Iron / SS304 (HT200 / ZG07Cr19Ni9)
3	Pump Cover	Cast Iron HT200
4	Mechanical Seal	Graphite / Silicon Carbide
5	Wear Plate	SS304 (06Cr19Ni10)
6	Shaft	SS420 (20Cr13)
7	Air Release Assembly	SS304 (06Cr19Ni10)
8	O-Ring	NBR
9	Screw Plug	SS304 (06Cr19Ni10)
10	Coupling	Cast Steel ZG270-500
11	Bearing Ring	Cast Iron HT200

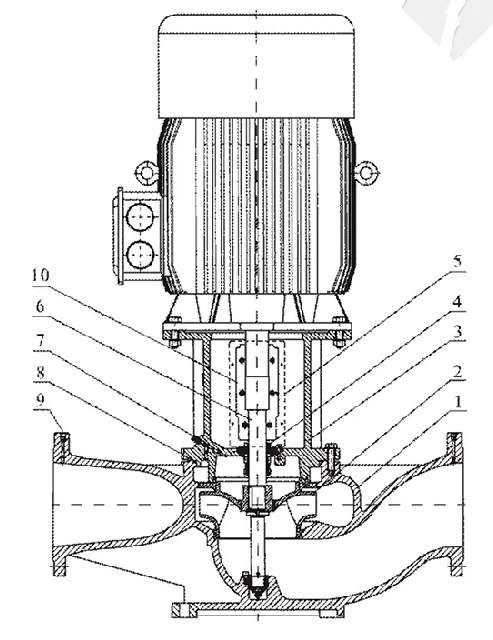

Sectional Drawing TD200~TD250 Easy-Dismantle Type

TD200 to TD250 High-Flow Easy-Dismantle Vertical Pump Engineering Sectional View | JPZX

No.	Part Name	Material
1	Pump Casing	Cast Iron HT200
2	Impeller	Cast Iron / SS304 (HT200 / ZG07Cr19Ni9)
3	Pump Cover	Cast Iron HT200
4	Mechanical Seal	Graphite / Silicon Carbide
5	Wear Plate	SS304 (06Cr19Ni10)
6	Shaft	SS420 (20Cr13)
7	Air Release Assembly	SS304 (06Cr19Ni10)
8	O-Ring	NBR
9	Screw Plug	SS304 (06Cr19Ni10)
10	Coupling	Cast Steel ZG270-500

No.	Model	Flow Rate (m³/h)	Head (m)	Speed (r/min)	Motor Power 1x220V P2 (kW)	Motor Power 3x380V P2 (kW)
1	TD32-18/2	8	18	2900	1.1	1.1
2	TD32-21/2	12.5	21	2900	1.5	1.5
3	TD32-25/2	12.5	25	2900	2.2	2.2
4	TD32-32/2	12.5	32	2900		3
5	TD32-38/2	12.5	38	2900		4
6	TD32-50/2	12.5	50	2900		5.5
7	TD40-16/2	12.5	16	2900	1.1	1.1
8	TD40-20/2	12.5	20	2900	1.5	1.5
9	TD40-18/2	20	18	2900	2.2	2.2
10	TD40-25/2	20	25	2900		3
11	TD40-30/2	25	30	2900		4
12	TD40-36/2	25	36	2900		5.5
13	TD40-48/2	25	48	2900		7.5
14	TD50-34/2	12.5	34	2900		3
15	TD50-38/2	12.5	38	2900		4
16	TD50-50/2	12.5	50	2900		5.5
17	TD50-58/2	12.5	58	2900		7.5
18	TD50-80/2	12.5	80	2900		11
19	TD50-12/2	16	12	2900	1.1	1.1
20	TD50-15/2	20	15	2900	1.5	1.5
21	TD50-18/2	25	18	2900	2.2	2.2
22	TD50-24/2	25	24	2900		3
23	TD50-28/2	30	28	2900		4
24	TD50-35/2	30	35	2900		5.5
25	TD50-40/2	35	40	2900		7.5
26	TD50-50/2	40	50	2900		11
27	TD50-60/2	50	60	2900		15
28	TD50-70/2	50	70	2900		18.5
29	TD50-81/2	50	81	2900		22
30	TD65-36/2	25	36	2900		5.5
31	TD65-48/2	25	48	2900		7.5
32	TD65-15/2	30	15	2900	2.2	2.2
33	TD65-19/2	30	19	2900		3
34	TD65-22/2	40	22	2900		4
35	TD65-30/2	40	30	2900		5.5
36	TD65-34/2	50	34	2900		7.5
37	TD65-40/2	50	40	2900		11
38	TD65-50/2	50	50	2900		15
39	TD65-61/2	50	61	2900		18.5
40	TD65-67/2	50	67	2900		22
41	TD65-83/2	50	83	2900		30
42	TD80-13/2	50	13	2900		3
43	TD80-18/2	50	18	2900		4
44	TD80-22/2	50	22	2900		5.5
45	TD80-28/2	50	28	2900		7.5
46	TD80-40/2	50	40	2900		11
47	TD80-48/2	50	48	2900		15
48	TD80-30/2	80	30	2900		11
49	TD80-38/2	80	38	2900		15
50	TD80-47/2	80	47	2900		18.5
51	TD80-54/2	80	54	2900		22
52	TD80-67/2	80	67	2900		30
53	TD100-9/2	50	9	2900	2.2	2.2
54	TD100-15/2	60	15	2900		4
55	TD100-17/2	80	17	2900		5.5
56	TD100-22/2	80	22	2900		7.5
57	TD100-27/2	100	27	2900		11
58	TD100-33/2	100	33	2900		15
59	TD100-40/2	100	40	2900		18.5
60	TD100-48/2	100	48	2900		22
61	TD100-52/2	130	52	2900		30
62	TD125-11/4	120	11	1450		5.5
63	TD125-14/4	120	14	1450		7.5
64	TD125-18/4	160	18	1480		11
65	TD125-22/4	160	22	1480		15
66	TD125-28/4	160	28	1480		18.5
67	TD125-32/4	160	32	1480		22
68	TD125-40/4	160	40	1480		30
69	TD125-50/4	160	50	1480		37
70	TD150-12.5/4	200	12.5	1480		11
71	TD150-17/4	200	17	1480		15
72	TD150-21/4	200	21	1480		18.5
73	TD150-25/4	200	25	1480		22
74	TD150-33/4	200	33	1480		30
75	TD150-40/4	200	40	1480		37
76	TD150-50/4	200	50	1480		45
77	TD200-15/4	300	15	1480		18.5
78	TD200-18/4	300	18	1480		22
79	TD200-24/4	300	24	1480		30
80	TD200-30/4	300	30	1480		37
81	TD200-35/4	300	35	1480		45
82	TD200-44/4	300	44	1480		55
83	TD200-53/4	400	53	1480		75
84	TD200-12.5/4	400	12.5	1480		22
85	TD200-20/4	400	20	1480		30
86	TD200-23/4	400	23	1480		37
87	TD200-27/4	400	27	1480		45
88	TD200-32/4	400	32	1480		55
89	TD200-43/4	400	43	1480		75
90	TD200-50/4	500	50	1480		90
91	TD250-15/4	500	15	1480		30
92	TD250-18/4	500	18	1480		37
93	TD250-21/4	500	21	1480		45
94	TD250-27/4	500	27	1480		55
95	TD250-36/4	500	36	1480		75
96	TD250-44/4	500	44	1480		90
97	TD250-53/4	500	53	1480		110
98	TD250-12.5/4	630	12.5	1480		30
99	TD250-14/4	630	14	1480		37
100	TD250-17/4	630	17	1480		45
101	TD250-20/4	630	20	1480		55
102	TD250-26/4	630	26	1480		75
103	TD250-32/4	630	32	1480		90
104	TD250-40/4	630	40	1480		110
105	TD250-50/4	630	50	1480		132
106	TD300-15/4	900	15	1480		55
107	TD300-20/4	900	20	1480		75
108	TD300-25/4	900	25	1480		90
109	TD300-30/4	900	30	1480		110
110	TD300-35/4	900	35	1480		132
111	TD300-44/4	900	44	1480		160
112	TD300-55/4	900	55	1480		200
